Page 96
NetBootLoader
VMP3
Page 5 - 12
© 2005 Kontron Modular Computers GmbH
ID 29230, Rev. 01
29230
.01.UG.VC.050727/091439
P R E L I M I N A R Y

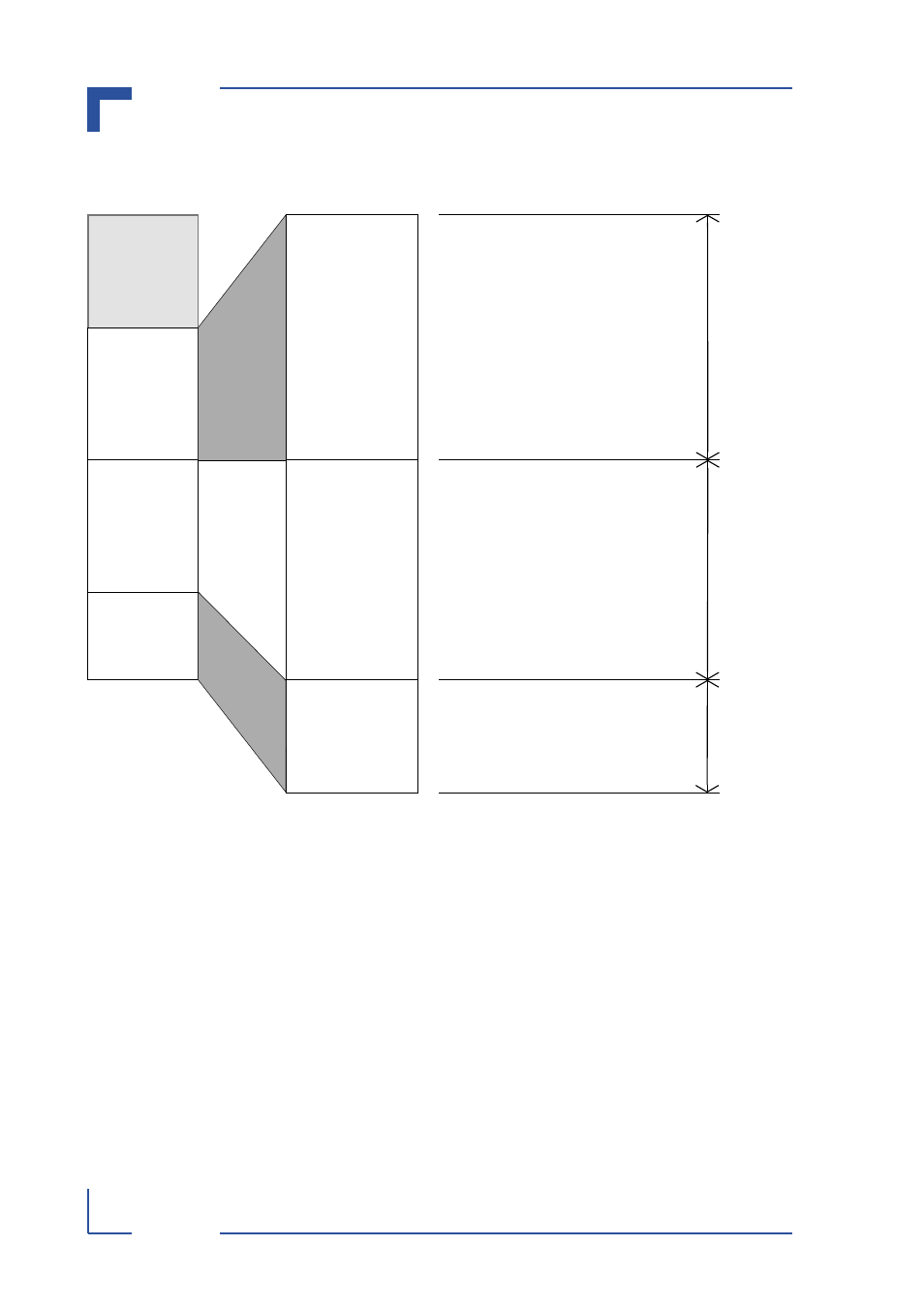

Figure 5-1: Flash Addressing Scheme - VMP3
To understand the above concept assume for example that the onboard soldered Flash is an
16 MB device, and the application image is 4 MB.
Then:
4 MB application size = 0x0040 0000
application size + 0x7 = 0x0040 0007
0x0005 FFFF + application size + 0x7 = 0x0046 0006
0xZZZZ ZZZZ = 0x00FF FFFF
Addressing of off-board Flash would begin with 0x0100 0000.
VMP3 Flash
Flash Layout (First Bank)
External
Flash
(if installed)
Configuration Data,
File System, etc.
0xZZZZ ZZZZ
The size of this area is dependent on the
size of the first Flash and the area
occupied by the Application Image and
the NetBootLoader
0x0005 FFFF + application image + 0x7
Application Image
Size of original application image + 0x7
0x0005 FFFF
NetBootLoader
0x0000 0000
