Page 85: B.3.1, B.3.2, Vsbc-32 serial interface piggybacks
VSBC-32
Serial Interface Piggybacks
ID 21168, Rev. 04
Page B - 5
©
PEP Modular Computers GmbH
B.3 SI-10B5
The SI-10B5 is a physical AUI interface to the 68EN360 Controller chip.
B.3.1
Specifications
B.3.2
Front Panel View and Pinout

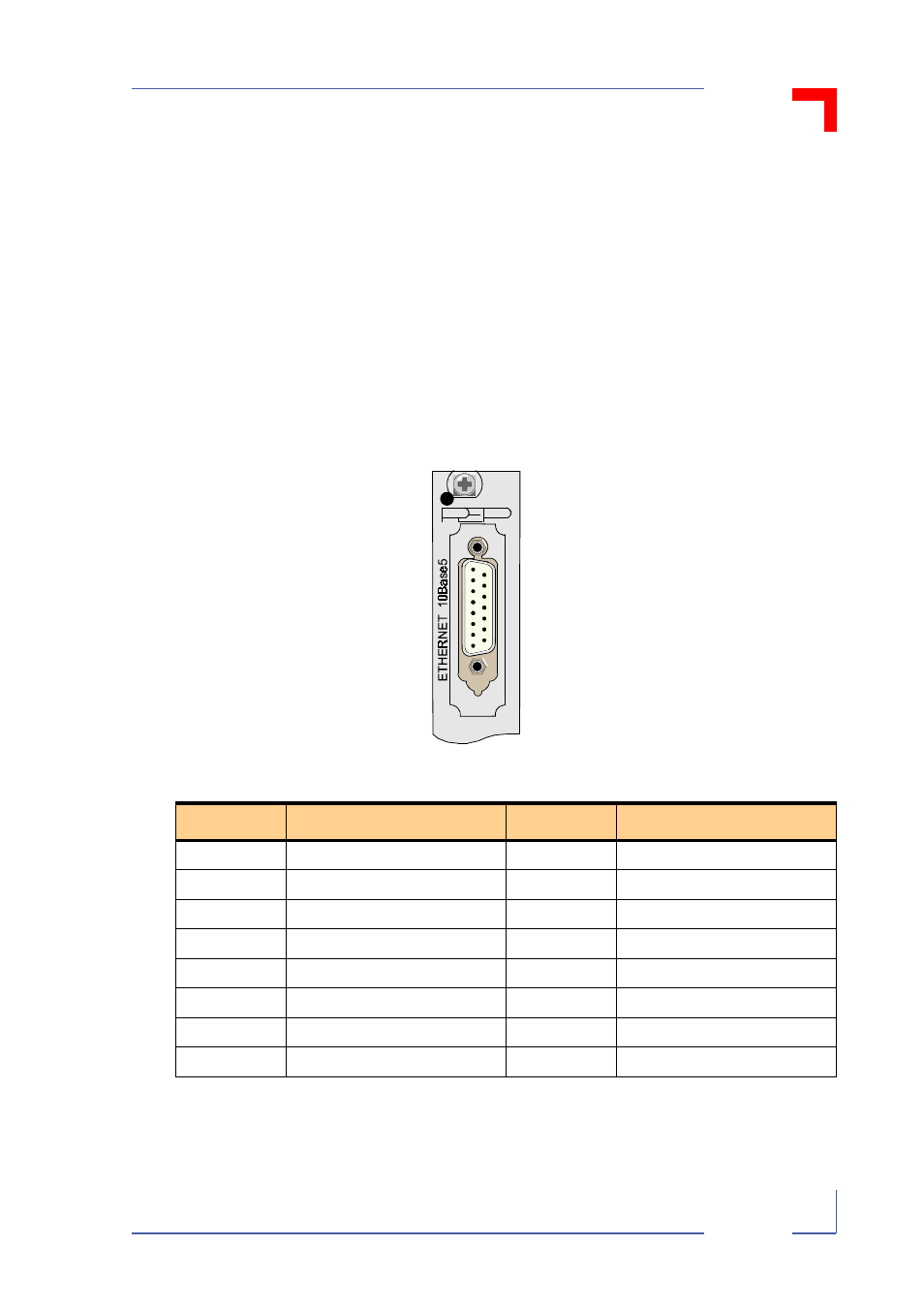

Figure B-2: SI-10B5 Serial Interface Piggyback
*
The SI-10B5 requires an external +12V from the base board. For further details please refer to the
relevant base board manual
N/C
Not connected
On-board termination:
Max. Baudrate
None
10Mbit/s according toEthernet specification
Table B-2: SI-10B5 Connector Pinout
Pin
Signal
Pin
Signal
1
Control IN circuit shield
9
Control IN circuit shield
2
Control IN circuit A
10
Data OUT circuit B
3
Data OUT circuit A
11
Data OUT circuit shield
4
Control IN circuit shield
12
Data IN circuit B
5
Data IN circuit A
13
+12V*
6
Voltage common
14
GND
7
N/C
15
N/C
8
N/C
Pin 1
Pin 8
Pin 9
Pin 15
15-pin D-Sub
female connector
