D.2.2, Vsbc-32 os-9 cabling – Kontron VSBC-32 User Manual
Page 105
VSBC-32
OS-9 Cabling
ID 21168, Rev. 04
Page D - 7
©
PEP Modular Computers GmbH

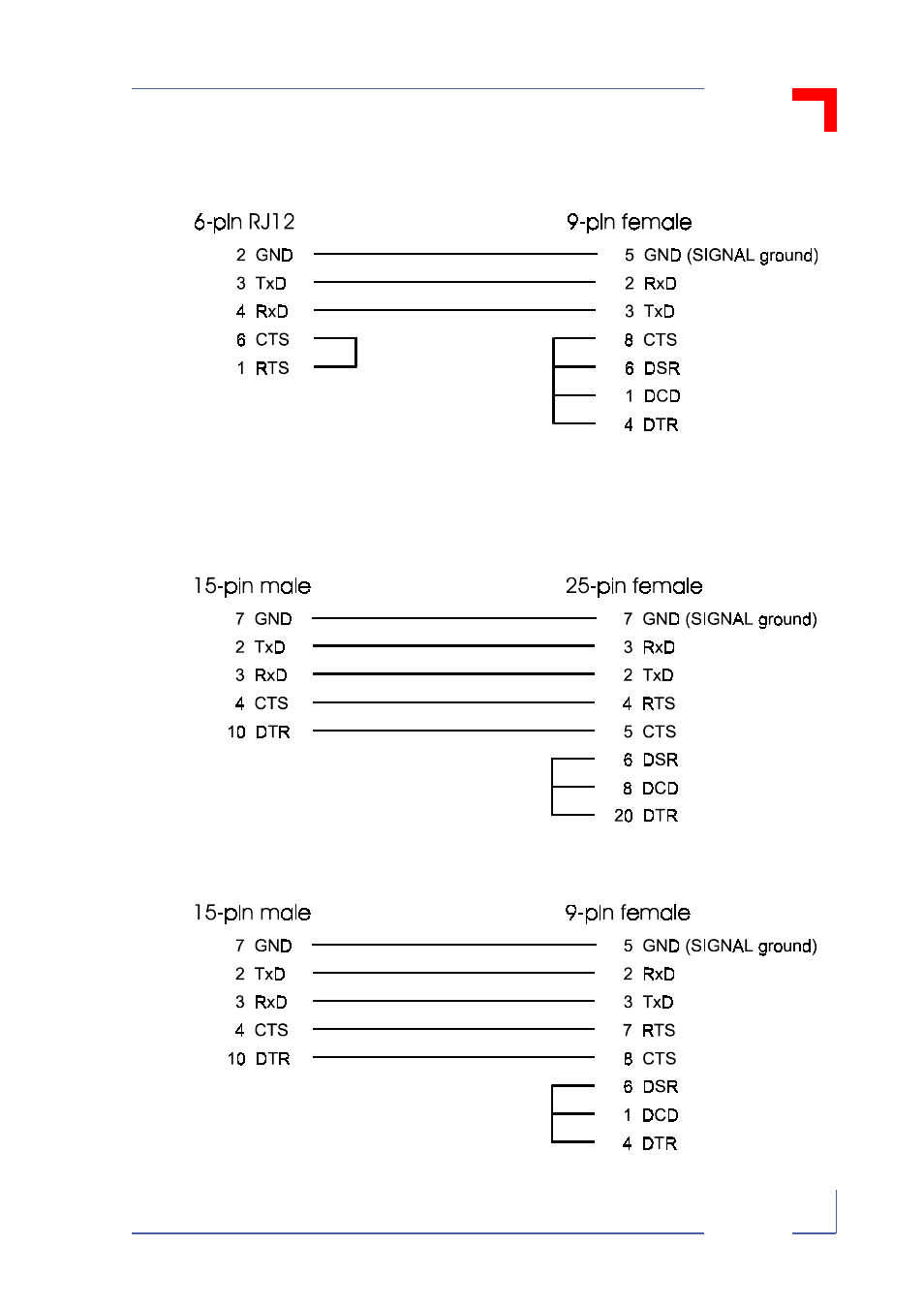

Figure D-11: 6-pin RJ12 Connector on OS-9 Side, 9-pin Connedctor on PC Side
D.2.2
Hardware Handshake (Select RTS/CTS Handshake on the PC Side)
Figure D-12: 15-pin Connector on OS-9 Side, 25-pin Connector on PC Side
Figure D-13: 15-pin Connector on OS-9 Side, 9-pin Connector on PC Side
