D. os-9 cabling, D.1 os-9 system – terminal, D.1.1 software (xon/xoff) or no handshake – Kontron VSBC-32 User Manual
Page 101: D.1.1, Vsbc-32 os-9 cabling
VSBC-32
OS-9 Cabling
ID 21168, Rev. 04
Page D - 3
©
PEP Modular Computers GmbH
D. OS-9 Cabling
This appendix outlines the connection definitions of OS-9 systems to various outside
media.
D.1 OS-9 System – Terminal
D.1.1
Software (XON/XOFF) or No Handshake

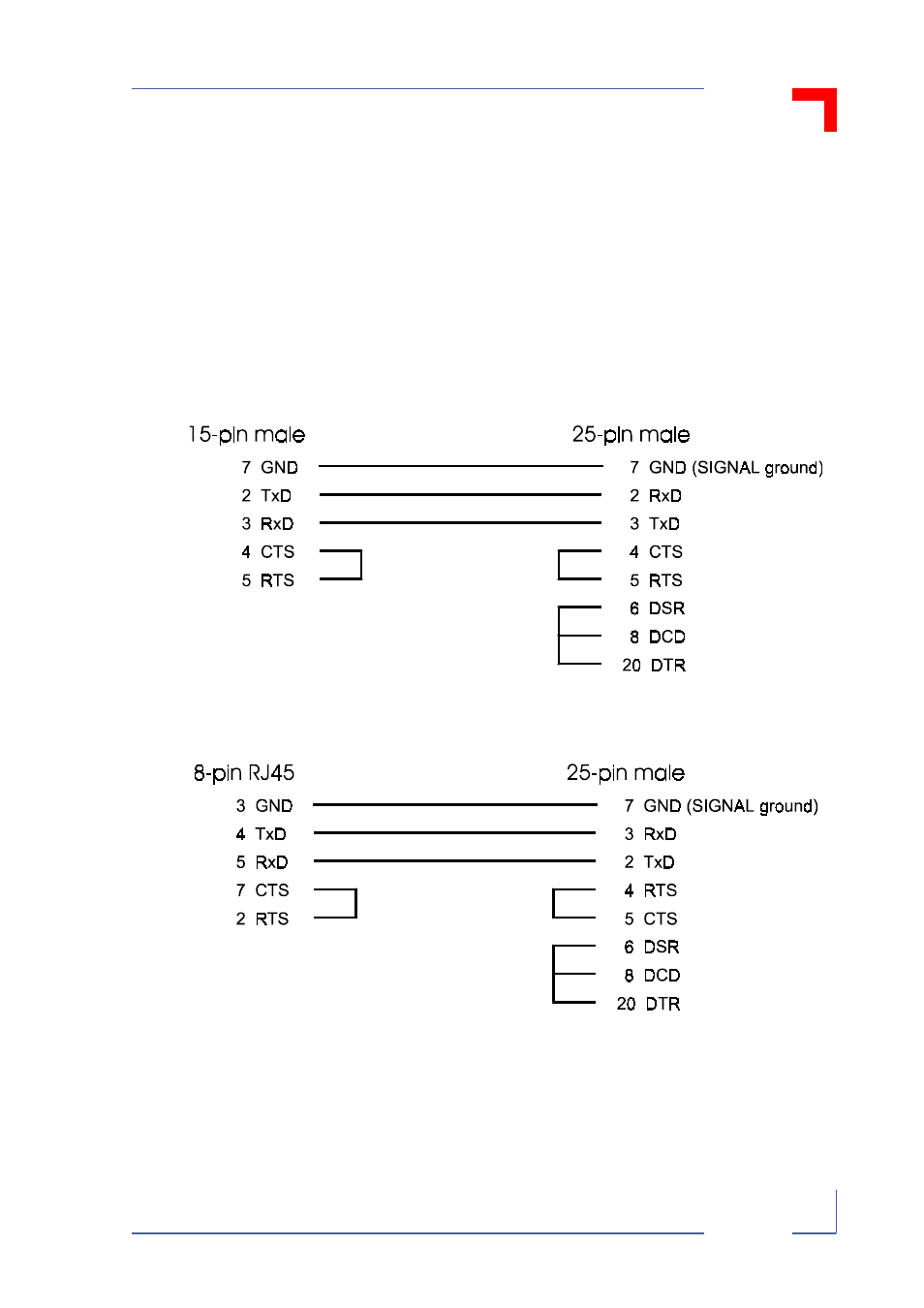

Figure D-1: 15-Pin Connector on OS-9 Side
Figure D-2: 8-Pin RJ45 Connector on OS-9 Side (SMART I/O)
