Ets lindgren – ETS-Lindgren 2181 Turntable User Manual
Page 40
14
13
22
26
23
19 20 30
7 32
6
24
12
2
11
8
1
10
29
31
28
28
31
33
9 27
16
15
17
18
3 25
5
34
21
4
CASTER SPACER STRUT
REF ONLY
GAUGE PLATE ASSY
REF ONLY
BASE PLATE
REF ONLY
BEARING REF ONLY
ITEM#
QTY
PART#
DESCRIPTION
35
1
920250 LABEL,ETS-LINDGREN,3.75 X 1.75,WHT BKGRD(N/S)
34
8
910930 SCREW,10-32 X 3/8,PHIL,FLAT,SS
33
18
910923 BOLT,1/2-13 X 3,SH,FLAT,SS
32
156
910714 SCREW,6-32 X 1/4,PHIL,BIND,TAPTITE
31
96
910709 SCREW,5/16-18 X 1-1/2,SH,FLAT,STL,SS
30
96
910652 SCREW FH PHL ZN TAPTITE 6-32 X 3/8
29
24
910536 SCREW,1/2-13 X 1 1/2,SH,FLAT,ZN
28
68
910373 SCREW,5/16-18 X 1,SH,FLAT,SS
27
8
910368 SCREW,5/16-18 X 3/4,FLAT,SH,ZN
26
96
910367 NUT,1/2-13,HEX,SERRATED FLANGE,ZN
25
4
910241 SCREW,8-32 X 3/8,PHIL,FLAT,SS
24
24
910173 SCREW,6-32 X 3/8,PHIL,FLAT,SS
23
12
891125 CASTER 12" WHEEL,RIGID,15.50" HEIGHT
22
96
890238 SCREW LEVELING 1/2-13 X 3 SQ HD CU
21
2
880352 PIN,CLEVIS,SS,1/2"O.D. X 2.0" LONG
20
8
760275 ASSY,BRUSH/HOLDER,4',TT CONTACT BRUSH
19
6
705434 FLOOR FLANGE,TURNTABLE,3.0m,AL
18
1
112350 TOP,SECTION 4,TURNTABLE,2181-3.0
17
1
112349 TOP,SECTION 3,TURNTABLE,2181-3.0
16
1
112348 TOP,SECTION 2,TURNTABLE,2181-3.0
15
1
112347 TOP,SECTION 1,TURNTABLE,2181-3.0
14
24
112343 FLOOR PLATE,OUTER,TURNTABLE,2181-3.0
13
12
112342 SPACER,OUTER,CASTER,TURNTABLE,2181-3.0
12
6
112341 STIFFENER,OUTER,TURNTABLE,2181-3.0
11
6
112340 TIE PLATE,OUTER,TURNTABLE,2181-3.0
10
6
112339 TOP,OUTER,TURNTABLE,2181-3.0
9
1
112215 COVER,CENTER,TOP,2181 TURNTABLES
8
4
112204 TIE PLATE,BASE PLATE,2181 TURNTABLE
7
12
112134 CONTACT STRIP,BRUSH,TURNTABLE
6
12
110405 CONTACT FLAT,BRUSH,TURNTABLE
5
6
110059 PLUG,HOLE,TABLE TOP
4
18
109960 SPACER,2" OD X .51 ID X 1.50
3
1
108925 COVER,ACCESS
2
12
105813 TAB,TOP,2087
1
12
105053 PLATE,DRIVE,2081-2M/4M

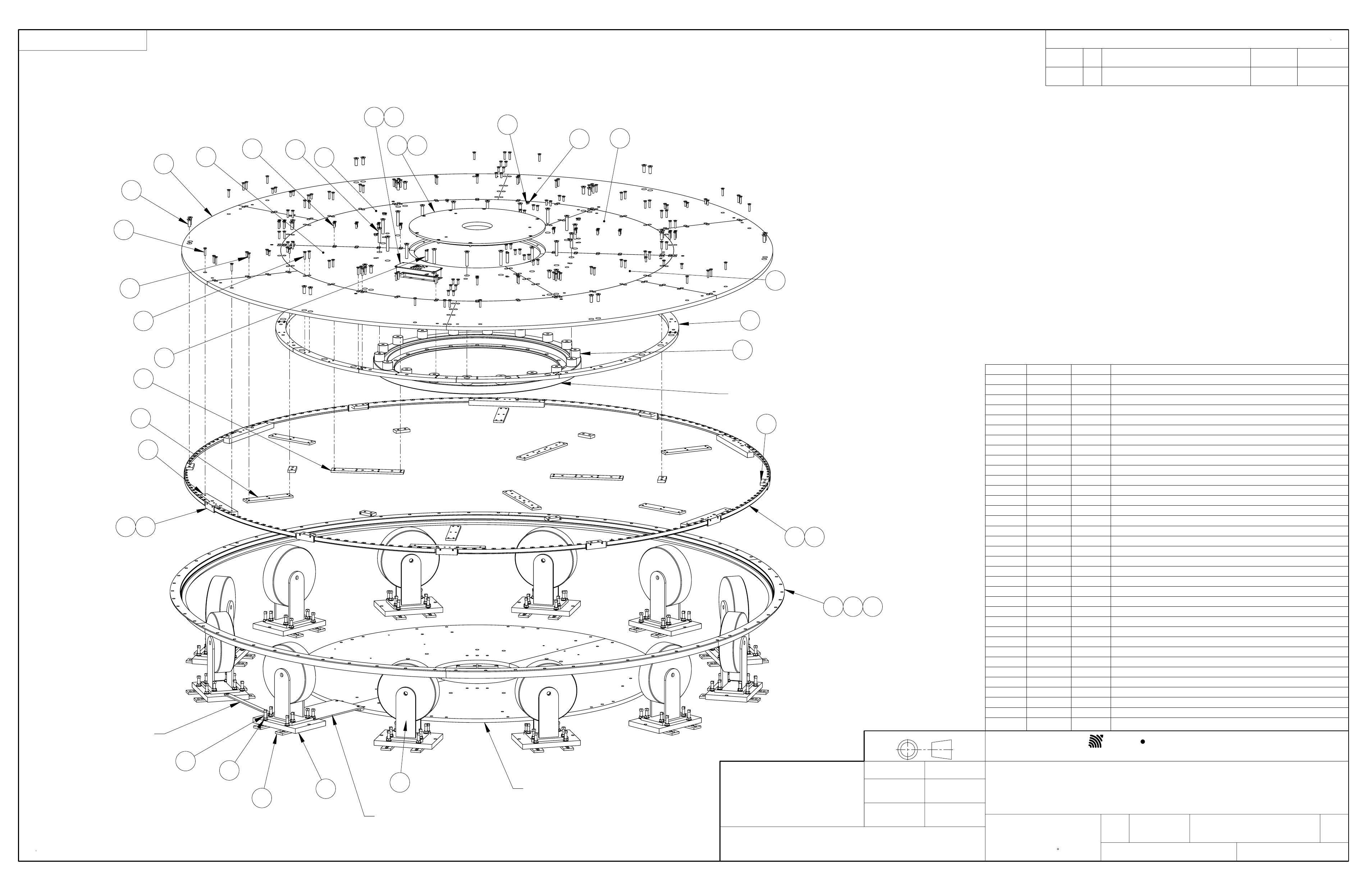

SUB-ASSY,TOP,TURNTABLE,2181-3.0
1:8
112337
1
1
1
9/10/07
X.XX
X.XXX
.005
.015
.5
NONE
REF DRAWING
ECN
REV
APPROVED
REVISIONS
DESCRIPTION
DATE
DO NOT SCALE DRAWING
ETS LINDGREN
SIZE
THIRD ANGLE PROJECTION
ENGINEERING
INITIAL
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER
FINISH
TOLERANCES ARE:
DECIMALS
±
±
±
ANGLES
DRAFTING
PERMISSION OF ETS LINDGREN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
WITHOUT EXPRESS WRITTEN
DOCUMENT, WHOLE OR IN PART,
DATE
TITLE
OF
SHEET
DWG. NO.
An ESCO Technologies Company
SCALE
D
TM
REV.
1
INITIAL BUILD
-
RBG
