Ets lindgren – ETS-Lindgren 2181 Turntable User Manual
Page 37
5
25
21
22
15
26
1 30
8
27
28
20
18
4
32
3
7
2
19
17
16
31
29
6
24 23
13
14
24 23
27
11
10
12
SPACERS SHOWN
FOR REF ONLY,
PART OF SHIPPING KIT
SEE NOTE 1
BREATHER PLUG ON GEARBOX TO BE RELOCATED
1.
TO TOP OF GEARBOX
9 30 34
34
33 34
30 34
32 34
34
ITEM#
QTY
PART#
DESCRIPTION
43
1
920192
LABEL,WARNING,GEARS BELOW TURNTABLE (N/S)
42
1
920122
LABEL,SAFETY,TURNTABLE (N/S)
41
1
398797
WIRING DIAGRAM,2187/2181 (N/S)
40
24
890983
SLEEVING,SLIT-CONVOLUTED,PE,1/4" ID (N/S)
39
4
708041
FIBER OPTIC CABLE LIMIT SWITCH 6.5M (N/S)
38
1
675294
CABLE,ENCODER,8 METER SHIELDED (N/S)
37
1
920228
LABEL,EQUIPMENT CHECKED (CAL) (N/S)
36
1
890191
CONN 90DEG CONDUIT FLX (N/S)
35
25
890192
CONDUIT,FLEX 1/2" RF SHIELDED (N/S)
34
.01
920081
LOCTITE THREAD LOCKING #242 31 50Ml (N/S)
33
4
930999
BOLT,M16 X 60,HEX,ZN
32
10
910659
SCREW,M16 X 2.00 X 50mm,FLAT,SOCKET,BLK
31
10
910573
BOLT,5/8-11 X 2-1/2,HEX,GR5,ZN
30
14
910572
SCREW,5/8-11 X 2,SH,FLAT,STL,ZN
29
10
910539
WASHER,5/8,LOCK,STL,ZN,SPLIT
28
4
910456
WASHER,1/4,LOCK,SS,SPLIT
27
7
910436
BOLT,1/4-20 X 1/2,HEX,SS
26
8
910405
BOLT,3/8-16 X 1,HEX,GR5,ZN
25
48
910367
NUT,1/2-13,HEX,SERRATED FLANGE,ZN
24
8
910244
SCREW,8-32 X 3/8,PHIL,BIND,SS
23
8
910228
WASHER,#8,LOCK,SS,SPLIT
22
6
891125
CASTER 12" WHEEL,RIGID,15.50" HEIGHT
21
48
890238
SCREW LEVELING 1/2-13 X 3 SQ HD CU
20
1
880323
GEARBOX,SEW EURODRIVE,180:1,220V
19
1
880322
PINION,16T,3DP
18
1
880176
COLLAR SHAFT 2.375"
17
1
880174
SHAFT LOCK,KEYLESS,2 3/8 DIA
16
1
880125
BEARING,L6-37E9Z ROTEK
15
2
112204
TIE PLATE,BASE PLATE,2181 TURNTABLE
14
1
112203
BASE PLATE,LIMIT SWITCH,2181 TURNTABLE
13
1
112202
MOUNT,LIMIT SWITCH,2181 TURNTABLE
12
6
112201
SPACER,CASTER,2181 TURNTABLE
11
1
112200
BASE PLATE,GEARBOX,2181 TURNTABLE
10
1
112199
BASE PLATE,DRIVE BOX,2181 TURNTABLE
9
1
112198
SUPPORT,BEARING/GEARBOX
8
1
111401
DRIVE,TURNTABLE,2181
7
1
111373
MOUNT,BEARING/GEARMOTOR,2181 TT
6
1
108758
ASSY,MECHANICAL LIMIT SWITCH,MOTORBASE
5
6
106789
FLOOR PLATE SPACER 2081
4
1
103675
BLOCK,G-BOX LOWER,2081
3
1
103674
SPACER,UPPER 2081
2
1
103673
SHAFT,DRIVE,2081
1
5
103667
BEARING BLOCK,2081

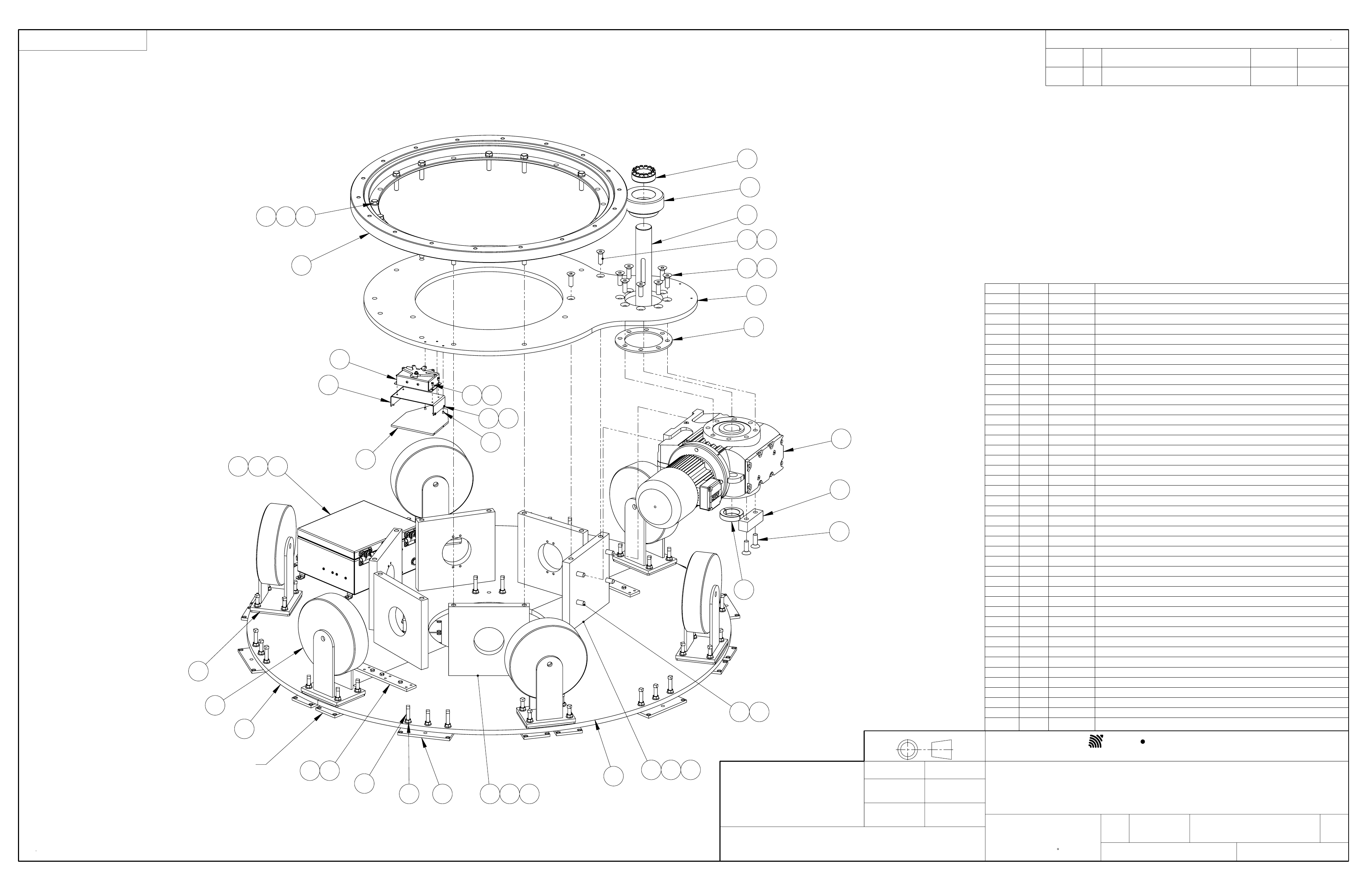

TURNTABLE,2181-2.0
1:6
112195
1
1
1
7/24/07
X.XX
X.XXX
.005
.015
.5
NONE
REF DRAWING
ECN
REV
APPROVED
REVISIONS
DESCRIPTION
DATE
DO NOT SCALE DRAWING
ETS LINDGREN
SIZE
THIRD ANGLE PROJECTION
ENGINEERING
INITIAL
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER
FINISH
TOLERANCES ARE:
DECIMALS
±
±
±
ANGLES
DRAFTING
PERMISSION OF ETS LINDGREN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
WITHOUT EXPRESS WRITTEN
DOCUMENT, WHOLE OR IN PART,
DATE
TITLE
OF
SHEET
DWG. NO.
An ESCO Technologies Company
SCALE
D
TM
REV.
1
INITIAL BUILD
-
RBG
