Page 15
15

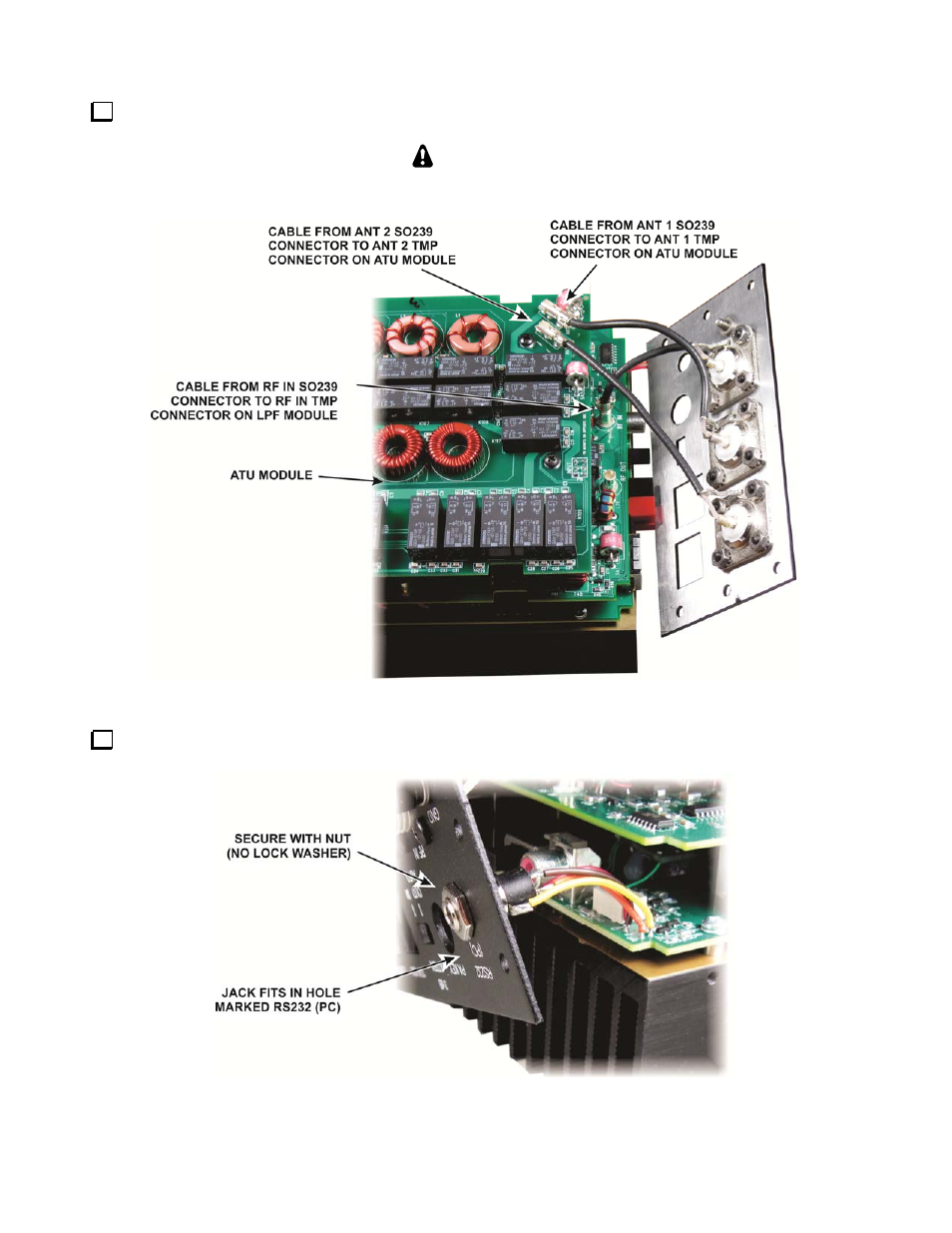

Connect the cables with the TMP connectors on the rear panel to the LPF and ATU module pc boards as
shown in Figure 12.
CAUTION
Failure to properly connect the cables may result in damage to your KXPA100.
Figure 12. Connecting Rear Panel Cables to the LPF and ATU PC Boards.
Pass the small jack through the hole marked
RS232 (PC)
on the rear panel and secure it with the hex nut
your removed earlier (see Figure 13).
Figure 13. Mounting the RS232 Connector in the Rear Panel.
