Elecraft KXAT100 Installation Manual User Manual
Page 14
14
On the rear panel that you removed earlier, remove the hole plug from the ANT 2 opening. The plug has
small parts that latch it against the inside surface of the rear panel. Squeeze them so they will slip through the
opening to release the plug.
Locate the envelope containing the SO-239 connector with a 4” (10.2 cm) and install it in the
ANT 2
opening on the rear panel as shown in Figure 11.

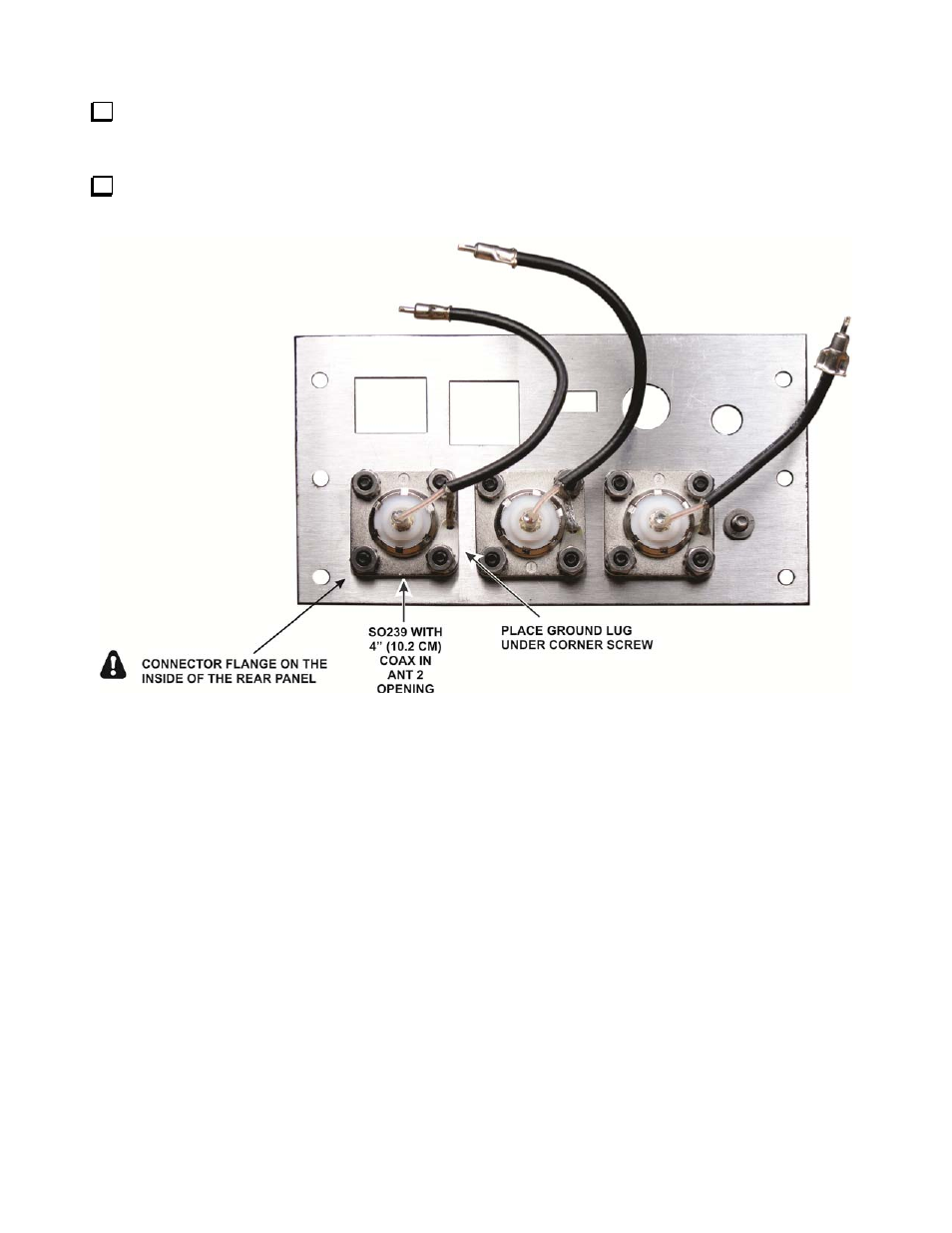

Figure 11. Installing the
ANT 2
Connector in the Rear Panel.
