PAGE 48

[1" Glazing]

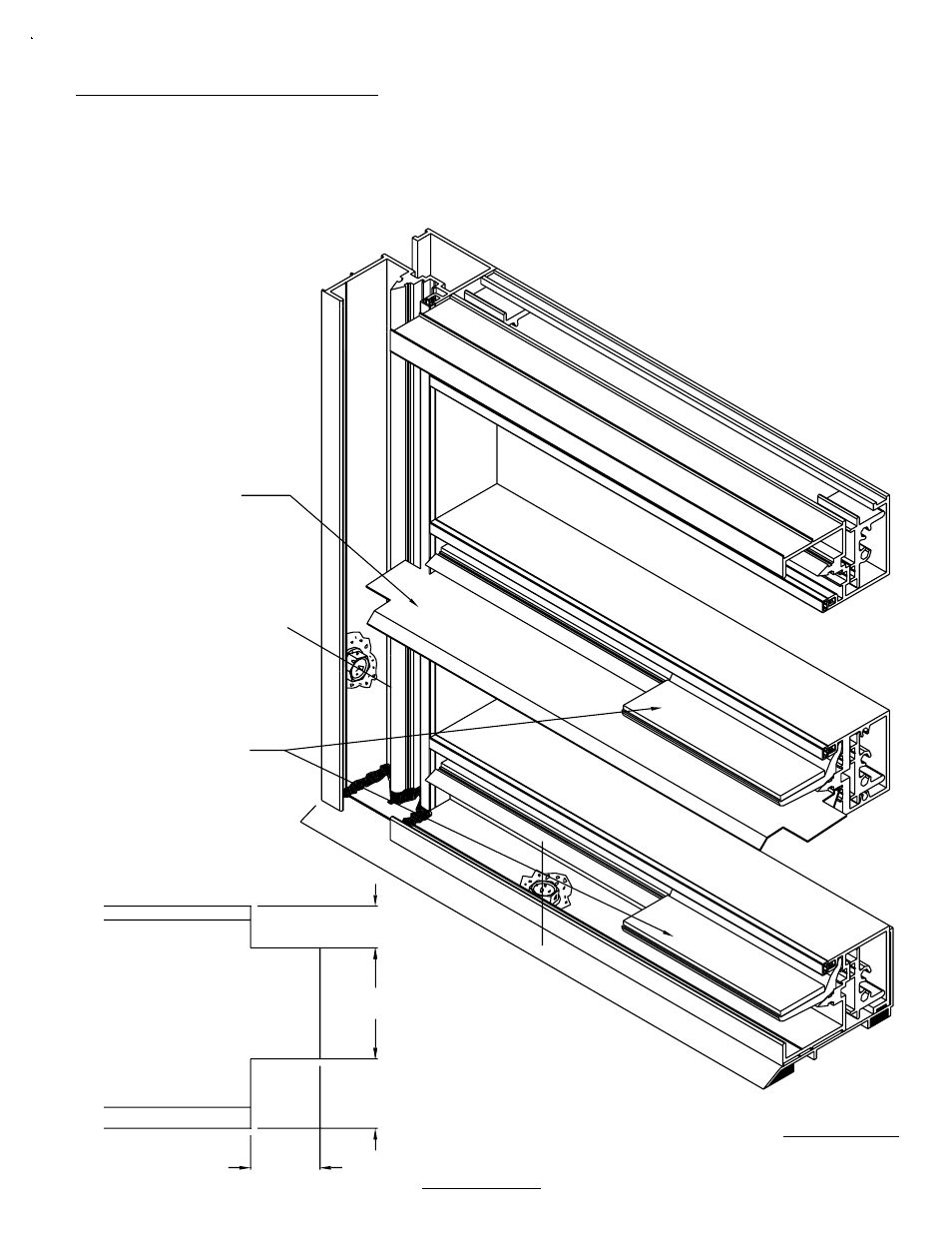

FIG. # 45

WATER

OF WATER DEFLECTOR

NOTCH EACH END

DEFLECTOR

.375

SETTING

BACK

1.000

.625

.625

FRONT

CHAIR/BLOCK

SETTING BLOCKS
SHOULD BE LOCATED

AT QUARTER POINTS

INSTALLATION OF WATER DEFLECTOR AND

SETTING CHAIR / BLOCK

NOTCH EACH END

OF WATER DEFLECTOR

LENGTH OF WATER DEFLECTOR

EQUALS D.L.O. PLUS 1 1/4".

FIG. # 46

JDA 10/2000

SECTION VIII C -

SCREW SPLINE / SHEAR BLOCK

CONT.

INSTALLATION
