Linx Installation for Model 424 Automotive Dynamometers
4 2 4 L I N X I N S T A L L A T I O N
Drive Pulley Installation
16
4 The outer face of the pulley should be approximately 10-13/16 inches from the
face of the inner plate. Slowly tighten the bolts until the hub starts to pull into the
pulley, checking that it is approximately 10-13/16 inches from the inner plate
before the pulley is locked on the shaft.
5 Tighten the bolts by working around the bushing until none of the bolts will turn
at a torque wrench setting of 75 ft.-lb. The pulley should have moved out to
approximately 11 inches from the face of the inner plate.
Note: The measurement of 11 inches is not critical; however, this measurement
should be the same on both the moveable and stationary dynos.

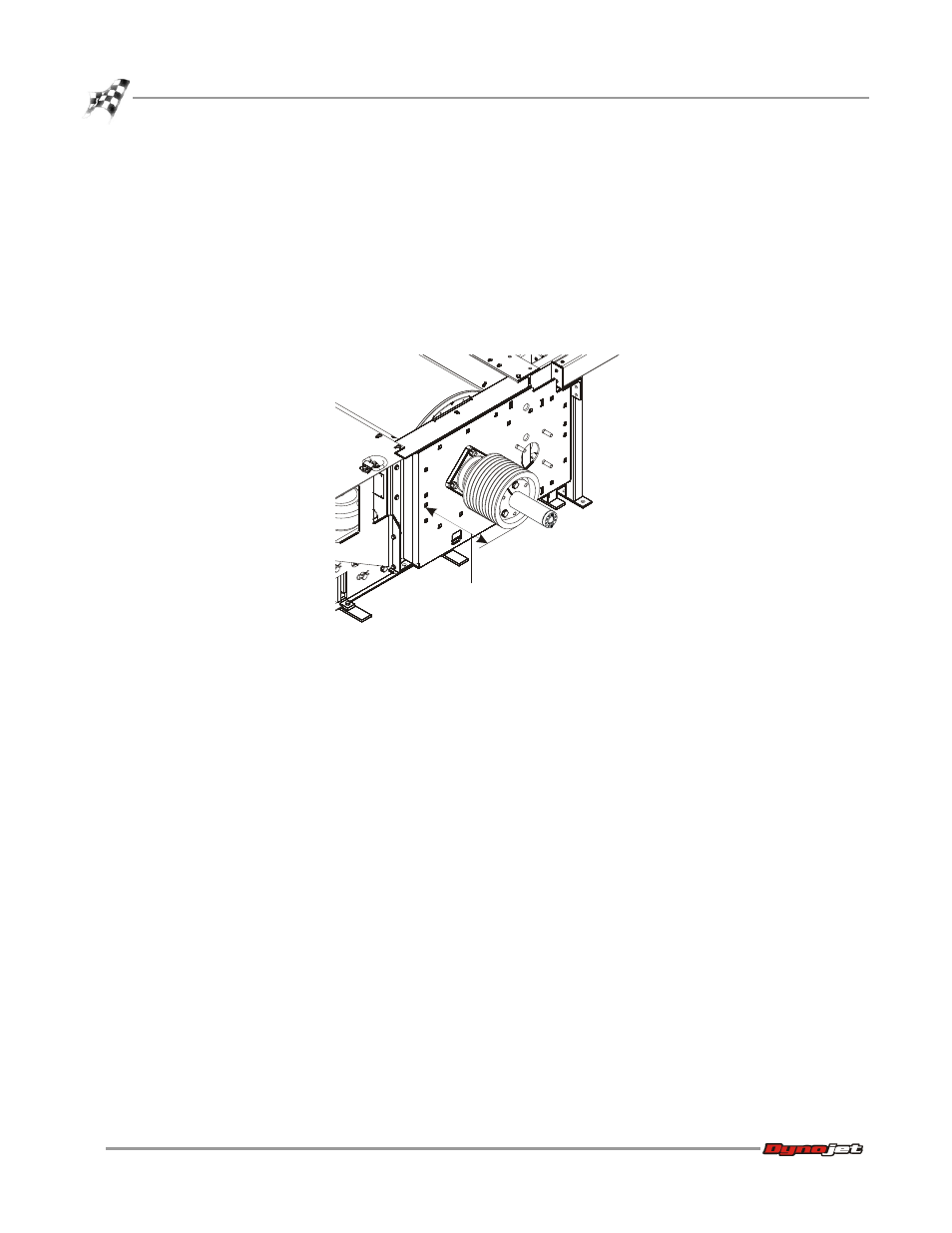

Figure 13: Verify the Pulley Distance
XD052
10-13/16 in. before tightening bolts
11.00 in. after tightening bolts
