Figure B-6 shows the serial output data format for demand mode when an MR (Memory
Recall) command is issued to the scale.
xxxxx.xx
Units
Accumulator Total
Units:
lb = pound
g = gram
Start
Transmission
Carriage
Return
Line
Feed
Space
pcs = pieces
cu = custom unit
ct = carat
ozt = Troy ounce
pct = percentage
"T"
ASCII 84
Total # of Entries
xxx
Space
Space
kg = kilogram
oz = ounce
GN = Grain
dwt = pennyweight

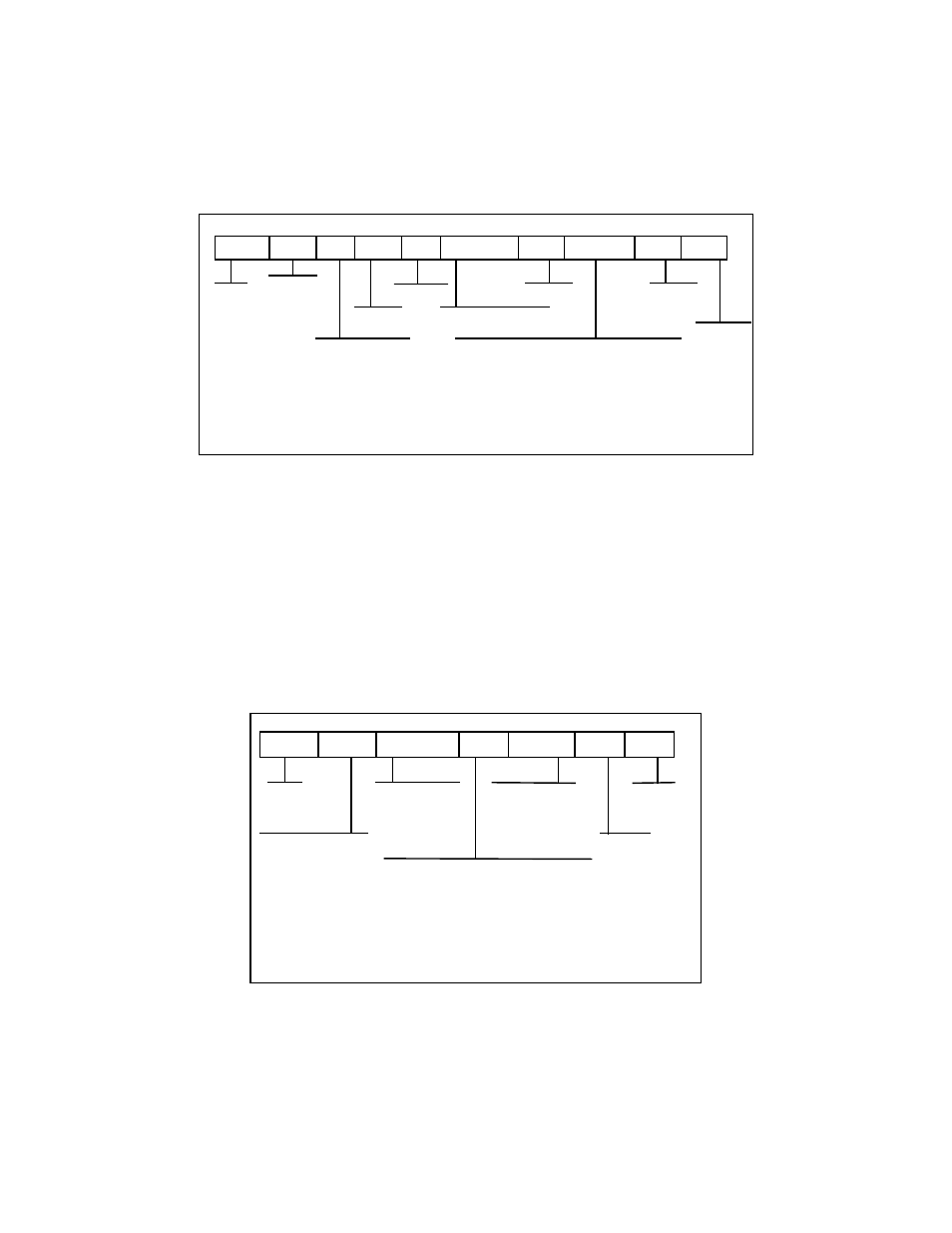

FIGURE B-6. Demand Mode Output Format for MR Command
B.2.2 CONTINUOUS MODE
The scale provides a full duplex, continuous serial transmission mode. This mode is
configured in the A3 sub-menu of the User Menu. See Chapter 5 for more
information. The continuous mode is used to interface to computers,
scoreboards, and other remote devices requiring constant data updating.
The transmission occurs at the end of each display update. Figure B-7
shows the serial data format for Continuous Mode.
Units
Polarity:
"–" = Negative
Weight Data
Units:
g = gram
ct = carat
Start
Transmission
Carriage
Return
Line
Feed
Status:
M = Motion
O = Overload
lb = pound
cu = custom unit
ozt = Troy ounce
pct = percentage
pcs = pieces
kg = kilogram
oz = ounce
GN = Grain
dwt = pennyweight
FIGURE B-7. Continuous Mode Output Format
