AVer ExpressGo User Manual
Page 75
69
(3) Motion Detection
Adjust the sensitivity of the motion detector. The higher the value, the finer the sensitivity is detected.
When it detects a motion, a green triangle mark would appear at the upper left corner of the screen.

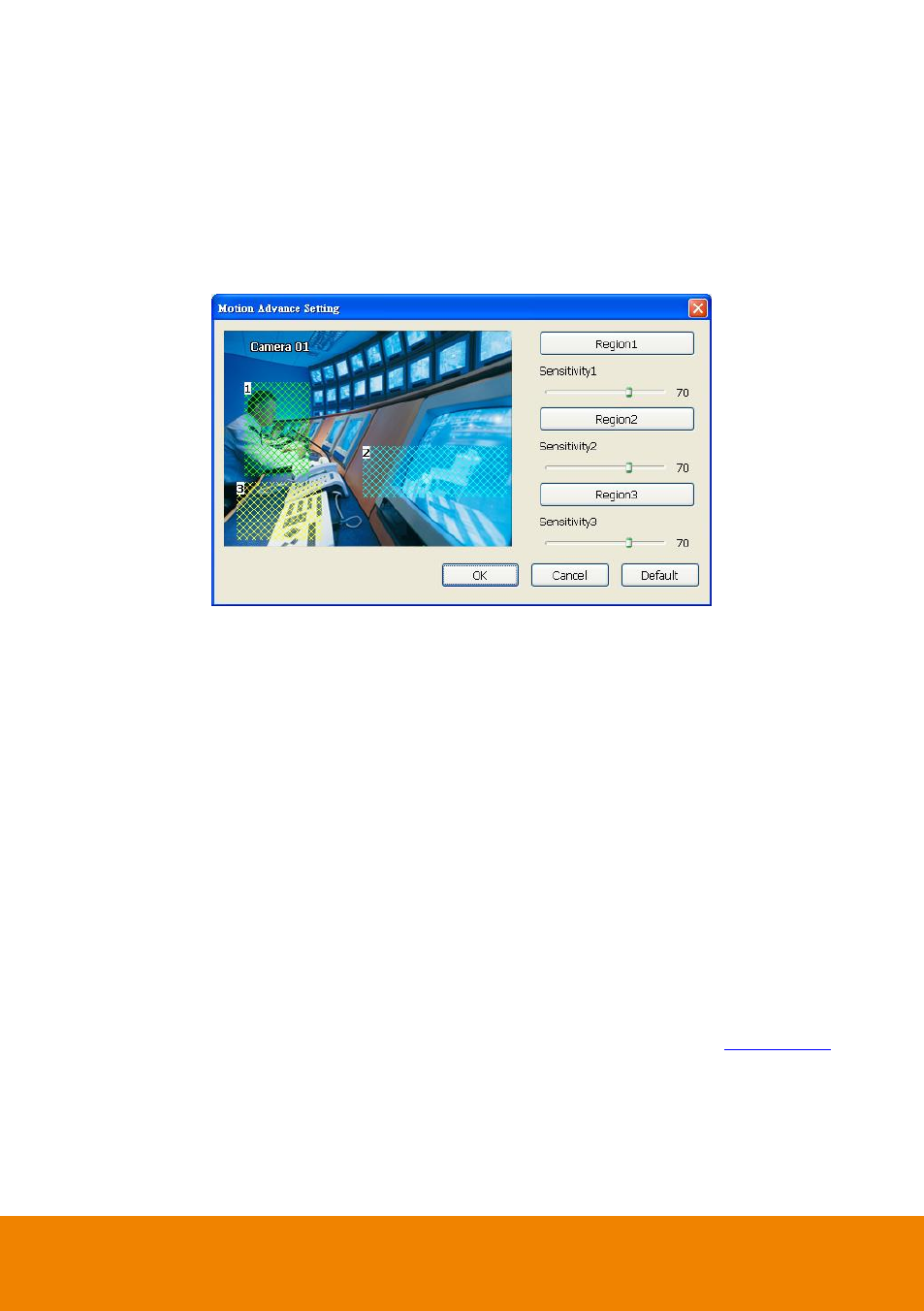

Click Advanced button to select the area for motion detection. Click Region 1/2/3 button, and then,
click-and-drag an area on camera screen for motion detect. To adjust motion detect sensitive, scroll
the Sensitivity 1/2/3 bar. Click OK to save and exit the setting window. To reset all setting, click
Default.
(4) Mask/Shield Edit
Mask, mark an area on the screen to disregards the motion in the marked area and to only monitor
outside the marked area. As for the Shield, it covers an area on the screen and the covered area
would not be visible on the screen and recorded.
To Mask/Shield an area on the screen
1. In the Mask/Shield Edit section, activate the Enable Mask/Enable Shield check box.
2. In the Edit section, select between Mask or Shield and click the button.
3. Click and drag a frame on the (5) Video Screen to create Mask or Shield area.
To show and change the color of the Mask
1. Enable the Show Mask check box.
2. In the Color section, select the color and click button.
(5) Video Screen
Display the video of the selected camera.
(6) Camera
Click to view the camera live video on (16) Video Screen.
(7) Group
Click to view the camera group that user has been setup in Camera setup (see also
).
