31

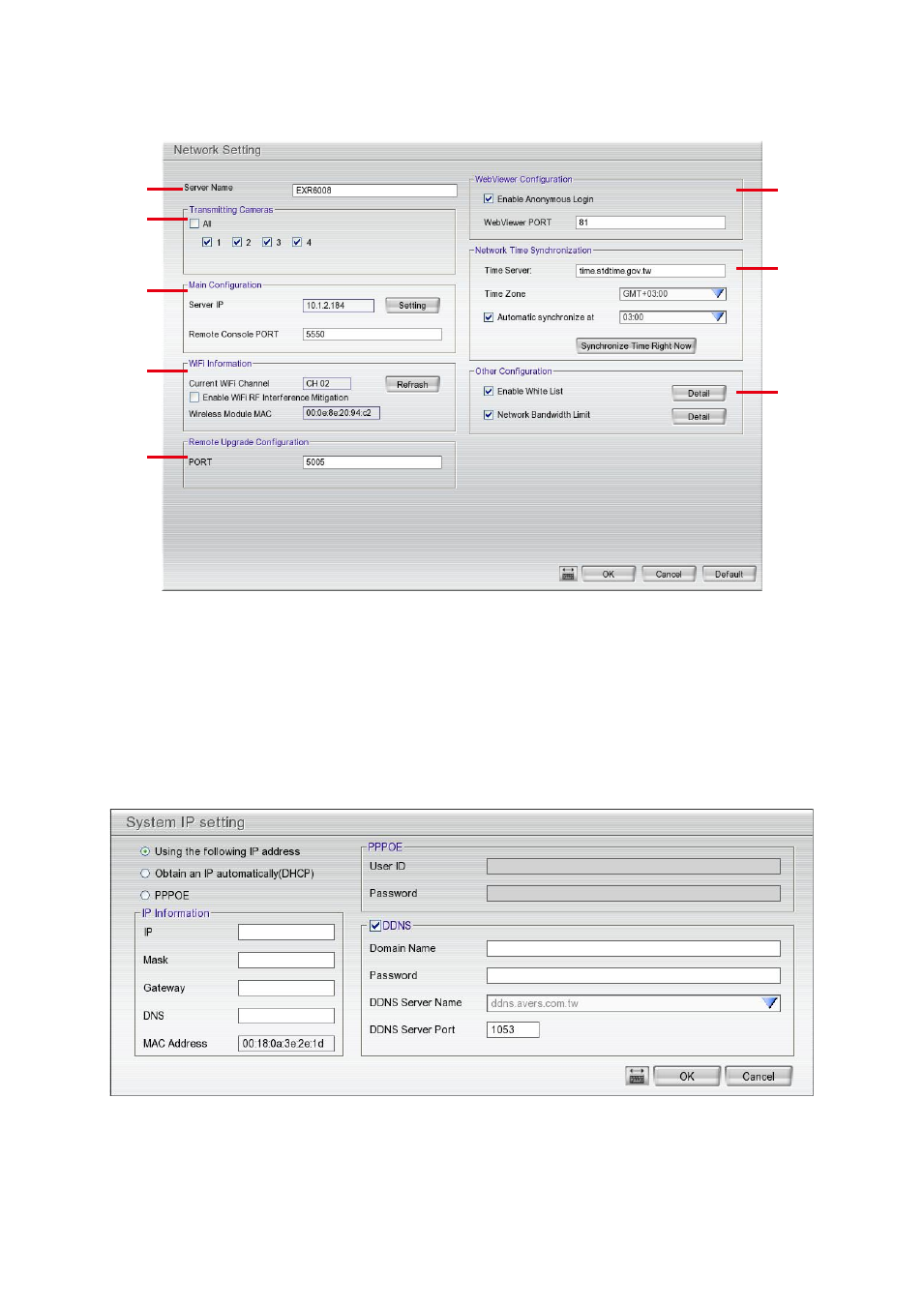

3.5 Network Setup
Click Default will back to the factory default value.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(1) Server Name
Assign a name for the DVR unit. Alphabet letters and numbers only.
(2) Transmitting Cameras
Select and click on the camera number in the Transmitting Camera section you want to make it
accessible via internet using WebViewer, Remote Console, PDA Viewer and JAVAViewer (still image). To
select all the cameras, enable the ALL check box.
(3) Main Configuration
Set the DVR IP address and Remote Console Port. You need this when accessing DVR server from the
remote location via internet. Click Setting to setup DVR IP.
 Using the following IP address: Assigns an IP address for the DVR system. Fill in the IP related
parameters in IP information section.
-
IP: Assign a constant IP address which a real IP address gives from ISP to DVR system.
- Mask: It is a bitmask used to identify the sub network and how many bits provide room for host
addresses. Enter the subnet mask of the IP address which user has assigned to DVR system.
- Gateway: A network device acts as a passageway to internet. Enter the network gateway IP
