Nomenclature
External LCD Panel
The following items are all indicated in the figure below.
ISO Film Speed Display
Shutter Speed Setting
Indicates ISO Film
Speed/Calculated
Value
Battery Indicator
Indicates Battery
Level
Exposure Indicator
Exposure Level
Compensation
Indicator
Exposure Level Scale
Exposure Level Mark
Metered Manual
Exposure Indicator
Red-eye Reduction
Lamp on Indicator
Aperture Setting/Calculated Value
Multiple-exposure Operation Indicator
S
OOO 0 0
uooisou.o a ci)
I
Red-eye Reduction Indicator
-
2
.
1
.[
5
.
1
.
2
+
Ci)
/
d o
'
Ï
Film-loaded Mark
Indicates Whether or
Not Film is Loaded

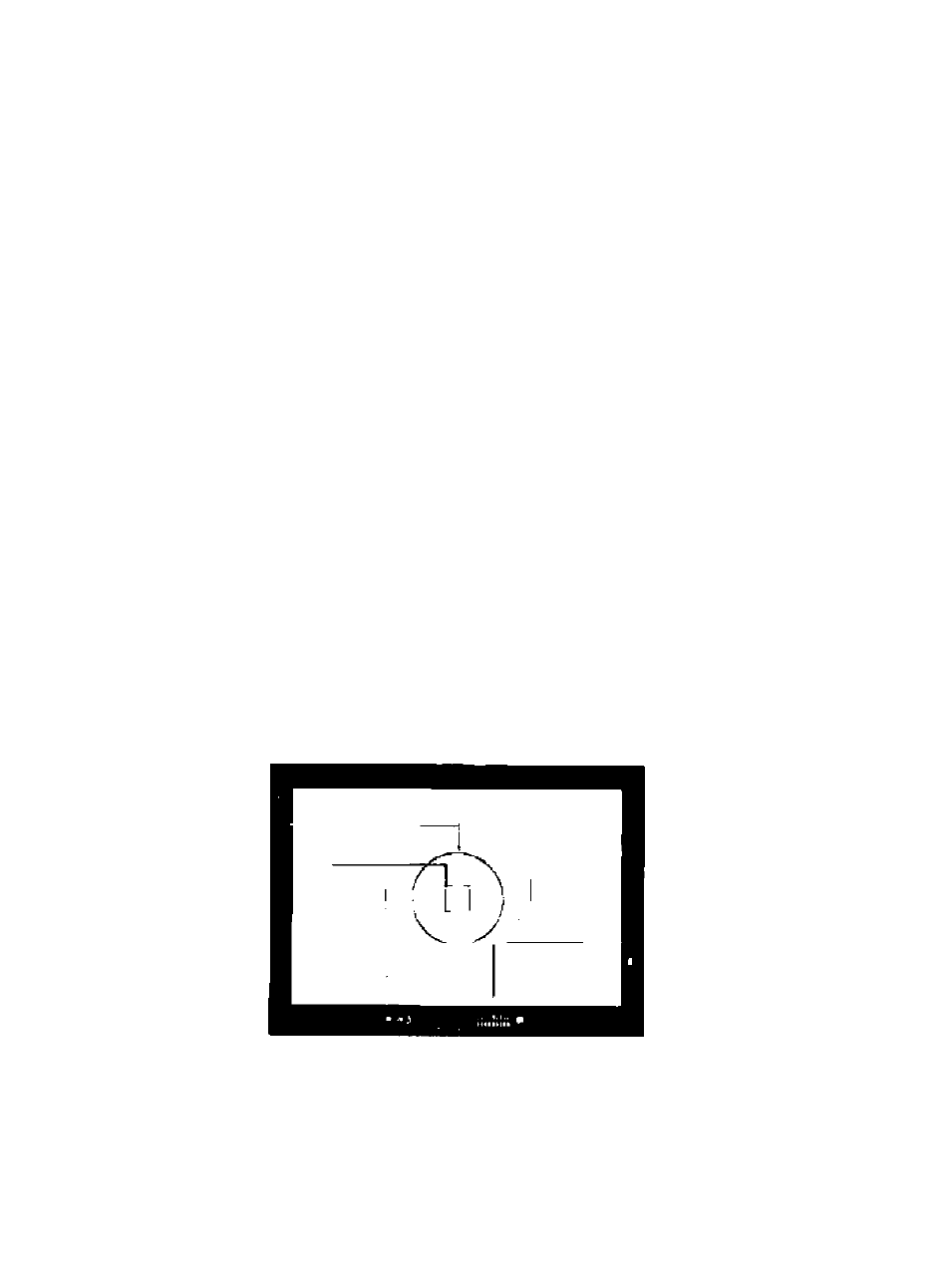

yiewfinder Internal Information Display
The following items are all indicated in the figure below.
Matte Screen
Partial Metering Mark
Center AF Frame
Wide AF Frame
AE Lock Indicator
Red-eye Reduction Indicator
Flash Charge Completion Indicator
Shutter Speed Indicator
—
Aperture Value Indicator
Sound Setting
Self-timer Indicator
Number of Remaining
Frames of Film
Multiple-exposure
Number
Sound Set/Off Indicator
Film Setting Completed
Indicator
Film Rewind Completed
Indicator
Self-timer Operation
Indicator
(Count-down)
Exposure Indicator
Exposure
Compensation
Level Indicator
Exposure Level
Scale
Exposure Level
Mark
Metered Manual
Exposure Indicator
Red-eye Reduction
Lamp on Indicator
In-focus Lamp
(When using autofocus, lamp lights when
focussing is completed. It focussing is not
possible the lamp blinks at a rate of twice per
second. When using manual focus, the lamp
lights when focussing is completed, but
remains off until focussing is complefed.) g
