Australian Model

Connection Plug

RU'lOO

TO TV Terminal

female

I ji ¡^nn

male

TO TV

ICH OCH

FROM ANT

Video Channel

Selector

FROM ANT.

Terminal

Coaxial Cable with OIN Connectors

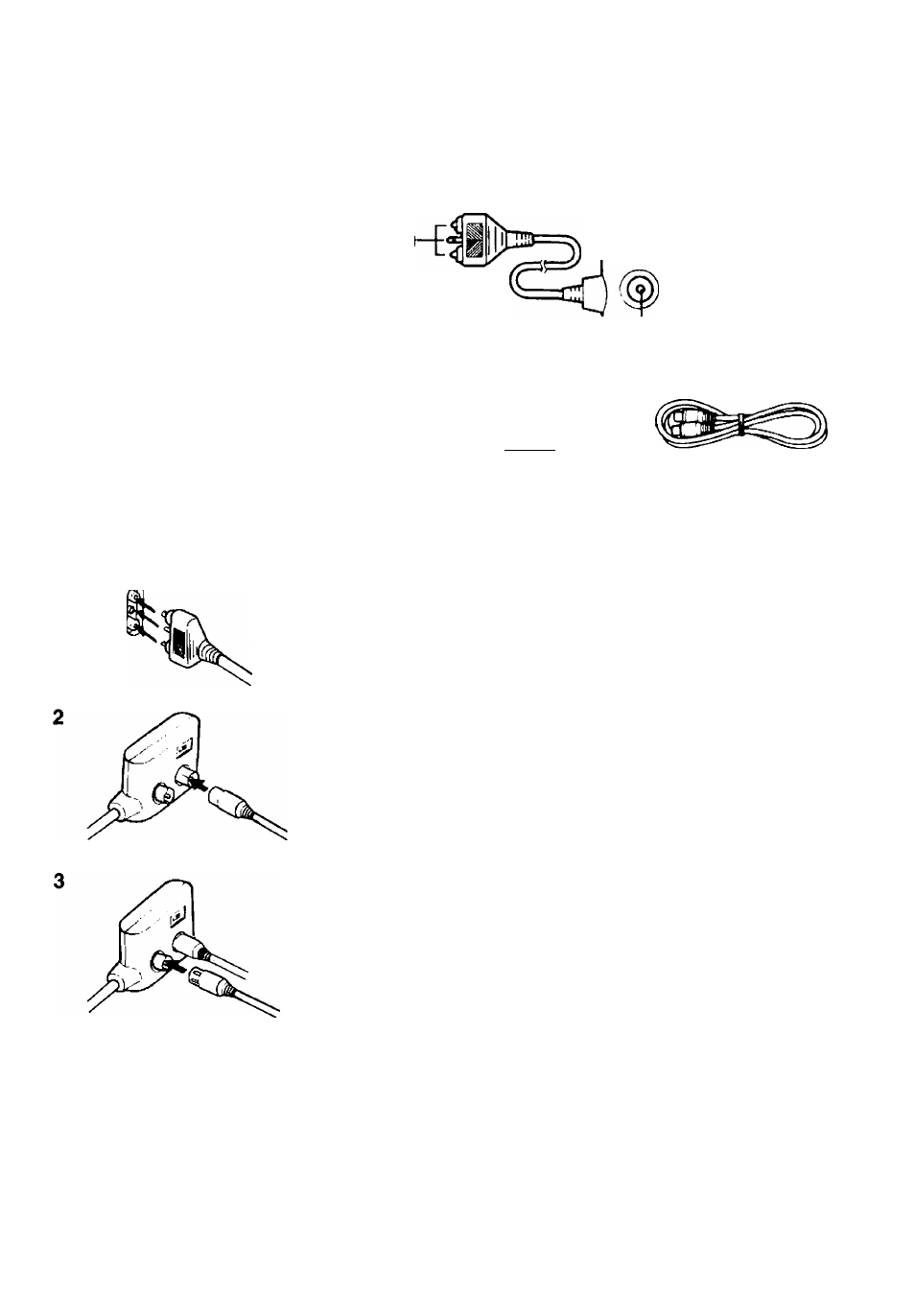

Connection Procedure

Attach Connection Plug of RF unit to camera.

Attach aerial cable to FROM ANT. terminal of RF unit.

Please note the difference between ‘male’ and ‘female’
type DIN connectors on coaxial cable. Connect female
connector to TO TV terminal of RF unit, and male
connector to aerial input of TV.

B asic O perations
