4. Then refit any parts that were removed in the beginning when everything was taken apart.
・Please ensure that all the required gaskets are used when reconnecting the oil lines.
・Also ensure that the gasket is fitted on the oil return line （on the oil sump side）.
Spine
・Then install the heat sheild of your choice if wanted (either the factory original or the TOMEI heat
sheild).
Warning

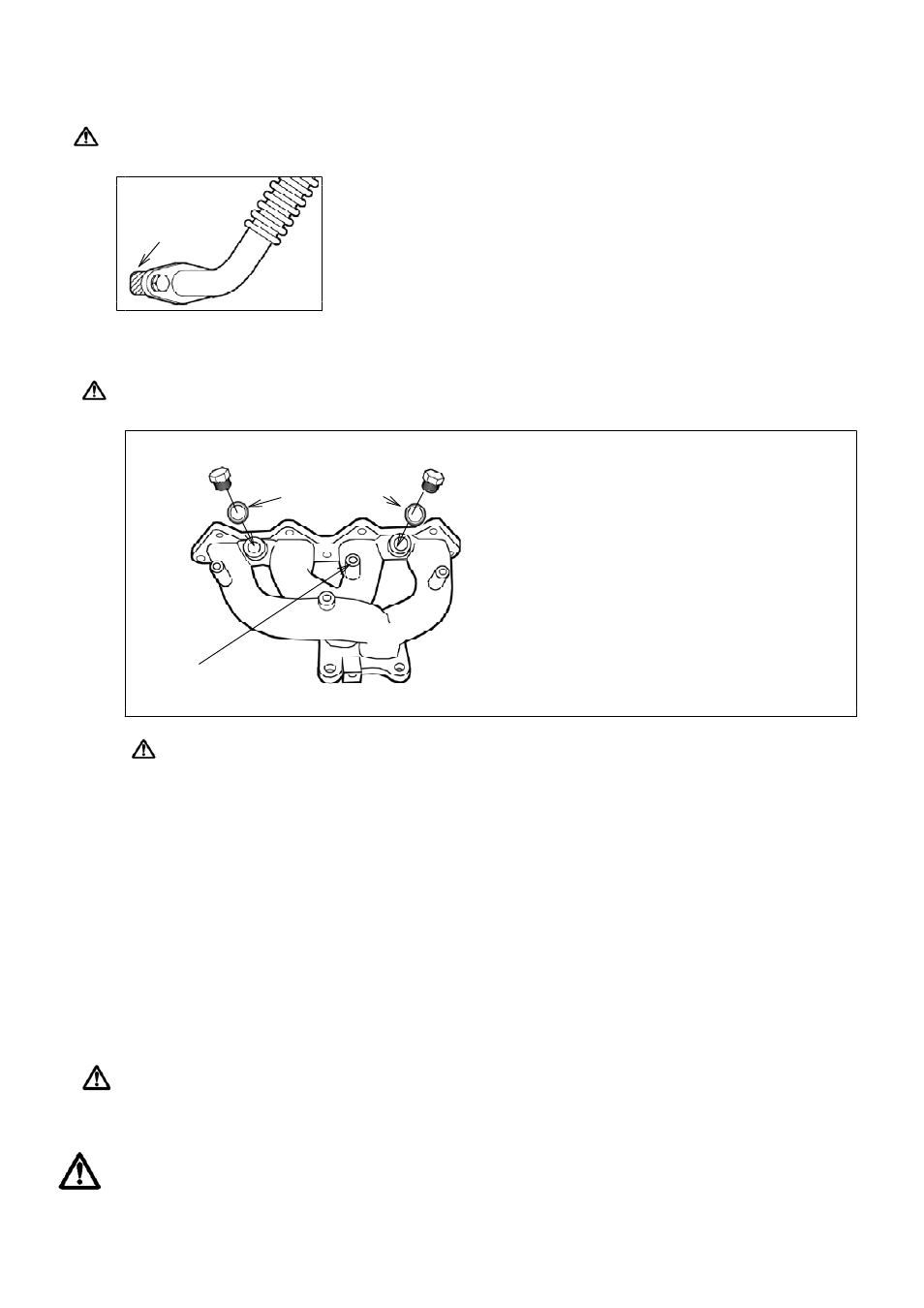

Use the included secondary air gasket "B" when installing the exhaust manifold assembly.
Tighten included blind bolt with secondary air Blind bolt Blind bolt
gasket. Secondary air gasket "B"
Properly install the secondary air gasket B as
noted on the diagram.
Tighten bolts to the correct torque specs.
(49N・m)(4.9kgf-m)(36.1 ft/lbs)
Holes not used for this application.
Blind bolt has only been temporarily put in place for shipping.
If vehicle is driven without the above procedure, the bolts will not stay in place.
5. Add coolant
6. Reconnect the battery.
3. Final Check After Installation is Completed.
1. Verify that the exhaust manifold and related parts are all fitted securely without any interference with
wiring etc.
2. After starting the engine please check for any exhaust leaks.
When running the engine for the 1st time with the new thermal bandage, there will be smoke so it is
best to run the engine in a well ventilated area until the bandage stops smoking.
Warning
・Take care and check for any interfering parts as it may cause a break down, fire or other hazards.
・An exhaust leak can cause performance loss and also can be a health hazard.
