1. Removal of the Original Exhaust Manifold.
The following instructions illustrated below are a simple and basic explanation on the removal and
reinstallation of the exhaust manifold. For more detailed instructions please refer to the manufacturer’s service manual.
1. Disconnect the batterys negative terminal.
2. Remove the under cover.
3. Drain the coolant and engine oil.
4. Remove the cross member bar.
5. Remove the front exhaust pipe.
6. Remove the radiators upper hose.
7. Remove the air duct, air cleaner assembly & air intake hose.
8. Remove the O sensor connector.
2
Air Pipe

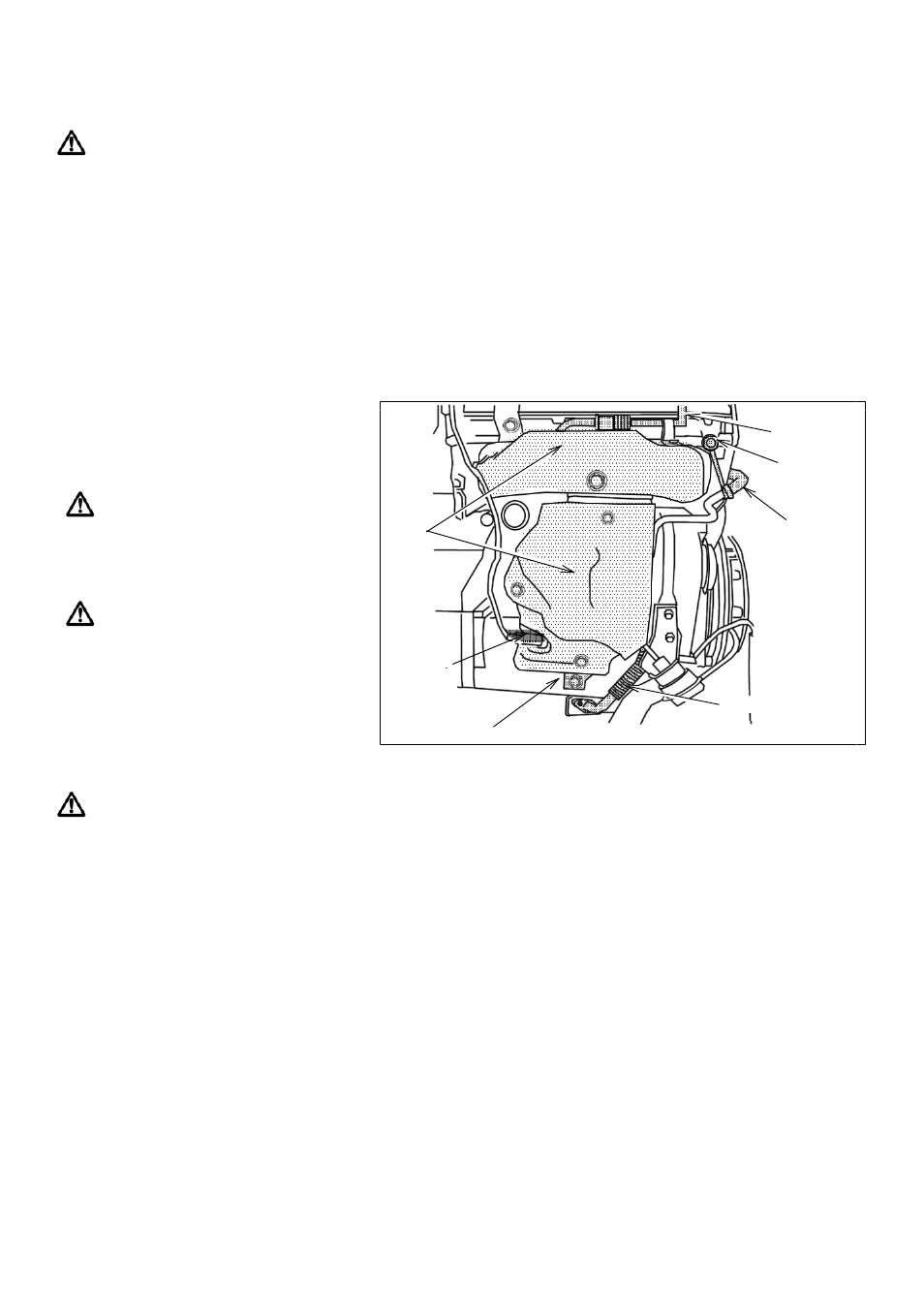

9. Remove the exhaust manifold shield,
Oil line eye
& turbo charger shield.
bolt
Spray lubricant onto the bolt whilst
removing it to help prevent any
Water line hose
damage to the bolt.
Shield
10. Remove the air pipe assembly.
Spray lubricant onto the bolt whilst
O Sensor
removing it to help prevent any
2
C nnector
damage to the bolt.
o
11. Remove the Outlet bracket,
Oil Return Pipe
Oil lines eye bolt,Water lines &
Outlet Bracket
Oil return line.
12. Remove the turbo charger assembly from the exhaust manifold.
・Please remove the air hose any auxilaries connected to the turbo charger.
・Once the turbine has been remove please seal any openings on the turbine to prevent any unwanted
materials from entering it as it can cause serious damage later.
・Please take care not to damage the radiator when removing the turbo charger assembly.
・It is best to leave the turbo charger assembly near the exhaust manifold in the same position whilst
working.
13. Remove the exhaust manifold.
