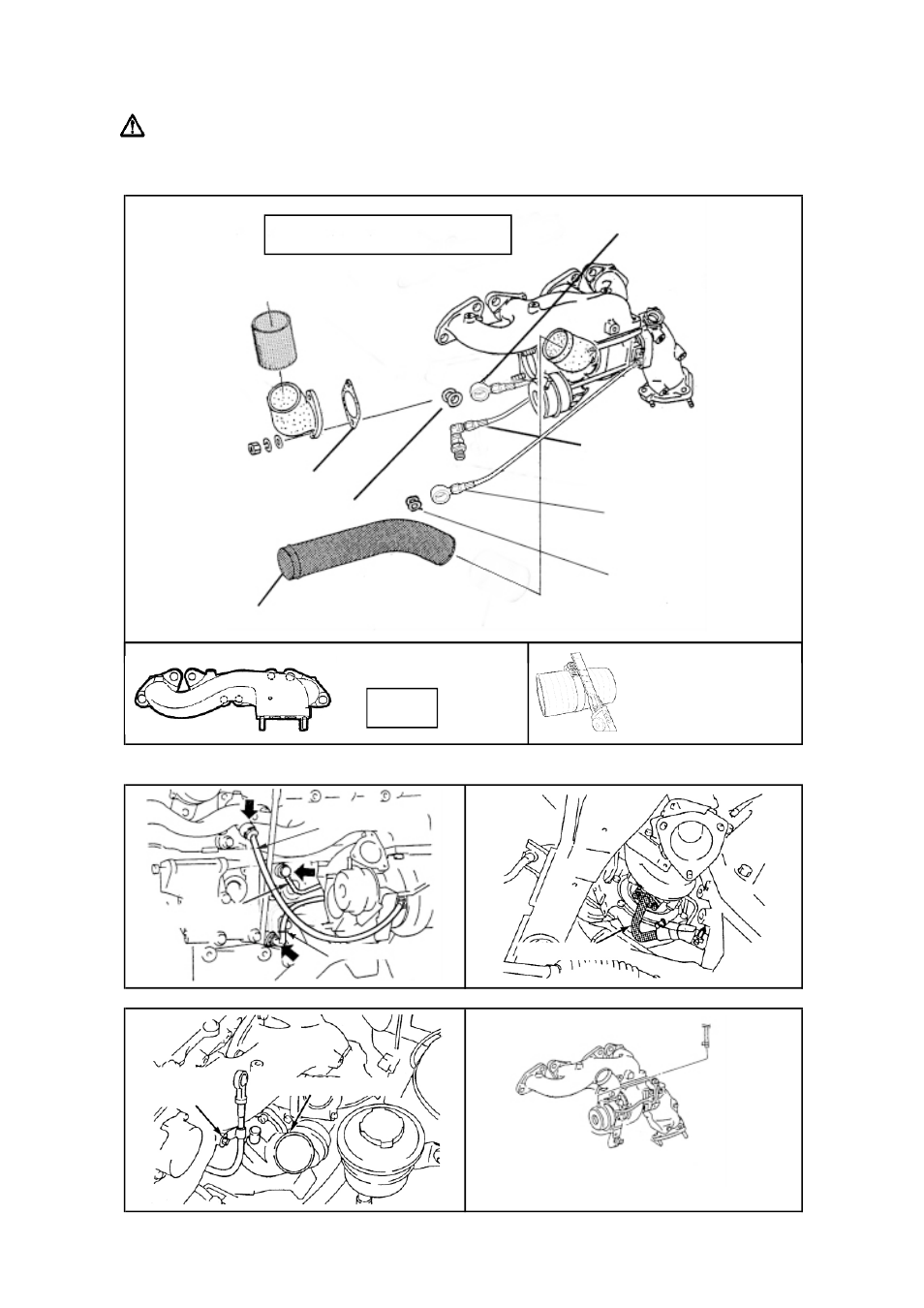

4. INSTALLING TO THE ENGINE
CAUTION
■ When installing the hose to the engine itself, take extra care NOT to damage or break the screw from
over tightening the banjo bolts. If the screw breaks or is damaged then repair cannot be done without
removing the engine from the car.
Silicone Hose
Suction Pipe
* S14/S15
use standard
Suction Pipe
Gasket
Copper Washer Large
Air Pipe * （R）PS13 ONLY
Copper Washer
Water Line Return Hose
Oil Line Inlet Hose
Water Line Inlet Hose Torque specs for each AN male straight
fitting and banjo. T=31.4N・m (3.2kgm)
③ ④ ⑤ ⑥
Cut the Silicone hose to
【Manifold tightening order】
Water Line Inlet Hose, Water Line Return Hose, Oil Line Inlet Hose install to the engine.
Install the suction pipe and vacuum hose.
20
Air Pipe * （R）PS13 ONLY
①②
③ ④ ⑤ ⑥
⑦ ⑧
T=48.0N・m
(4.9kgm)
Cut the Silicone hose to
the required length and
use the hose clamps to
secure it in place.
Oil Return Tube
Water Line Return hose
Water Line Inlet Hose
Oil Line Inlet Hose
Oil Level
Gauge Guide
Bolt
Suction Pipe
Vacuum Hose
