1. REMOVAL OF THE STOCK TURBINE.
Disconnect the car battery's negative terminal. Then follow the Nissan service manual to remove the stock turbine.

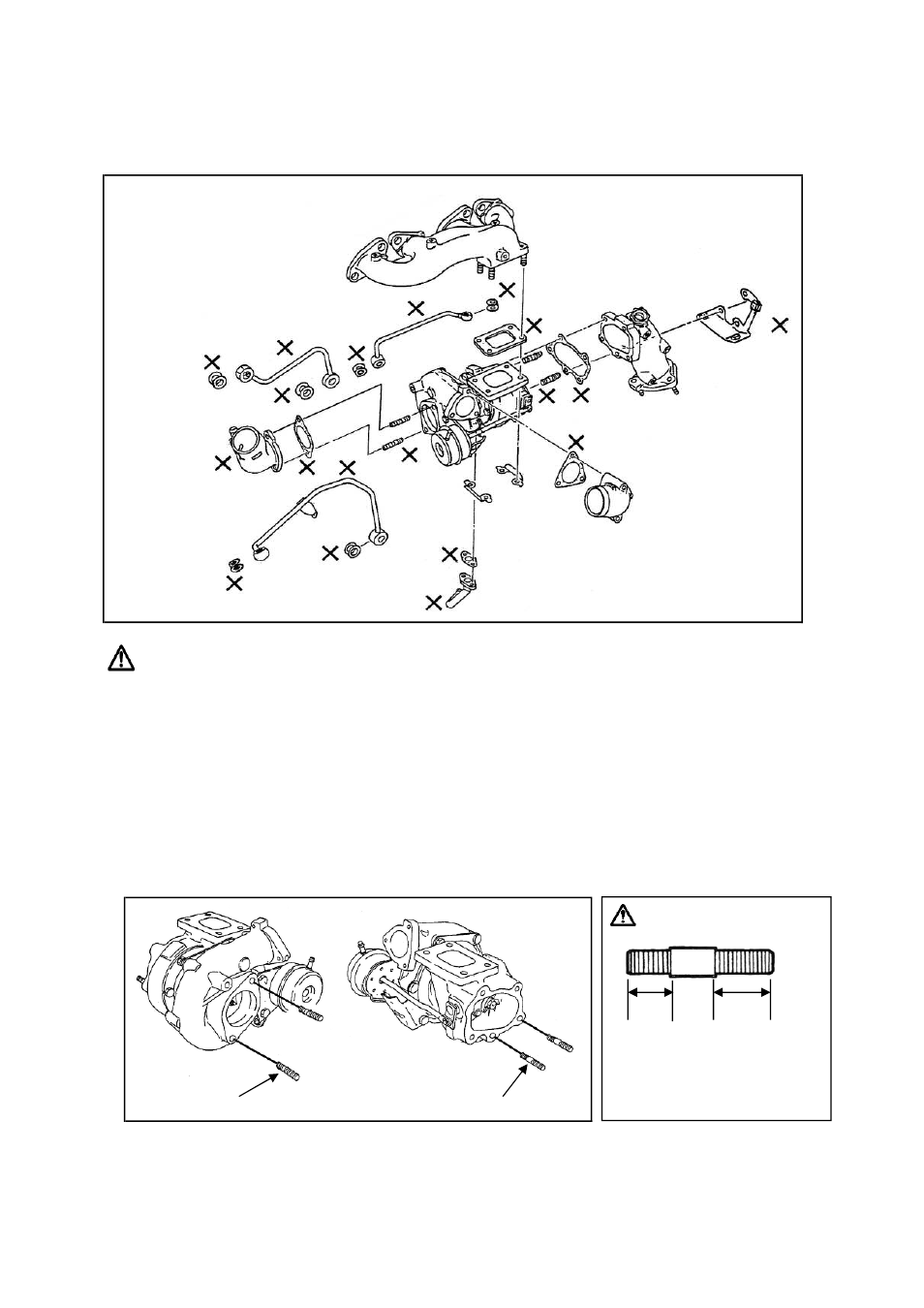

The illustration below shows the parts (marked with an "x") that should NOT be reused.
CAUTION
(X Marks the parts that
should NOT be reused)
* (R)PS13
ONLY
CAUTION
■ Please take extra care not to damage the parts you intend to reuse (bolts and lock plates).
2. INSTALLING THE MANIFOLD
(1) Install the Stud Bolts
Use the stud bolts that was supplied with the ARMS Turbo kit to install the turbo
as follows.
17
* Shorter one for the turbine side.
* Use the double nut method for the
installation.
* When removing the nut, take care
not to move the bolt.
Pay attention to the
stud bolts direction
Short Long
Compressor Stud Bolt Turbine Stud Bolt
