2-1-2

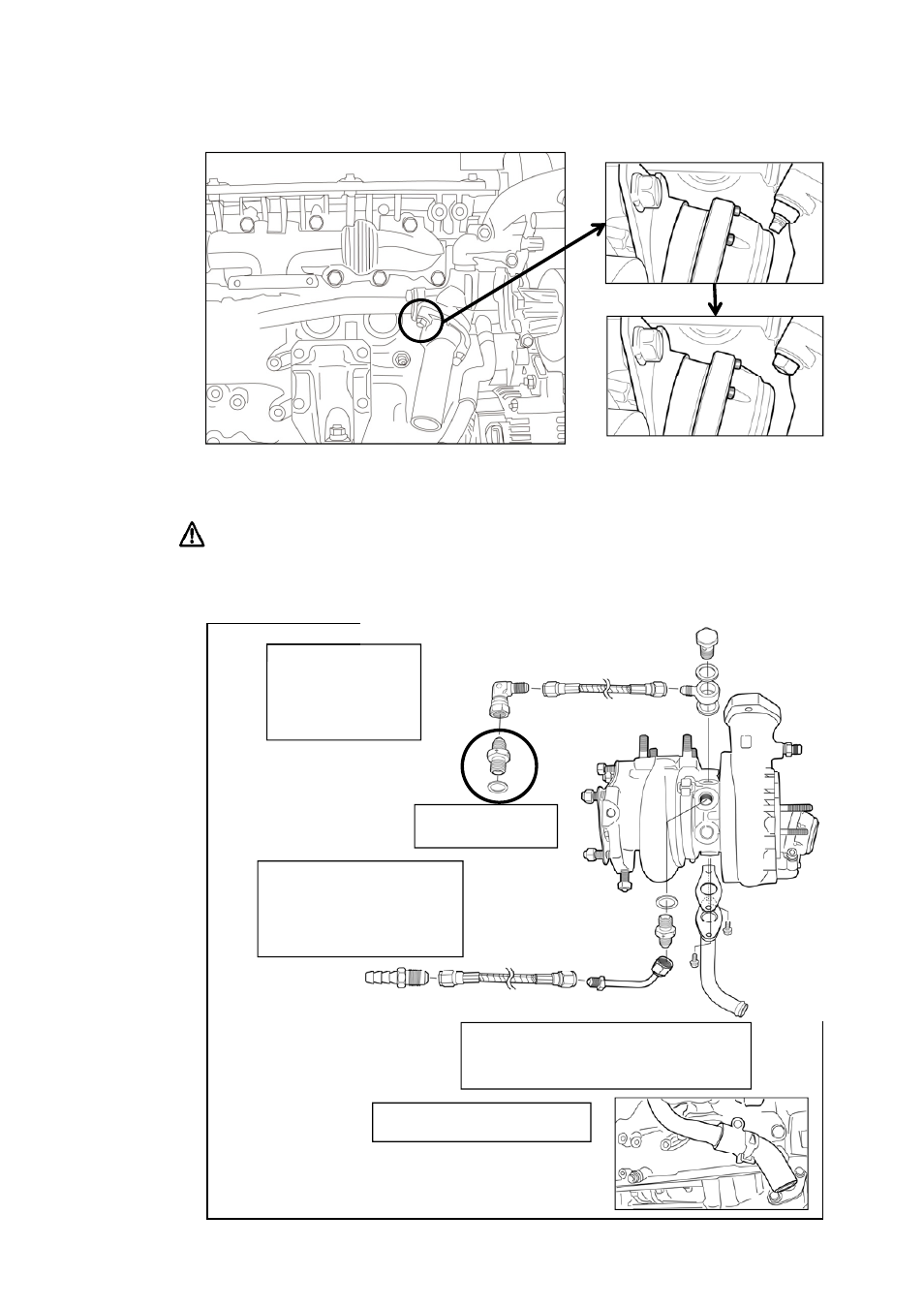

Check for adequate clearance between the Turbo's Actuator and the Water Inlet Pipe with the
Mounting Stud. Failure to maintain adequate clearance will require the studs to be replaced
with the ones supplied (Part ⑥-11).
from this
to this
2-2 Turbo Charger Side
You can use the Thermal Heat Hose (Part ⑥-9) and Thermal barriers for the Turbocharger and the
Exhaust Manifold parts.
2-2-1
Install the Water Outlet Hose, Oil Inlet Hose & Oil Return Pipe.
OIL INLET HOSE
21
WATER OUTLET HOSE
・Copper Washer (Part ②-2)
・Water Line Outlet (Part ②-1)
・Elbow (Part ②-3)
・Mesh Hose (Part ②-4)
・Water Line Outlet Adapter (Part ②-5)
OIL INLET HOSE
・Copper Washer (Part ④-2)
・Banjo (Part ④-3)
・Banjo Bolt (Part ④-1)
・Mesh Hose (Part ④-4)
・Elbow (Part ④-5)
Already fitted to the block
as shown in 2-1-1
OIL RETURN
・Gasket (Part ⑤-4)
・Return Pipe (Part ⑤-1)
・Bolt (Part ⑤-3) 【Torque Specs : T=9N・m (0.9kgm)
Adjust the Oil Return Hose (Part ⑤ -2)
after cutting the right length & install it.
