③ CYLINDER BLOCK (8 POINTS)

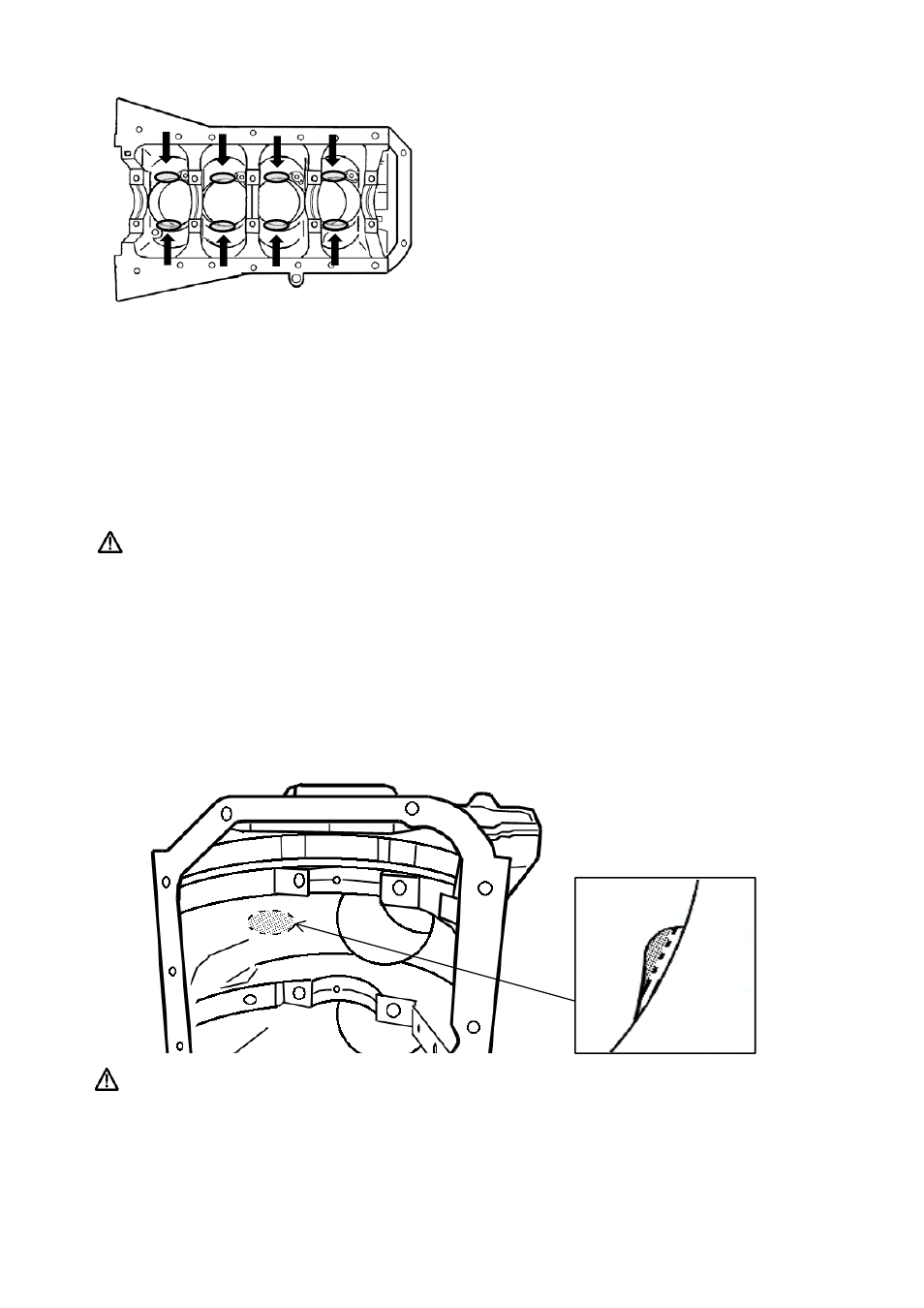

The marked areas as shown on the illustration on the left,
shows areas where the Conrods may make contact when
changing the cylinder sleeves.
Process the required machining with a grinder to allow
1mm-1.5mm clearance when required.
④ CONROD BOLTS (8 Bolts)
When using stock Conrods, changing certain items is needed. Please do the same
with similar setups when required after checking the clearance issue of the stock Conrods.
Compatibility: TOMEI reinforced Conrod Bolt Part Number: 123002
・No work is required when using the Tomei H-Beam Conrods.
⑤ LOWER PART OF CYLINDER NO.1
(Other side of installed alternator bracket)
【MAIN MODIFICATIONS】
Topics mentioned previously about the points of interference on the block may also apply when using the .
TOMEI H-Beam Conrods. When necessary, please modify those areas for allowing clearance of up to 1mm
when required.
･No modifications are required when using the stock Conrods.
･Modifications may be required depending on the aftermarket conrods used.
