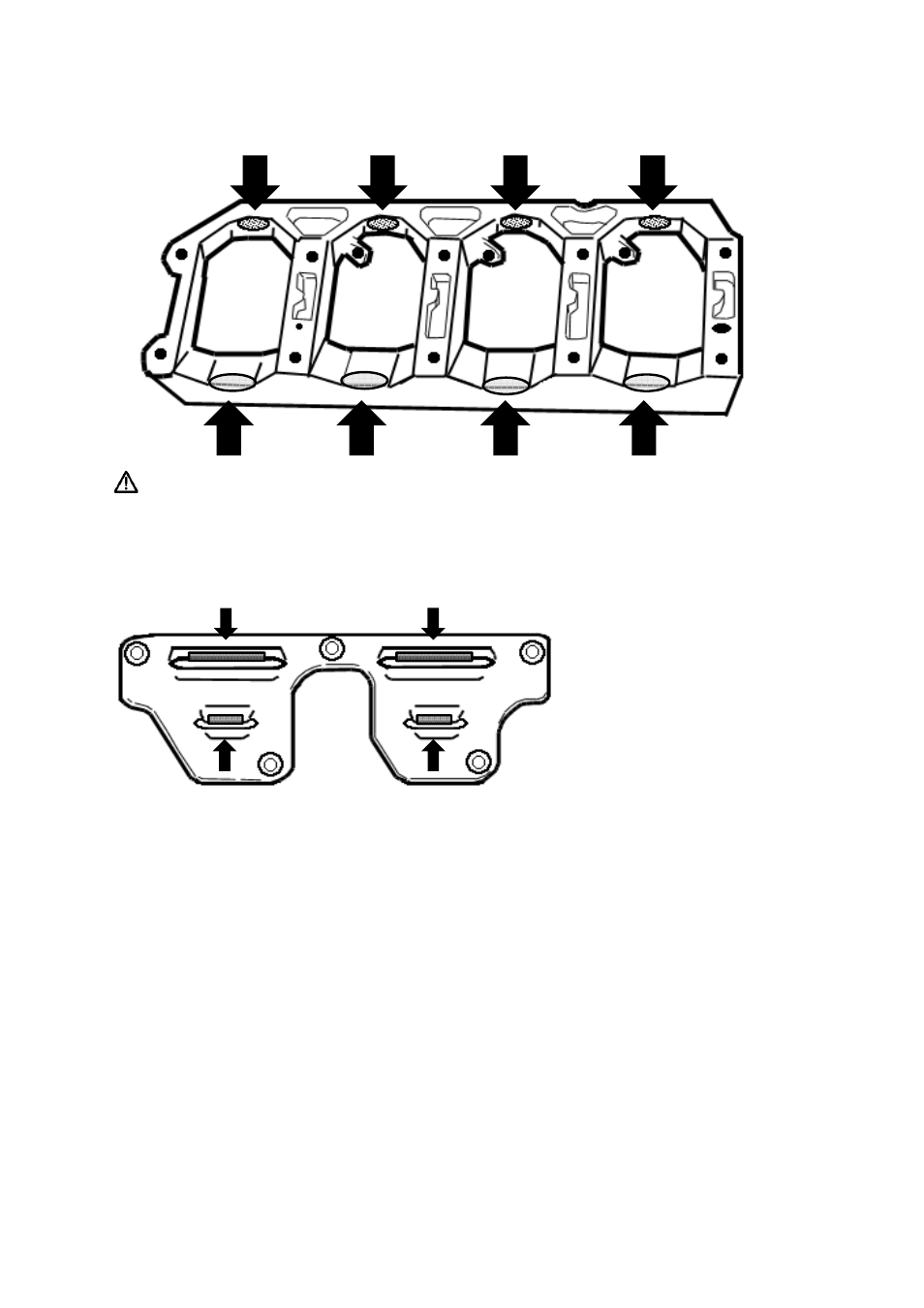

⑥ MAIN BEARING BEAM (8 Points)

Make the modifications required as shown on the 8 points of the main bearing beams with
a mill or grinding tool.

・No modifications required when using the Tomei H-Beam Conrods.

⑦ BAFFLE PLATE (4 Points)

Make the required clearance of
1mm-1.5mm on the areas shown
on the illustation on the left, to
allow clearance for the Conrods.
These are the areas where the
Conrods will make contact during
rotation.
