Internal Components: Dell Precision™ WorkStation 620 Systems User's Guide

Overview

This section provides troubleshooting procedures for components inside your computer. Before you start any of the procedures in this section, do
the following:

Perform the procedures described in "

Checking Connections and Switches

" and "

System Setup

Read the safety instructions in "

Safety First

—For You and Your Computer

You need the following items to perform the procedures in this section:

The Dell Precision ResourceCD

A small flat-blade screwdriver and a #1 Phillips-head screwdriver (or quarter-inch hex-nut driver)

Your system also includes an interior system service label affixed to the inside of the computer cover (see

Figure 1

for the location of this label).

This label shows the location of components within the chassis and locations of system board components and connectors. It also contains an
important notice that provides instructions you need to follow to help prevent damage to your system board while you troubleshoot your computer
system.

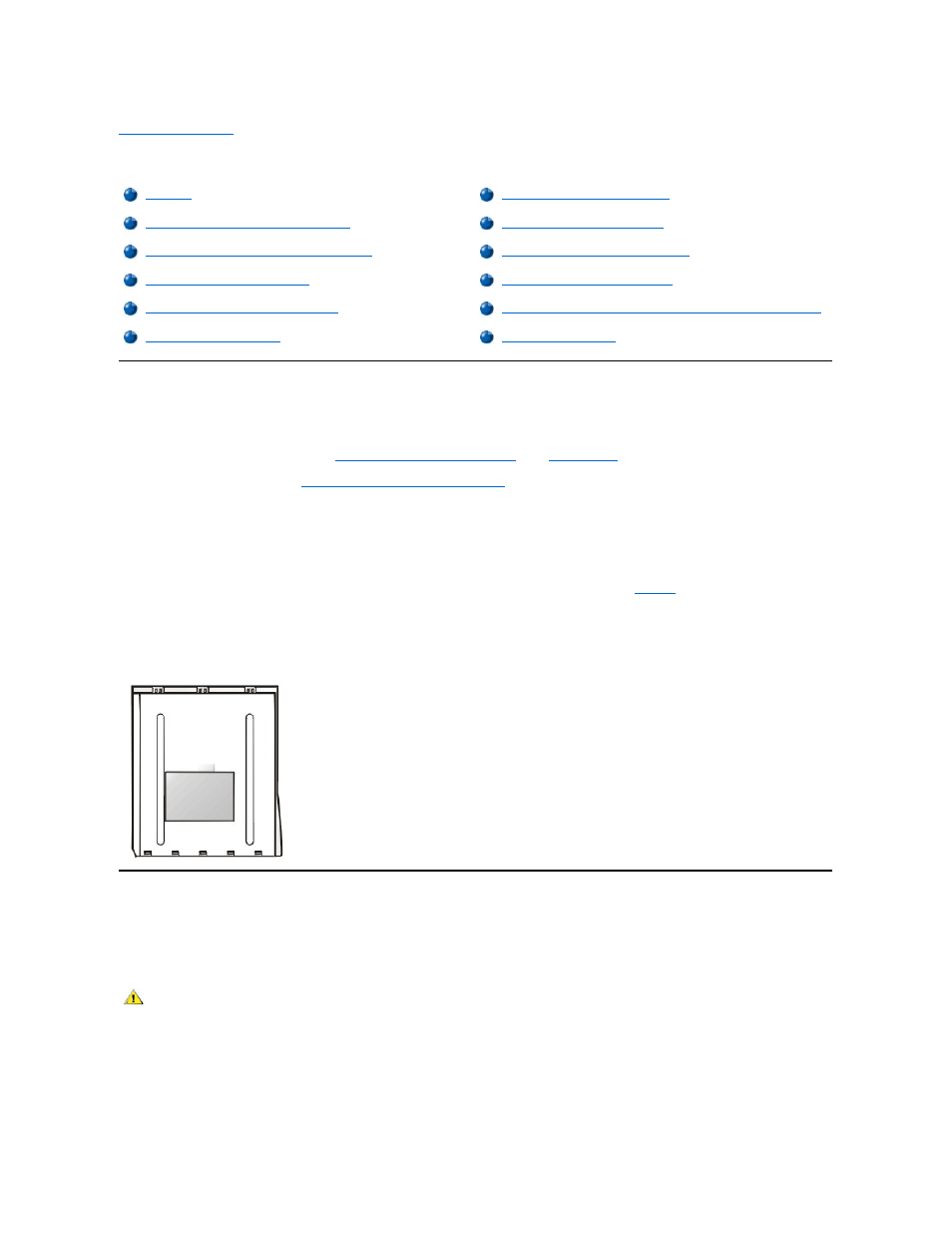

Figure 1. Mini Tower Chassis Interior Service Label

Safety First

—For You and Your Computer

The procedures in this section require that you remove the cover and work inside your computer. While working inside your computer, do not
attempt to service the computer except as explained in this guide and elsewhere in Dell™ documentation. Always follow the instructions closely.

Working inside your computer is safe

—if you observe the following precautions.

Before you start to work on the computer, perform the following steps:

1. Turn off the computer and all peripherals.

2. Touch an unpainted metal surface on the computer chassis, such as the metal around the card-slot openings at the back of

your computer, before touching anything inside your computer.

Overview

Troubleshooting Expansion Cards

Safety First

—For You and Your Computer

Troubleshooting System Memory

Removing and Replacing the Computer Cover
