Dell Vostro 410 (Late 2008) - Manual (Page 35)

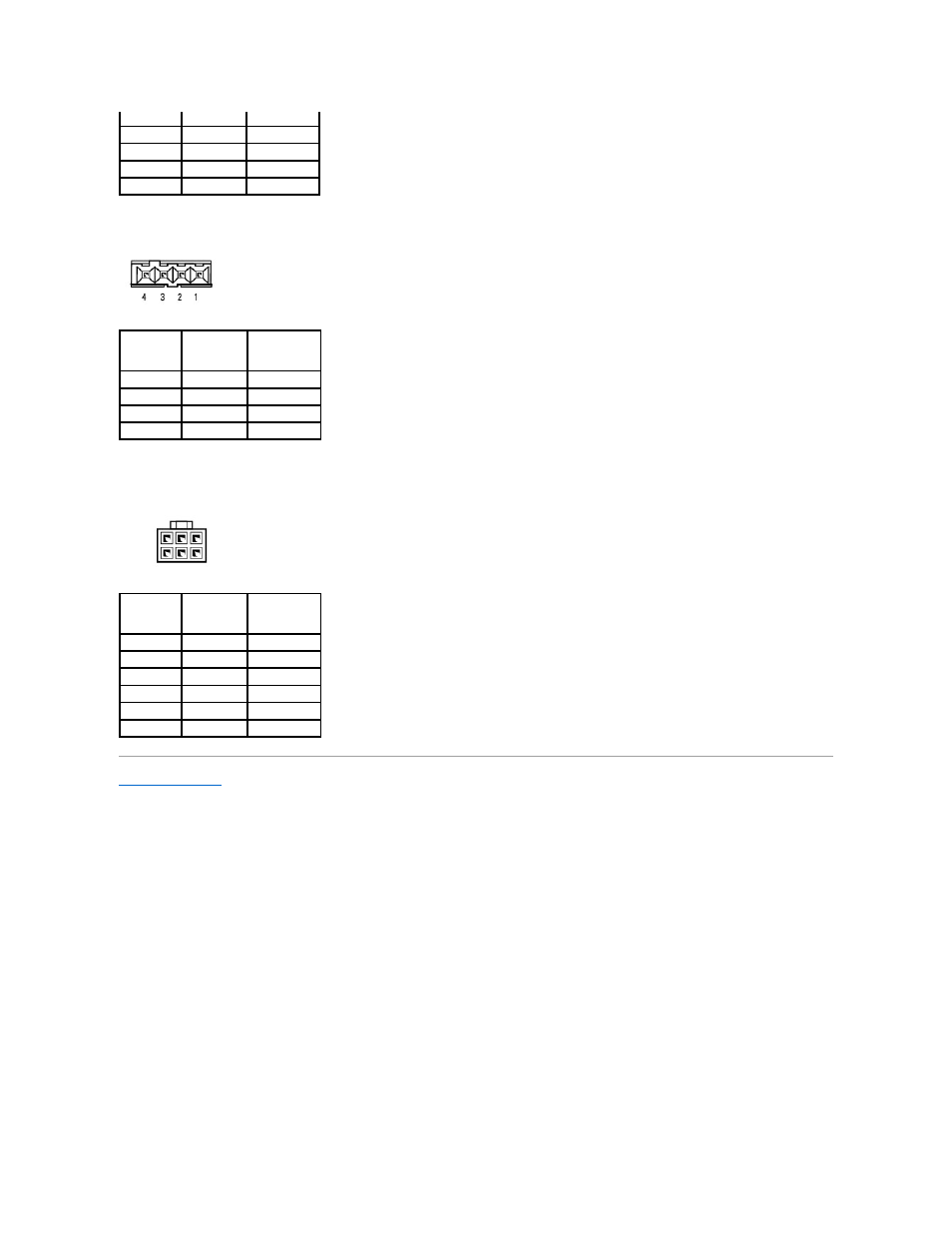

DC Power Connector P9
DC Power Connector P10
Back to Contents Page
1 +3.3 VDC Orange
2 GND Black
3 +5 VDC Red
4 GND Black
5 +12 VBDC White
Pin Number Signal Name 22-AWG Wire
1 +5 VDC Red
2 GND Black
3 GND Black
4 +12 VADC Yellow
Pin Number Signal Name 22-AWG Wire
1 +12 VDC Yellow
2 +12 VDC Yellow
3 +12 VDC Yellow
4 GND Black
5 GND Black
6 GND Black
