Installing System Components

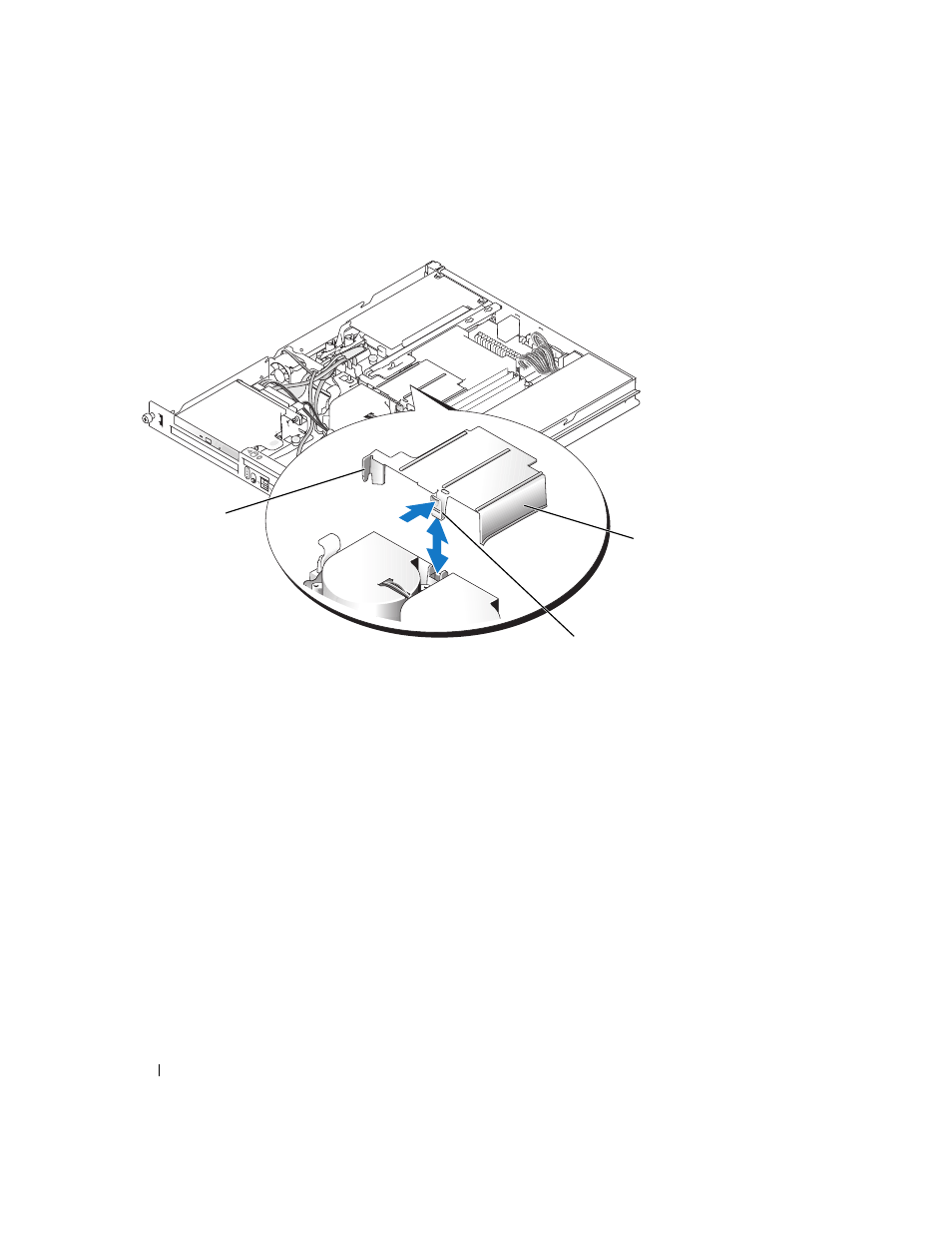

Figure 3-4. Installing and Removing the Cooling Shroud
Installing the Cooling Shroud
1 Insert the tab on the side of the cooling shroud and the release latch into the fan assembly. See
Figure 3-4.
2 Push the cooling shroud down until the release latch snaps into place, securing the shroud to the fan
assembly.
3 Close the system. See "Closing the System" on page 47.
1 tab 2 release latch 3 cooling shroud
1
3
2
