60
Installing System Components

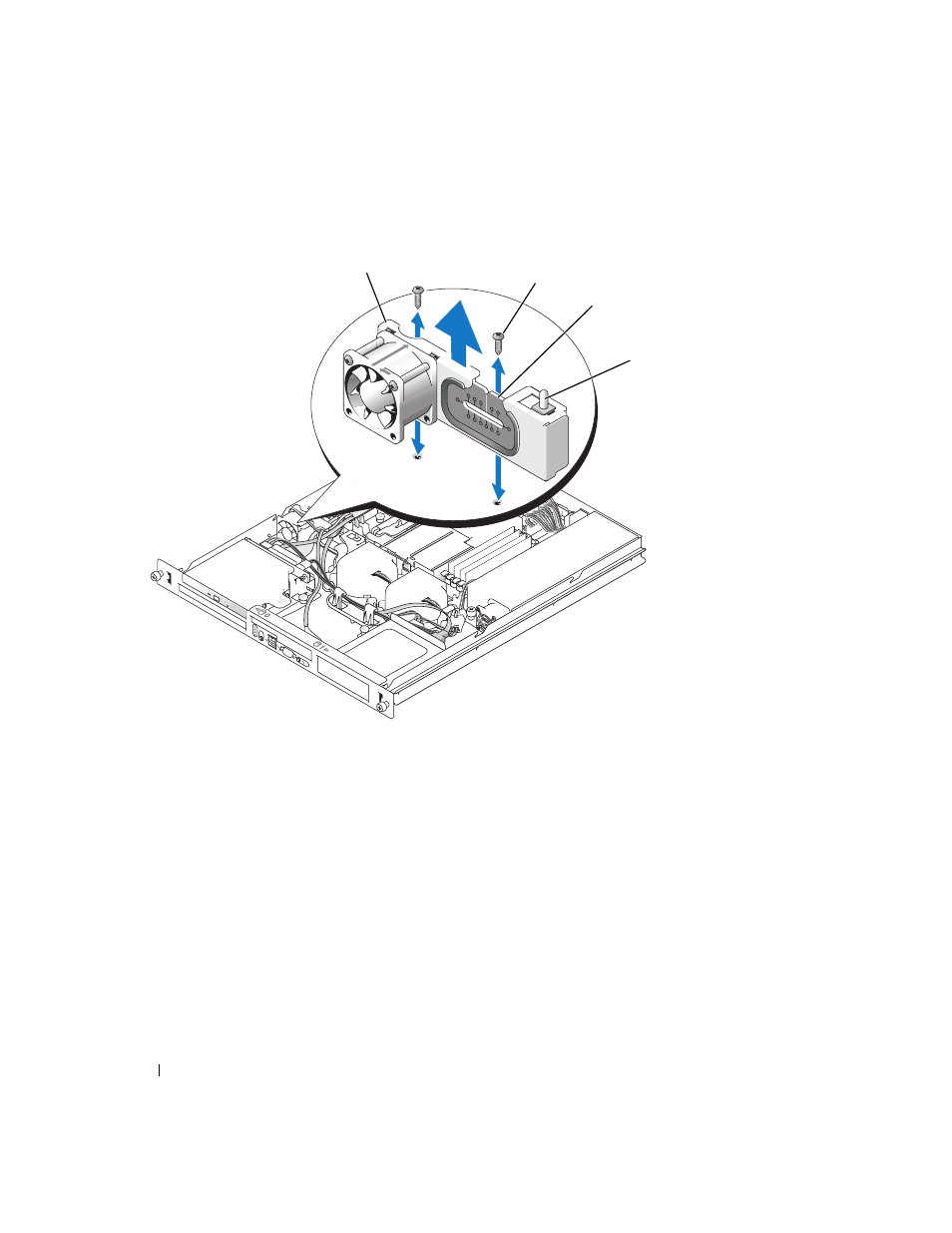

Figure 3-12. Installing and Removing the PCI Fan Assembly
Installing the PCI Fan Assembly
1 Align the fan assembly with the screw holes on the chassis and use a #2 Phillips screwdriver to install
the two mounting screws. See Figure 3-12.
2 Connect the fan’s power cable to the PCI FAN connector on the system board. See Figure 6-2 for the
location of the connector.
3 Connect the intrusion switch cable to the INTRUSION_SWITCH connector on the system board.
See Figure 6-2 for the location of the connector.
4 Route all interface connectors through the panel cutout.
5 Connect the hard-drive connectors to the SATA connectors on the system board or to the SAS
controller, if present. See "Installing a Hard Drive" on page 56.
1 PCI fan assembly 2 screws (2) 3 panel cutout
4 chassis intrusion switch
1
2
4
3
