62

Installing System Components

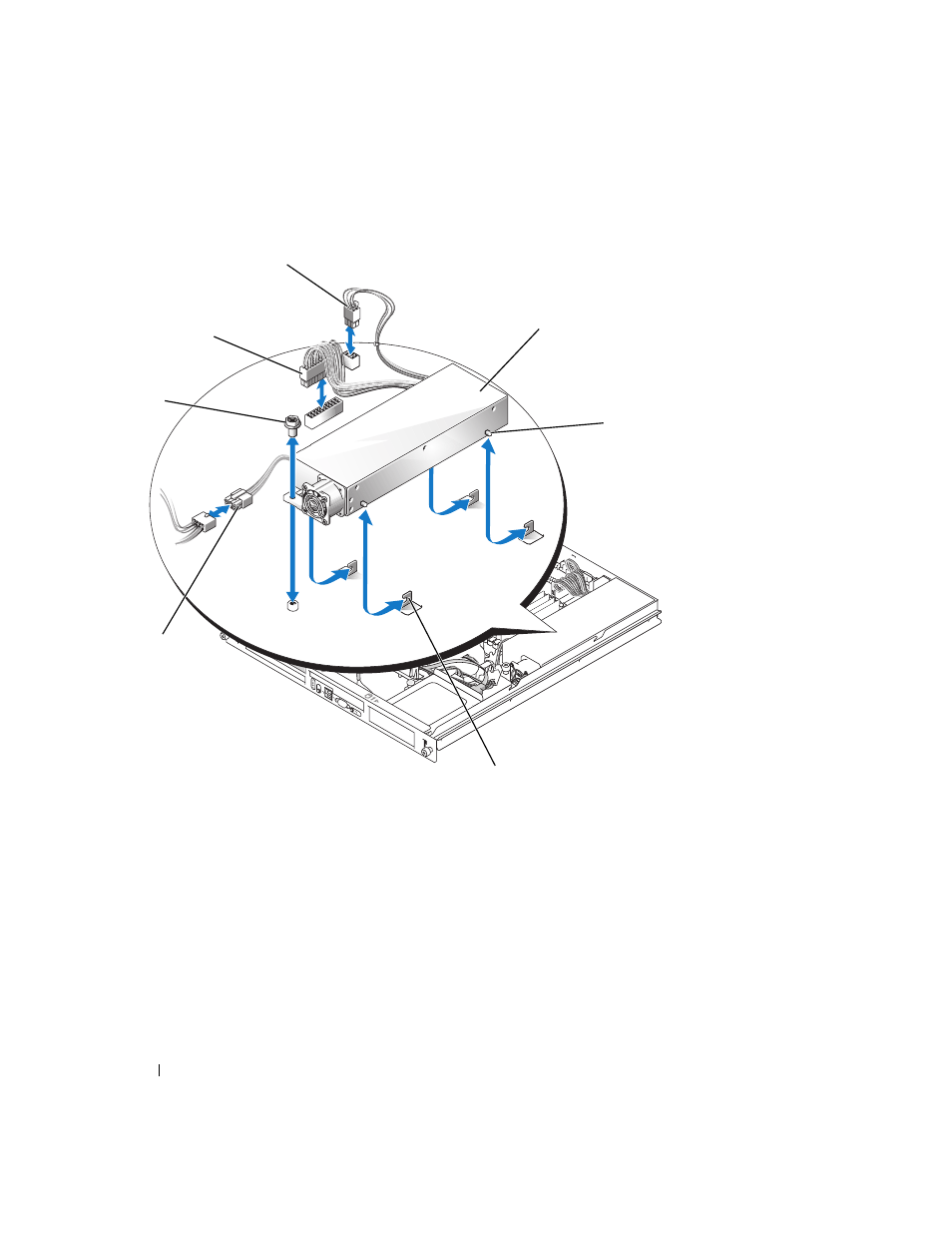

Figure 3-13.

Installing and Removing the Power Supply

Installing the Power Supply

1 Lower the power supply into the chassis and slide it backward until the four pins on the power supply

are engaged into the securing brackets.

2 Using a #2 Phillips screwdriver, install the screw at the front of the power supply that secures the

power supply to the chassis.

1

screw

2

P1 connector

3

P2 connector

4

power supply

5

pins (4)

6

securing brackets (4)

7

P3 connector

7

5

6

1

2

3

4
