Jumpers and Connectors

97

Jumpers and Connectors

This section provides specific information about the system jumpers and describes the connectors
on the various boards in the system.

System Board Jumpers

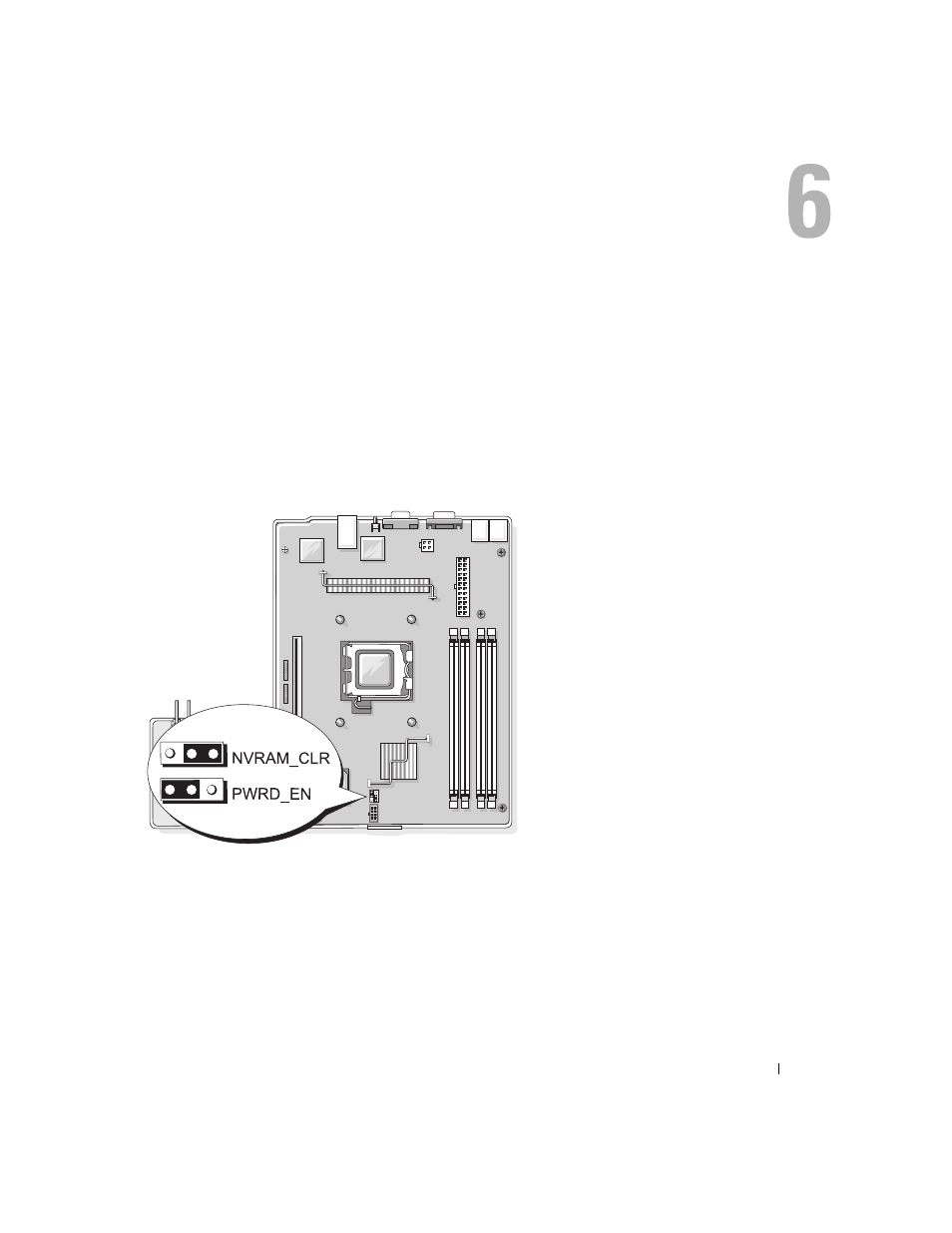

Figure 6-1 shows the location of the configuration jumpers on the system board. Table 6-1 lists the
jumper settings.

Figure 6-1.

System Board Jumpers
