74
Installing System Components

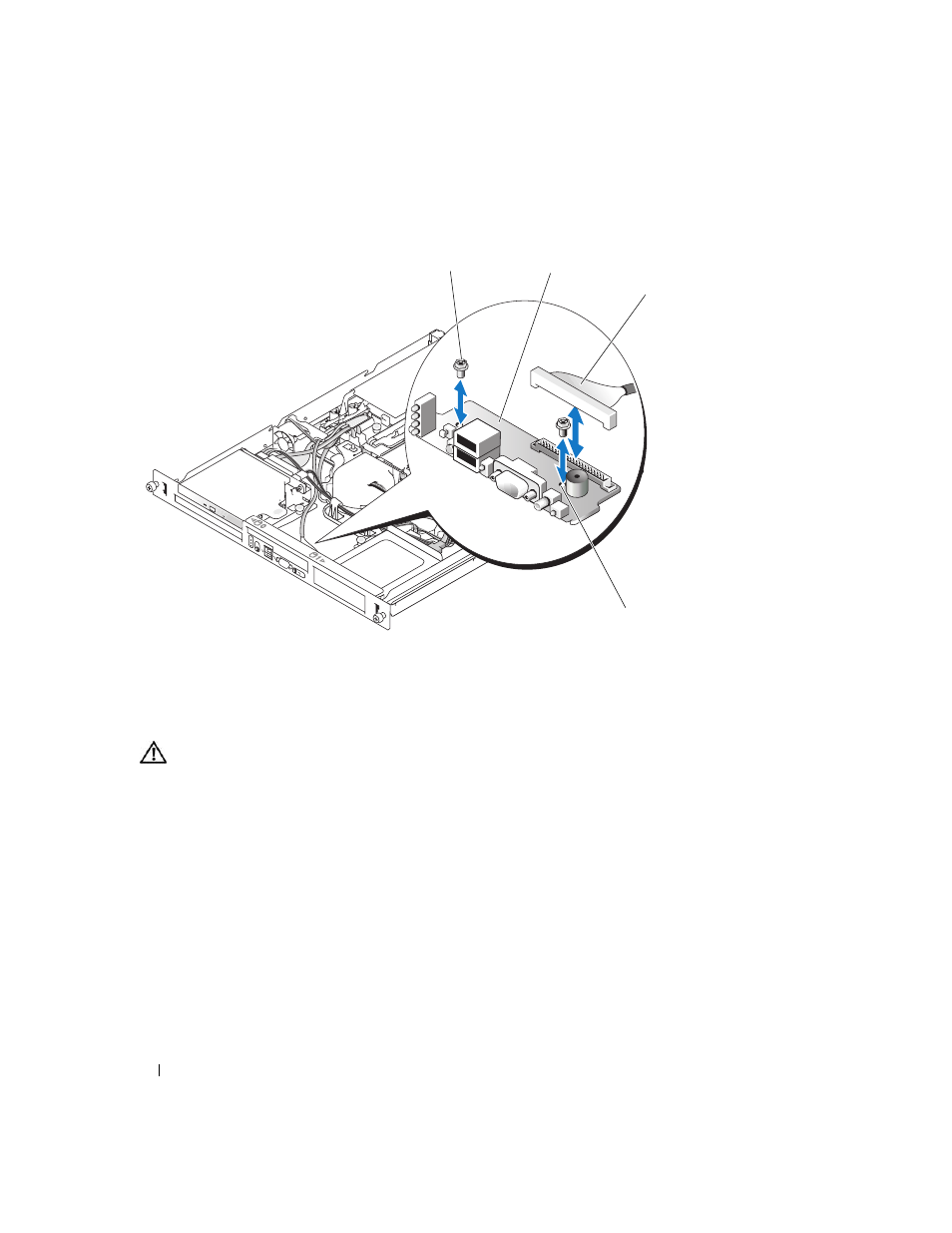

Figure 3-20. Installing and Removing the Control Panel Assembly
Installing the Control Panel Assembly
CAUTION:
Only trained service technicians are authorized to remove the system cover and access any of the
components inside the system. Before performing any procedure, see your Product Information Guide for
complete information about safety precautions, working inside the computer and protecting against electrostatic
discharge.
1 Align the control panel assembly’s mounting holes with the chassis mounting holes. See Figure 3-20.
2 Using a #2 Phillips screwdriver, install the two screws that secure the control panel assembly to the
chassis. See Figure 3-20.
3 Connect the control panel cables. See Figure 3-20.
4 Close the system. See "Closing the System" on page 47.
1 control panel assembly 2 screws (2) 3 cables
4 mounting holes (2)
2 1
4
3
