20

About Your System

Eleven LEDs (two iSCSI In link speed/activity, two iSCSI In link duplex
mode, two Ethernet link/speed, battery fault, SAS link fault/connectivity,
cache active, controller fault, and controller power)

One SAS Out port connector

Debug port

For a description of each component on the front panel of the RAID
controller module, see Table 1-4. For an explanation of how to connect the
enclosure using the RAID controller module ports, see the PowerVault
MD3000i Installation Guide.

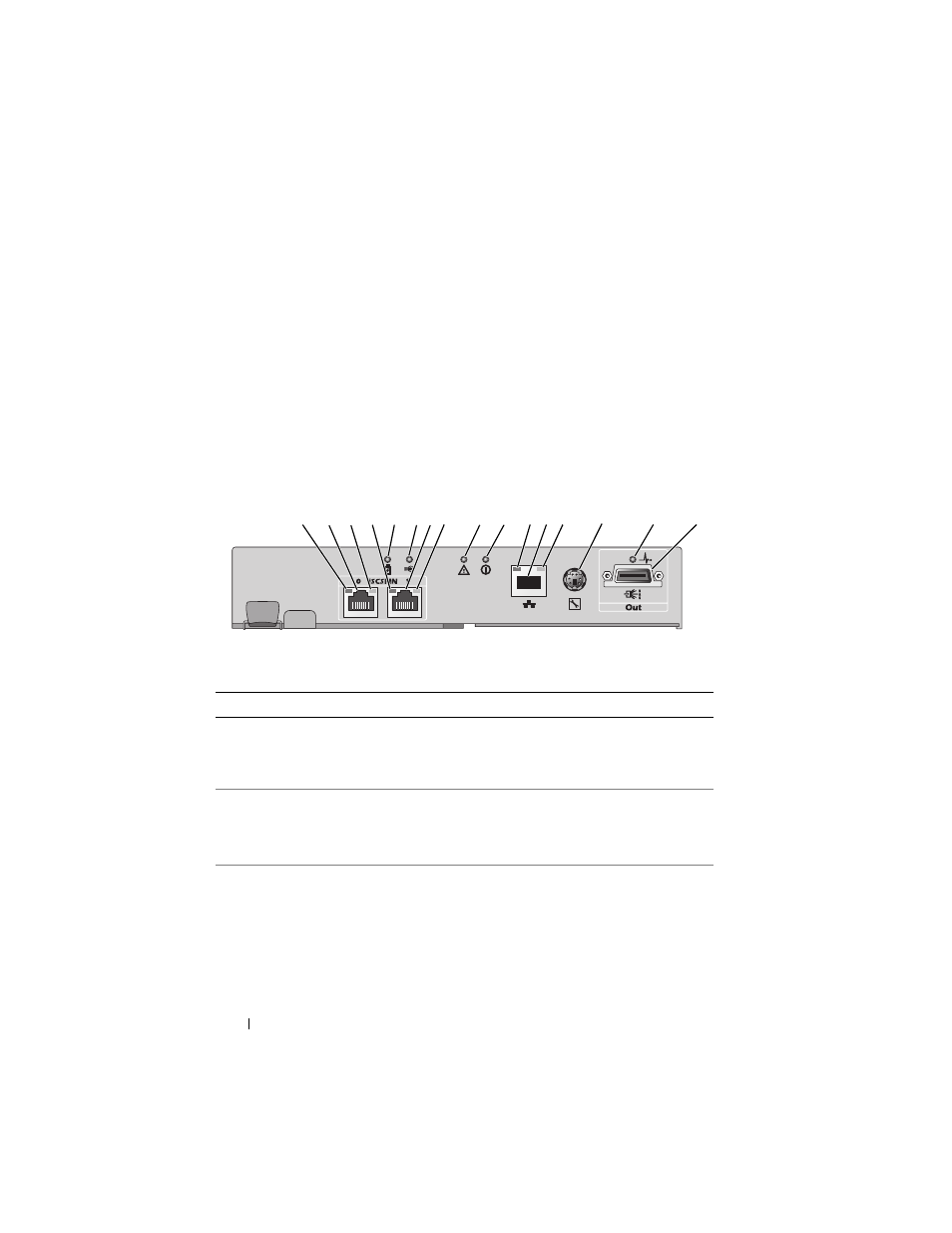

Figure 1-5.

RAID Controller Module External Panel (front view)

Table 1-4.

RAID Controller Module Component Functions

Item Component

Icon

Function

1

iSCSI In Port 0 Link
Speed/Activity
Status LED

Green: Link is operating at 1000 Mbps.

Amber: Link is operating at 100 Mbps.

Off: iSCSI connection is not active.

2

iSCSI In Port 0

In-0

Provide host-to-controller iSCSI
connection. If LED is solid, there is no
activity on the link. If the LED is blinking,
there is activity on the link.

3

iSCSI In Port 0 Link
Duplex Mode

Green: Full-duplex mode.

Off: Half-duplex mode.

NOTE:

Half-duplex mode is supported only if

the link speed is 100Mbps.

1

6

8

9

10

11

13

15

16

12

14

4

2

3

5

7
