Installing Enclosure Components

69

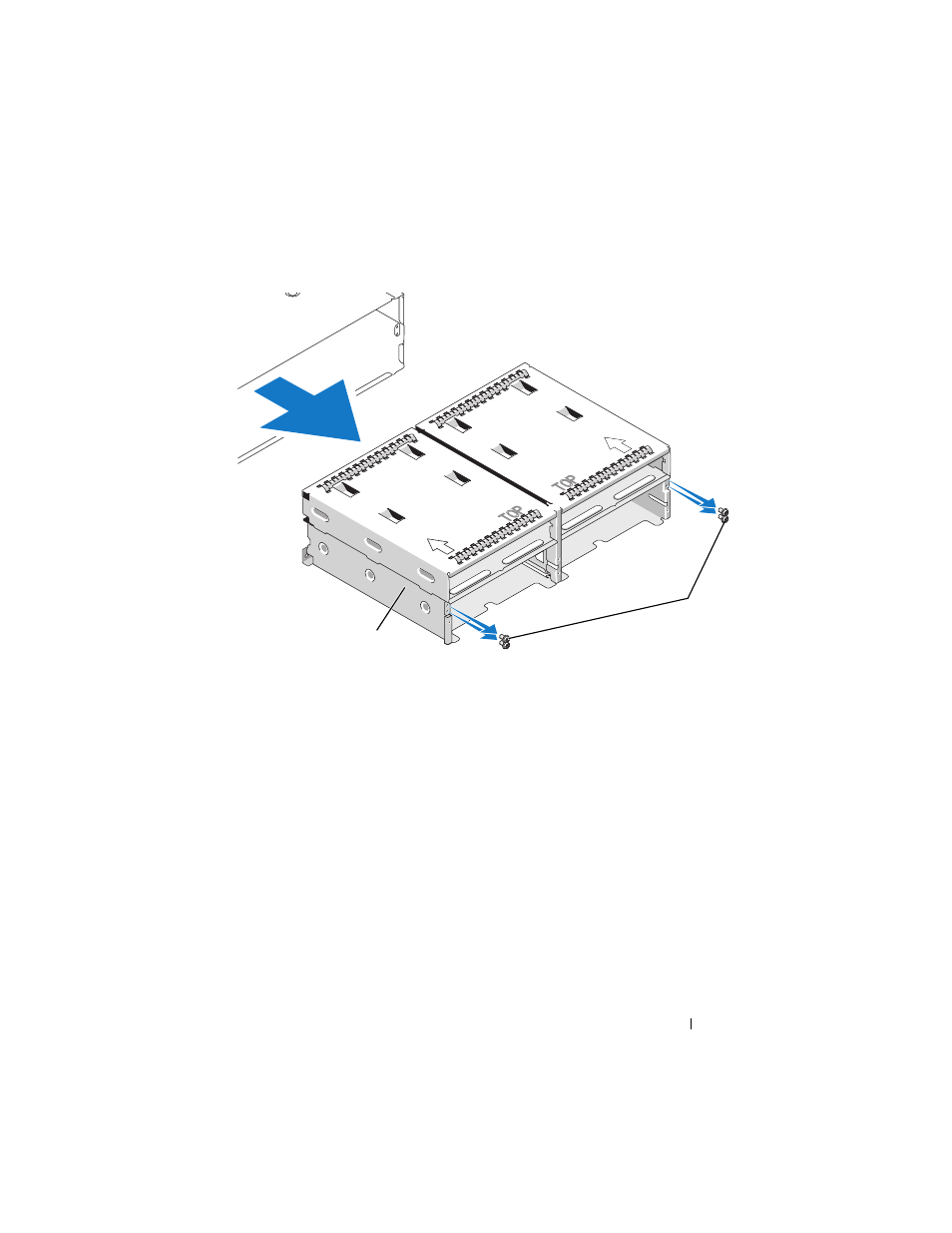

Figure 3-8.

Removing and Replacing the Controller/Power Supply Cage

5 Slide the controller/power supply cage out of the enclosure and place it

aside.

6 Reaching into the enclosure chassis from the back, carefully disconnect

the midplane from the control panel and lift it out of the enclosure (see
Figure 3-9).

7 To re-install the midplane, reverse the previous steps.

1

Phillips screws (4)

2

controller/power supply cage

2

1
