Installing Enclosure Components
59

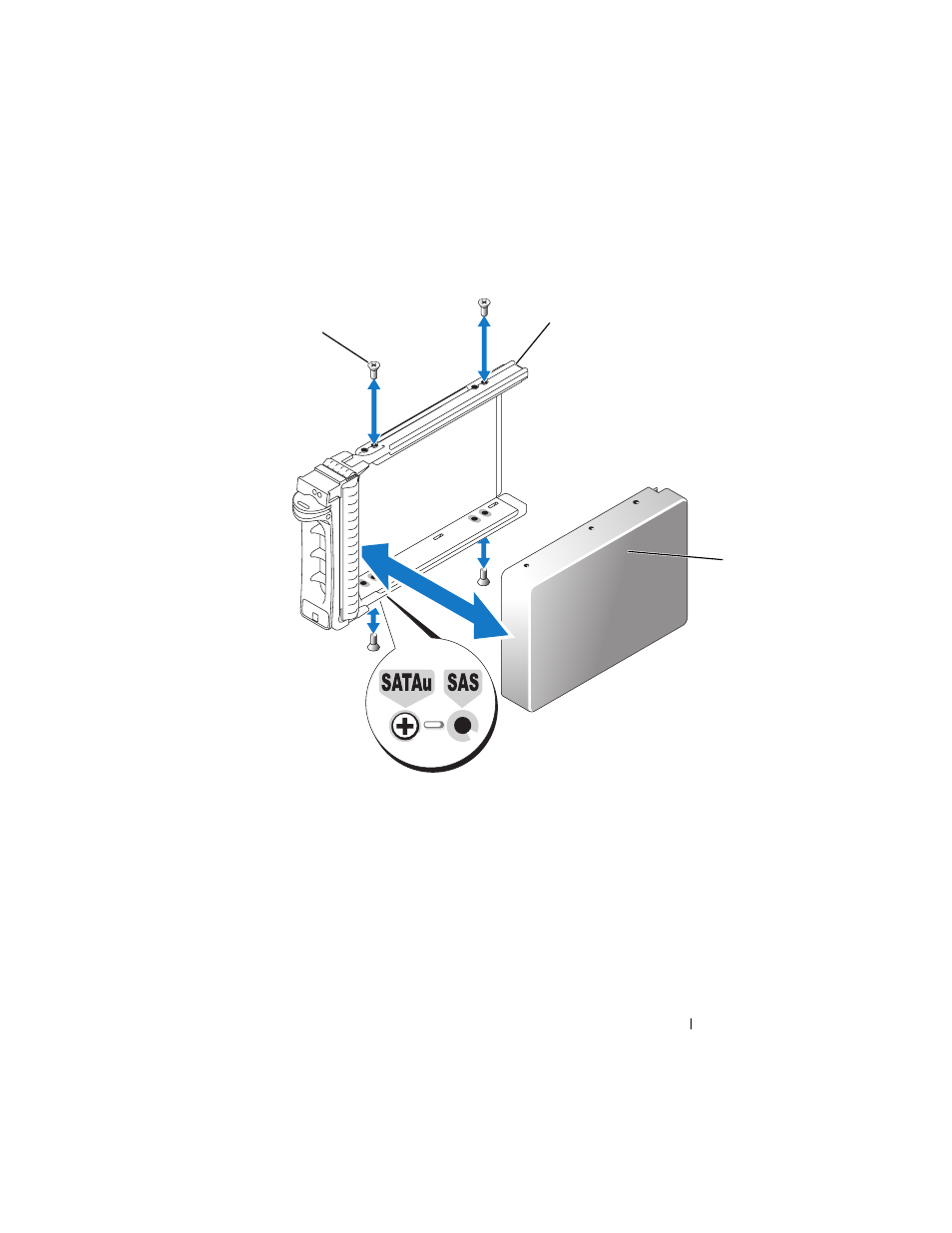

Figure 3-3. Installing a SAS Physical Disk in the Carrier
2 With the physical disk carrier handle open, carefully align the channel on
the disk carrier guide rail with the appropriate disk slot keying feature on
the chassis face plate, and insert the disk (see Figure 3-2).
3 Push the physical disk carrier into the slot until the bottom of the open
carrier handle makes contact with the chassis face plate.
1 screws (4) 2 physical disk carrier 3 physical disk
