Installing Enclosure Components
61

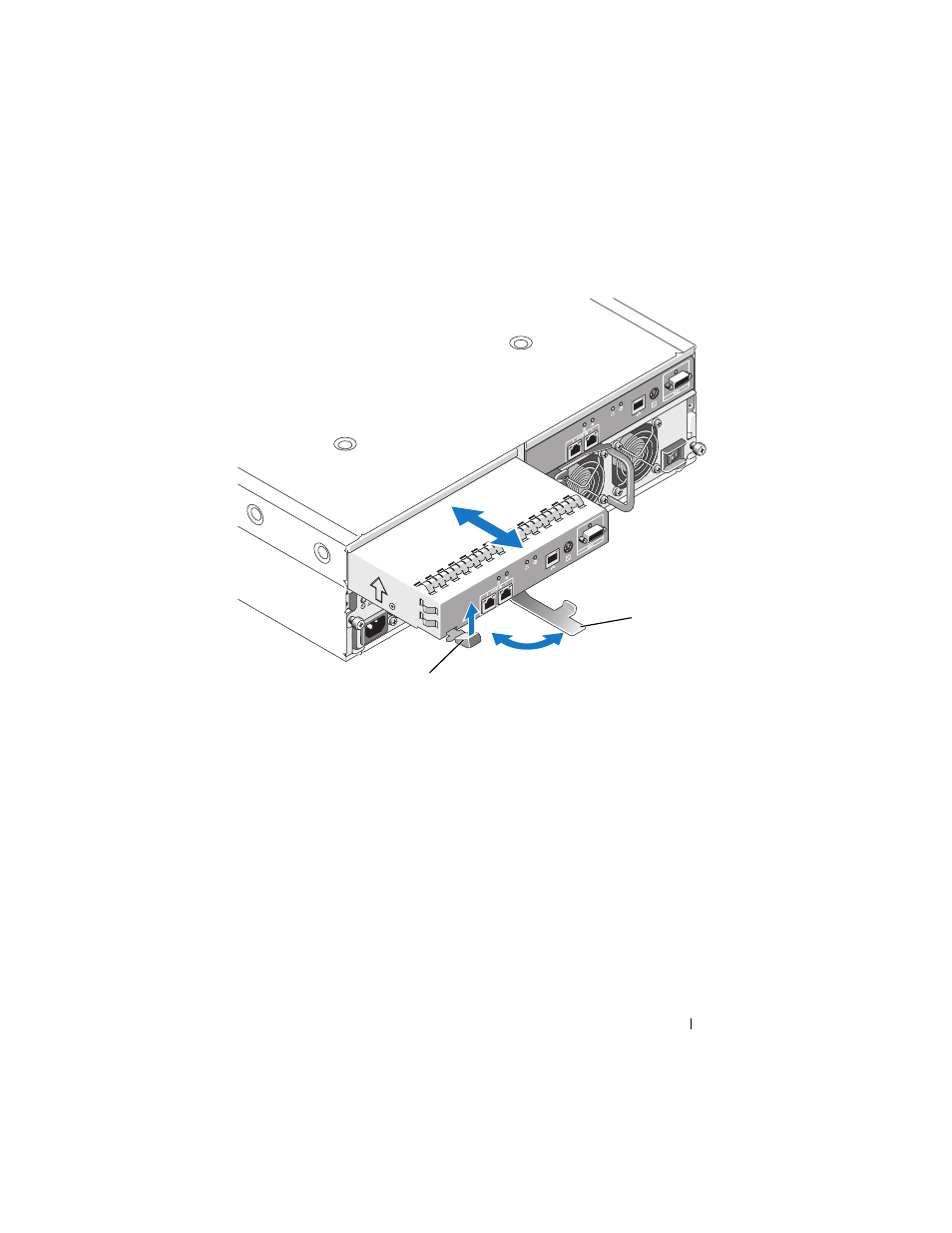

Figure 3-4. Removing and Installing a RAID Controller Module
Installing a RAID Controller Module
1 Carefully insert the RAID controller module into the empty module slot.
2 Push the module to the back of the slot until it is firmly seated in the
backplane connector (see Figure 3-4).
3 Push the release lever in (towards the enclosure) until the module is
retracted into the slot and is secure.
For information on controller connections and cabling, see the PowerVault
MD3000i Installation Guide.
1 release tab 2 release lever
