Installing Enclosure Components
67

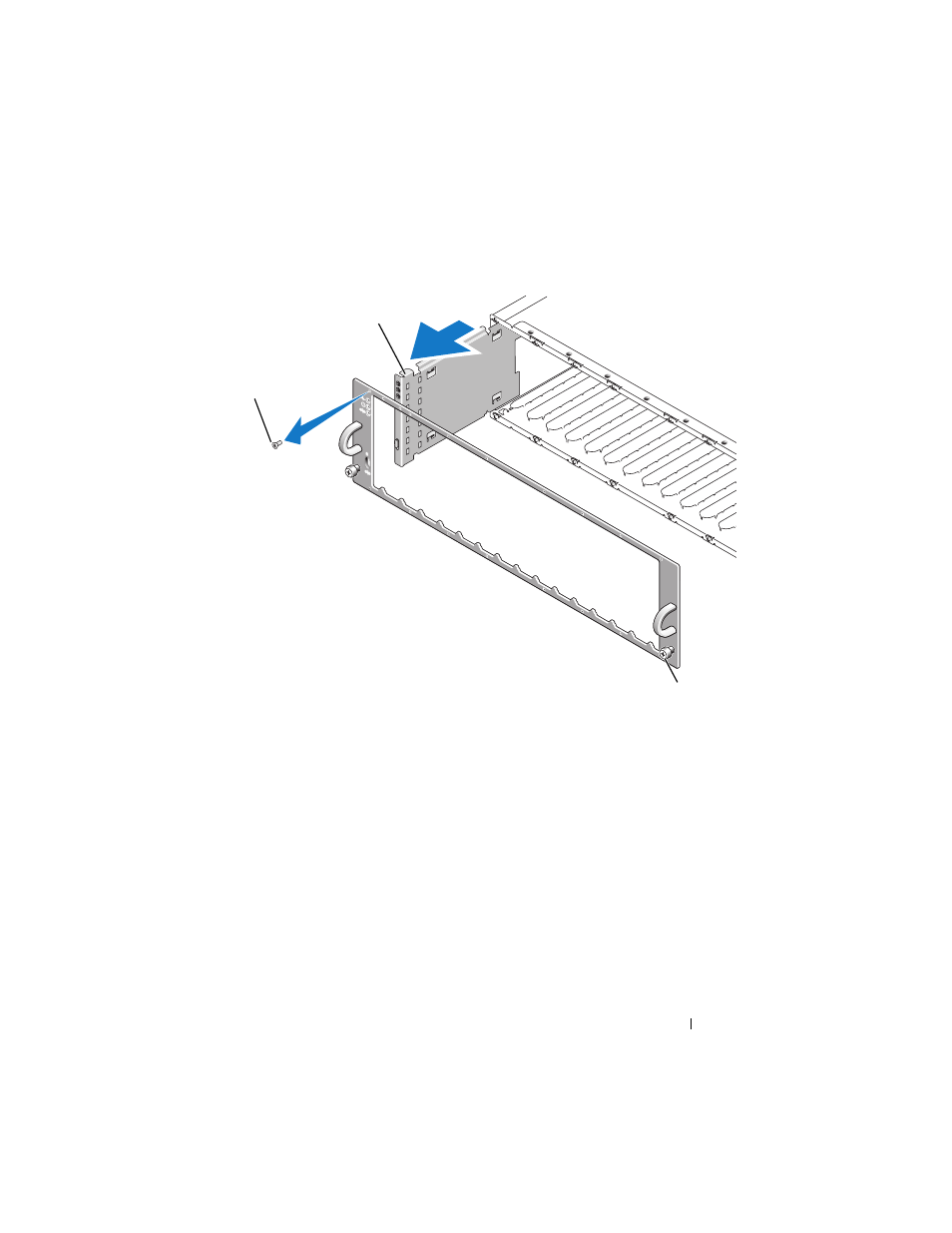

Figure 3-7. Removing and Replacing the Control Panel
6 Using a Torx T10 driver, remove all 16 screws from the front faceplate of
the enclosure as shown in Figure 3-7.
7 Remove the front faceplate from the enclosure and place it on a flat,
secure surface.
8 Slide the control panel assembly straight out from its connector on the
backplane (see Figure 3-7).
Installing the Control Panel
1 Align the top and bottom tabs on the control panel with the insert slots on
the edge of the chassis (see Figure 3-7).
1 faceplate screws (16) 2 control panel 3 thumbscrews
3
1
2
