52
Installing System Components

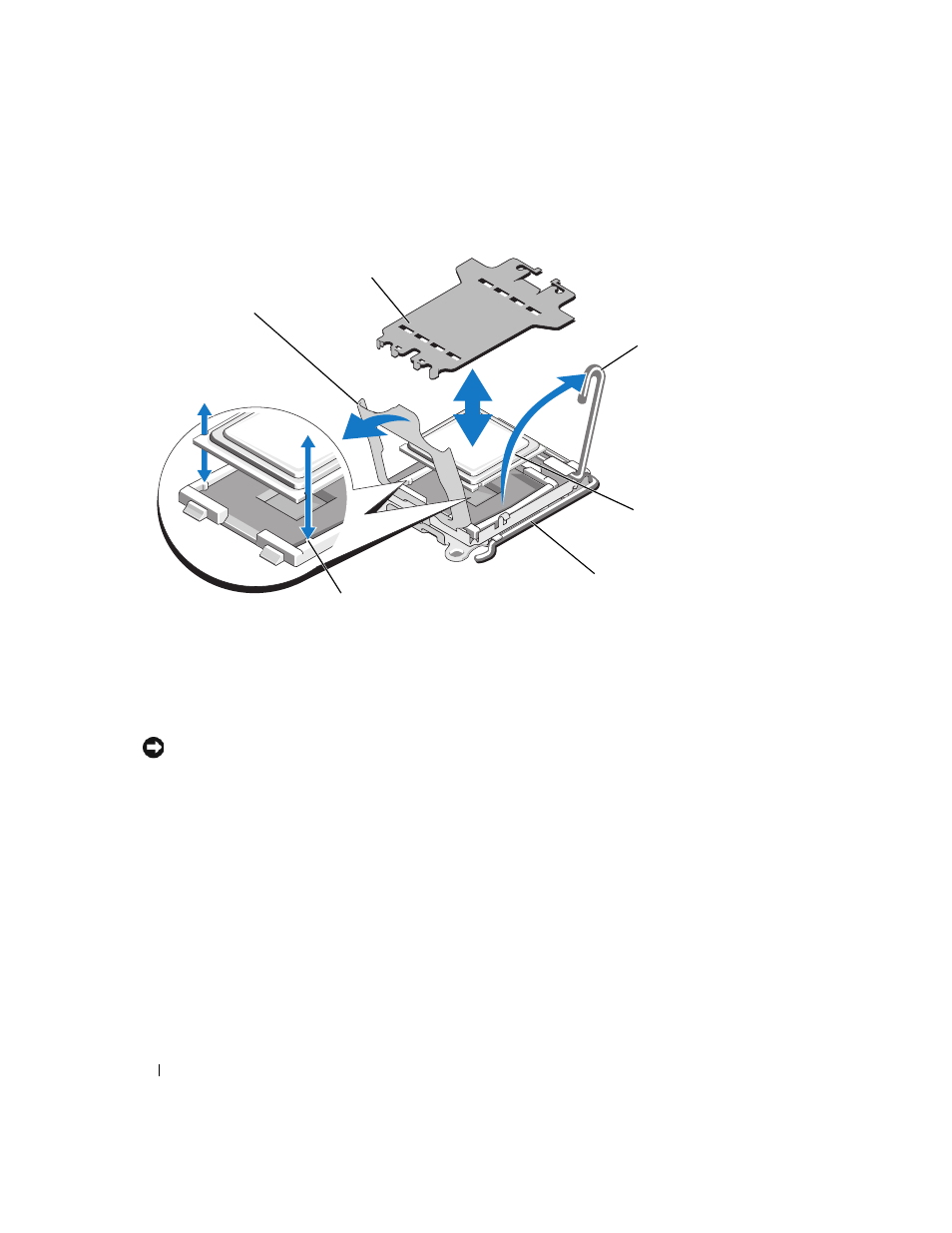

Figure 3-10. Installing and Removing the Processor
11 Open the processor shield and then lift the processor out of the socket. Leave the release lever up so
that the socket is ready for the new processor.
NOTICE:
Be careful not to bend any of the pins on the LGA socket when removing the processor. Bending the pins
can permanently damage the socket and system board.
Installing a Processor
1 Unpack the new processor.
2 Align the processor with the socket keys on the ZIF socket. See Figure 3-10.
3 If you are adding a second processor to an empty socket, perform the following steps:
a Remove the protective cover from the processor socket. See Figure 3-10.
b Pull the socket-release lever 90 degrees upward. See Figure 3-10.
c Lift the processor shield. See Figure 3-10.
1 processor shield 2 socket cover (remove before
adding second processor) 3 socket-release lever
4 processor 5 ZIF socket 6 socket key (2)
2
4
3
5
1
6
