Installing System Components
43

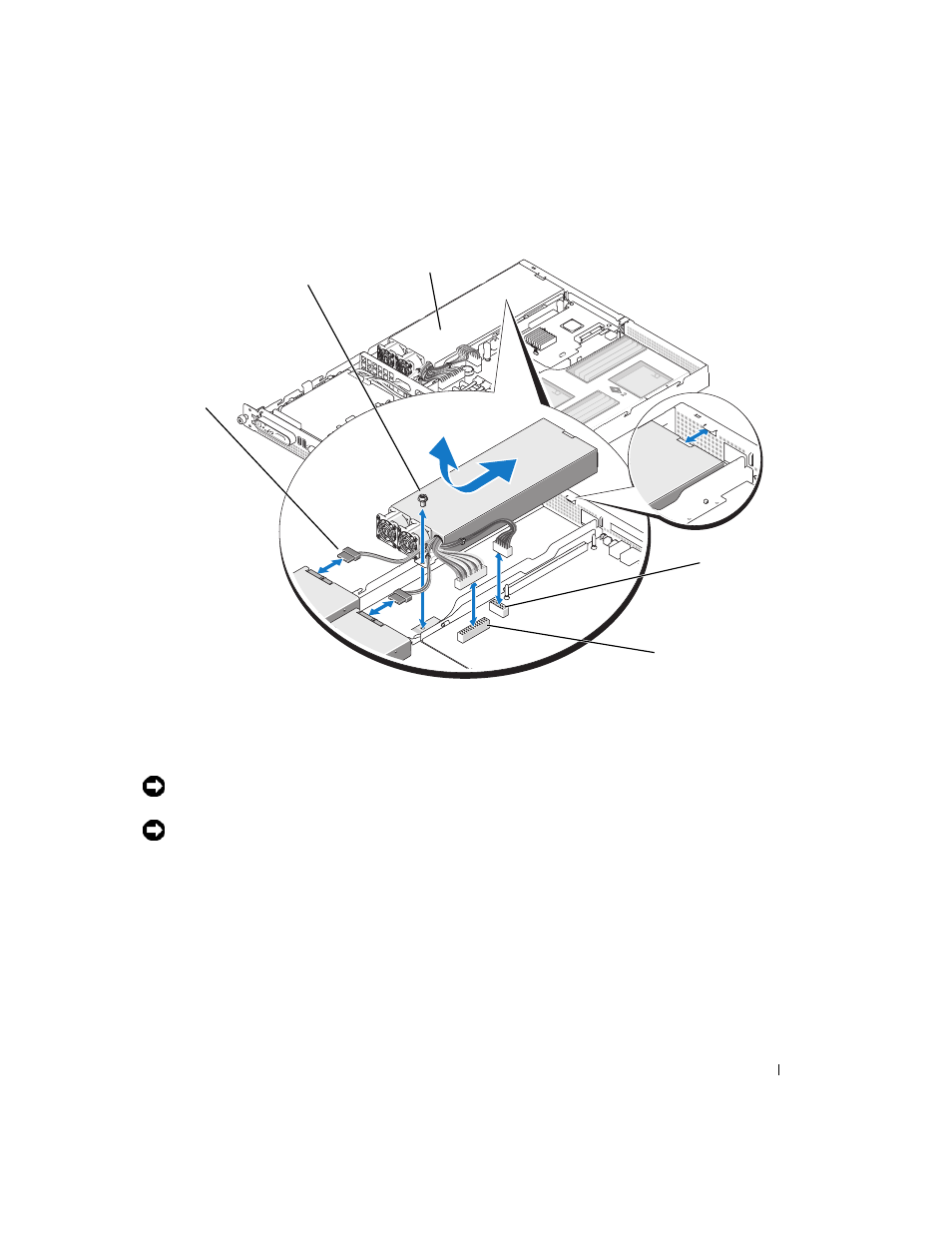

Figure 3-6. Removing and Installing a Power Supply
Installing the Power Supply
NOTICE:
On a rack system, you may need to temporarily unlatch and lift the cable management arm. For
information about the cable management arm, see the system’s Rack Installation Guide.
NOTICE:
For more information about the power cable retention bracket, see Getting Started With Your System.
1 Lower the power supply into the system and slide the power supply into place against the back panel of
the system. See Figure 3-6.
2 Reinstall the screw that secures the power supply to the chassis.
3 Connect the two power supply cables to the POWER1 and POWER2 connectors on the system board.
See Figure 3-6.
4 If applicable, route the hard drive power cables through the oval opening in the chassis brace and
connect them to the hard drives.
5 Close the system. See "Closing the System."
1 hard-drive power cables (2) 2 retention screw 3 power supply
4 POWER2 connector 5 POWER1 connector
3
5
4
1
2
