Dell XPS One 2710 (Mid 2012) User Manual
Page 129
Removing
the
Middle
Cover |
129
7
Remove the following cables from the routing guides on the middle frame:
•
LVDS cable
•
Display-power cable
•
Infrared-receiver cable
•
Camera cable
•
Hard-drive power and data cable
•
Optical-drive power and data cable
•
Converter cable
•
Power-button cable
•
Display-backlight cable
8

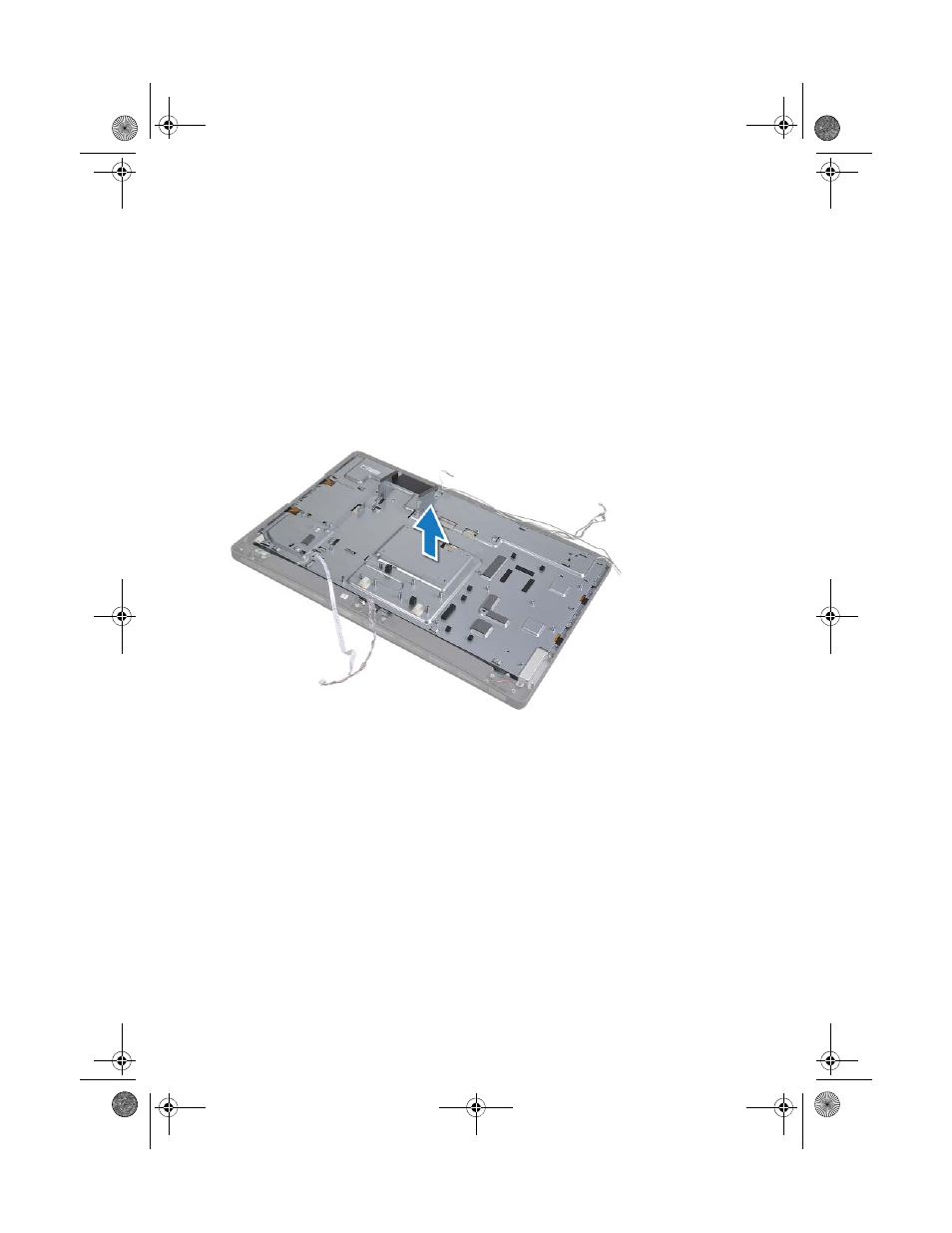

Lift the middle cover off the computer base.
OM_Book.book Page 129 Friday, April 27, 2012 3:23 PM
