Dell XPS One 2710 (Mid 2012) - Manual (Page 100)

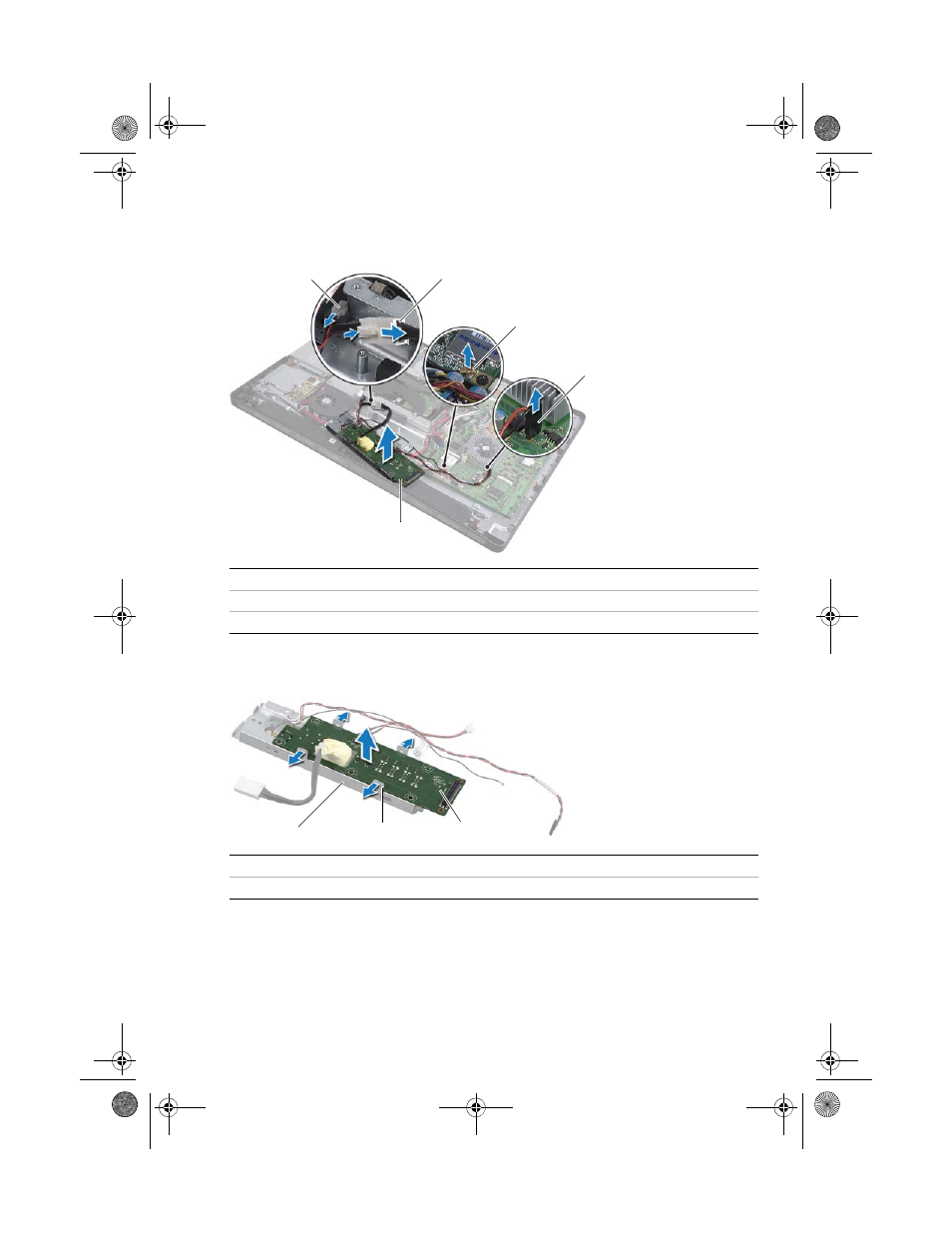

100 | Removing the I/O-Board
5 Remove the TV-in port cable and the infrared-emitter port cable from their
routing guides.
6 Lift the I/O-board assembly off the computer base.
7 Push the securing tabs outward to release the I/O board and then lift the I/O board
away from the I/O-board bracket.
1 power-supply light cable 2 power-port cable
3 TV-in port cable 4 infrared-emitter port cable
5 I/O-board assembly
1 I/O-board bracket 2 securing tabs (4)
3 I/O board
1
3
2
4
5
1 2 3
