Adding and Replacing Parts
1 Follow the procedures in "Before You Begin" on page 143.
2 Remove the computer cover (see "Removing the Computer Cover" on
3 Locate the battery socket.
NOTICE:
If you pry the battery out of its socket with a blunt object, be careful not to
touch the system board with the object. Ensure that the object is inserted between
the battery and the socket before you attempt to pry out the battery. Otherwise, you
may damage the system board by prying off the socket or by breaking circuit traces
on the system board.
NOTICE:
To avoid damage to the battery connector, you must firmly support the
connector while removing the battery.
4 Support the battery connector by pressing down firmly on the positive side
of the connector.
5 While supporting the battery connector, press the battery tab away from
the positive side of the connector and pry the battery it up out of the
securing tabs at the negative side of the connector.
6 Properly dispose of the old battery. For more information, see your Product
Information Guide.

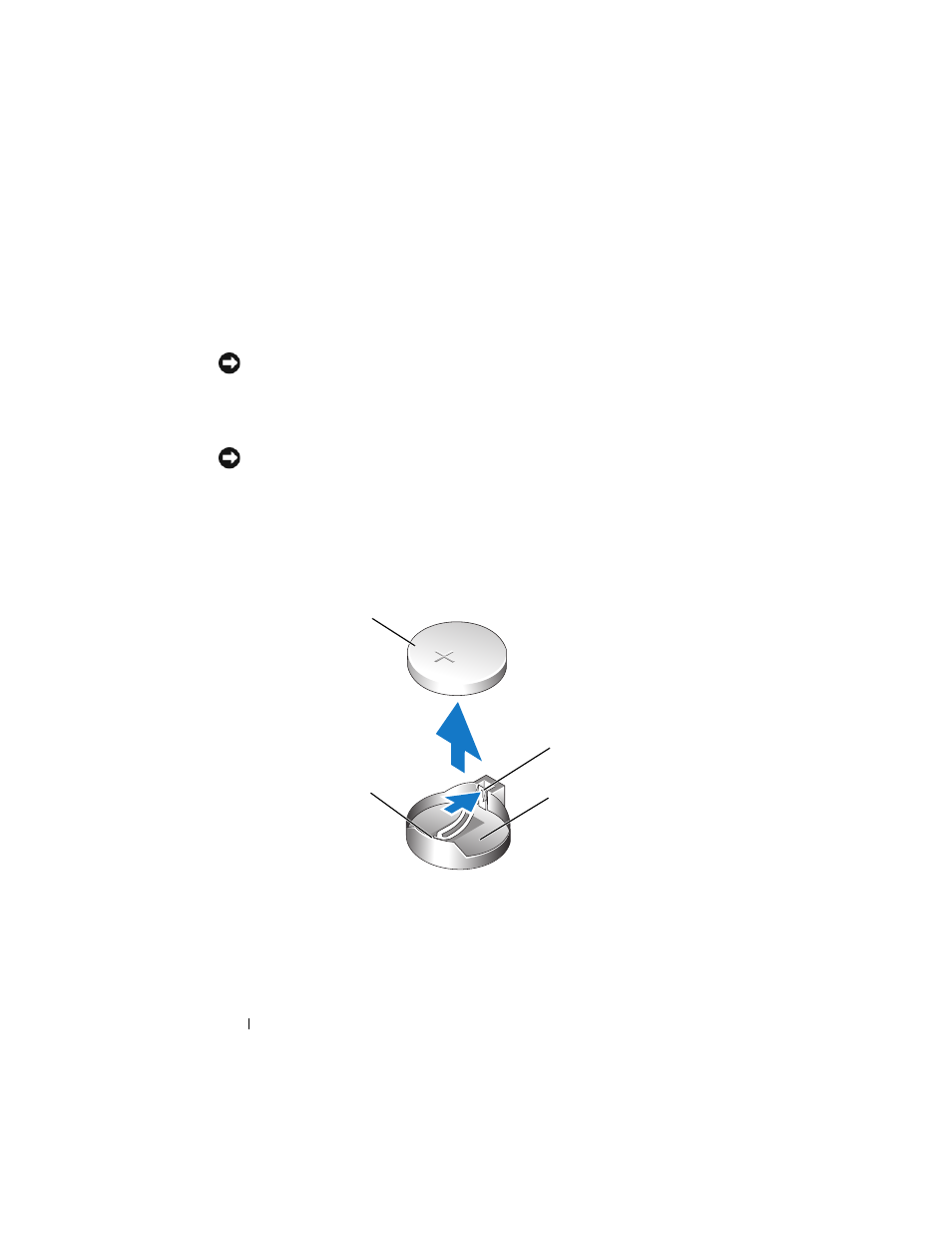

1
system battery
2
battery socket tab
3
battery socket
4
positive side of battery connector
2
4
1
3
