System Board 85
20 With the rear of the computer facing you, gently lift the system board assembly from the left side, then
slide the system board assembly to the left and lift up on the right side to raise the assembly out of the
computer.
NOTE: It may be necessary to press outward slightly on the plastic around the connectors on the left side of
the computer to lift the system board and remove it.

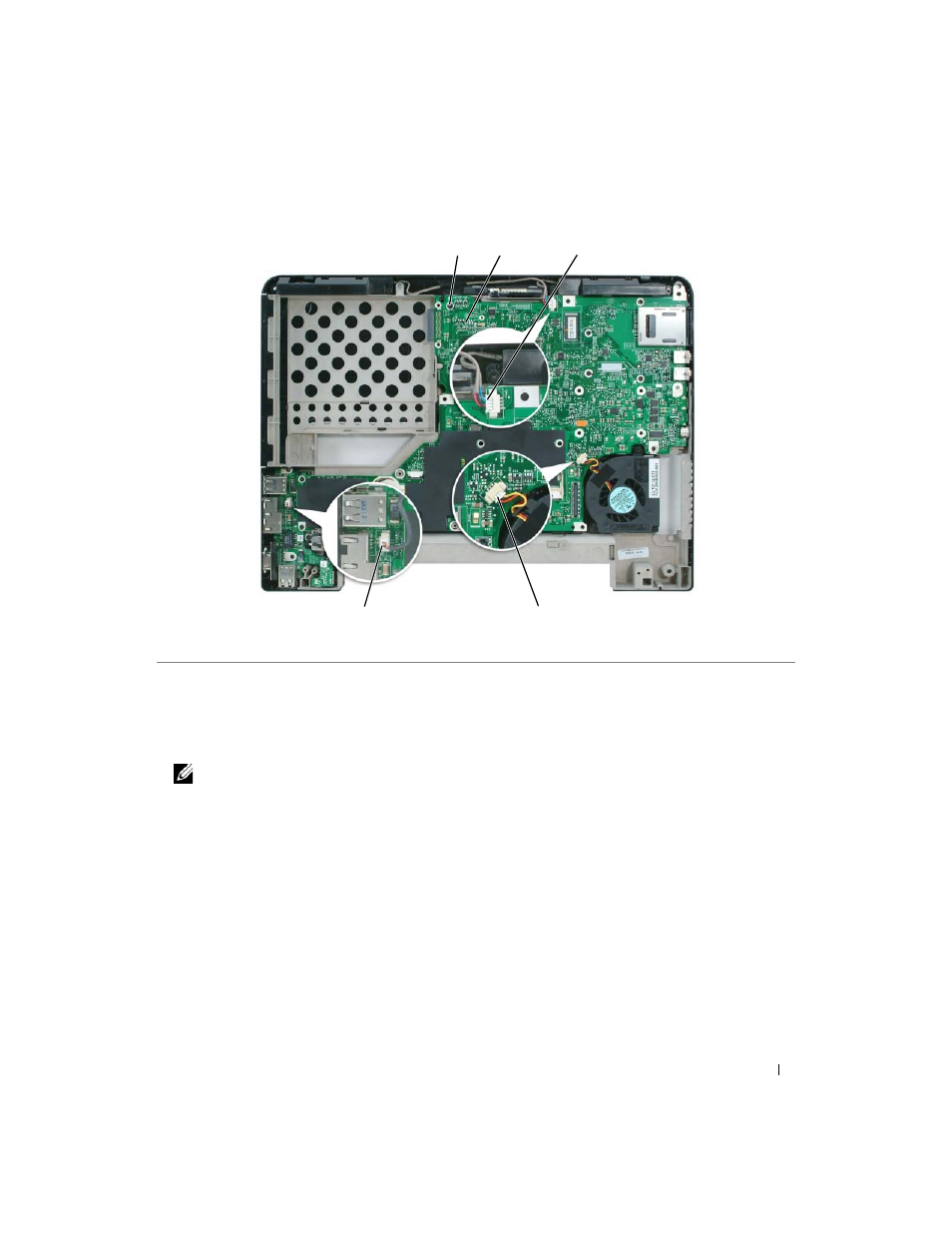

1 M2.5 x 5-mm screw 3 speaker connector 5 modem connector
2 system board 4 fan connector
1 3
4 5
2
