Microprocessor Thermal-Cooling Assembly 71
13
Microprocessor Thermal-Cooling Assembly
Removing the Microprocessor Thermal-Cooling Assembly
CAUTION: Before you perform any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as the back panel) on the computer.
1 Follow the instructions in "Preparing to Work Inside the Computer" on page 7.
2 Loosen the three captive screws securing the microprocessor module cover, then remove the cover
and set it aside.
3 Loosen the four captive screws securing the microprocessor thermal-cooling assembly to the
system board, then carefully lift the assembly straight out of the computer.

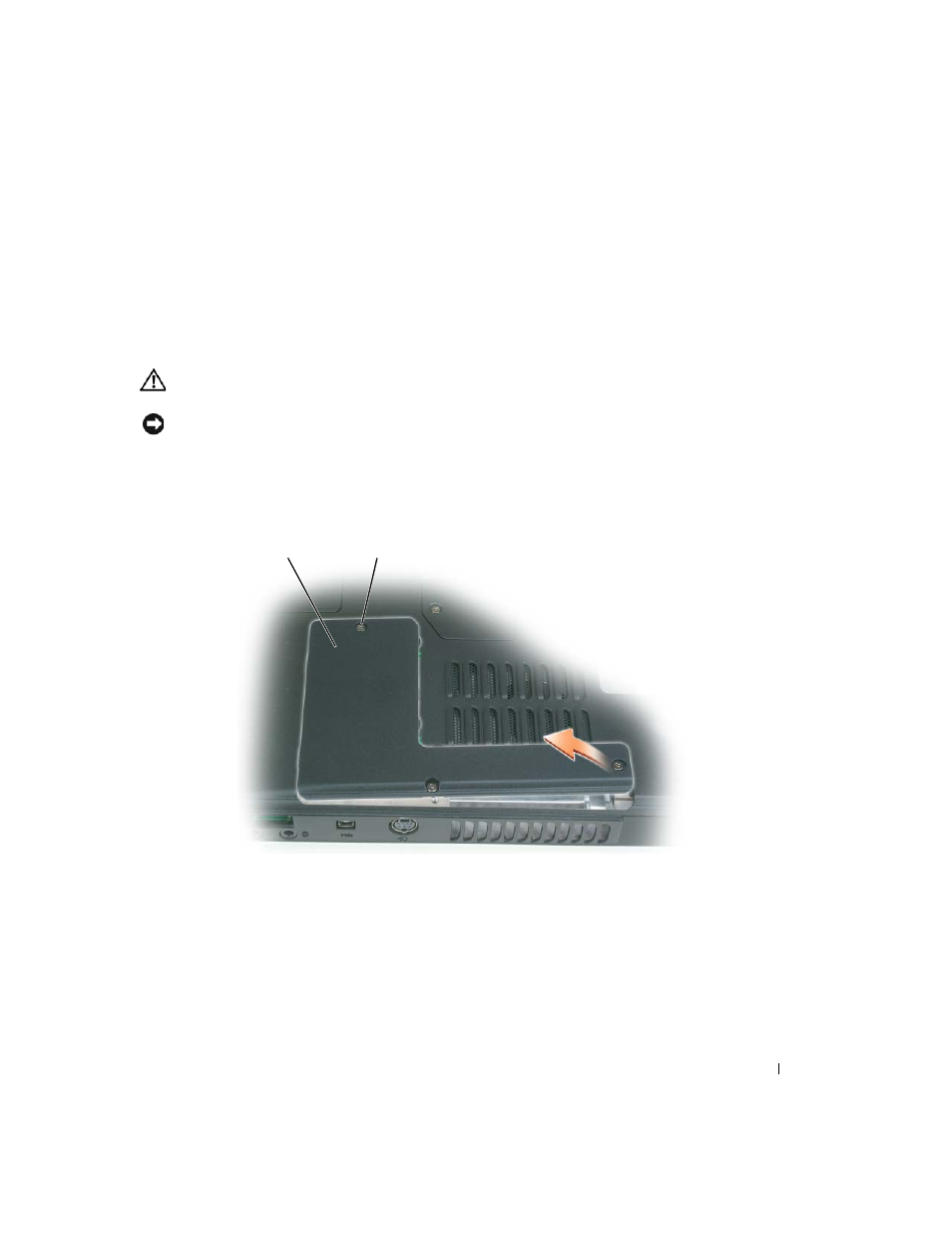

1 microprocessor module cover 2 captive screws (3)
2
1
