74 Fan
Replacing the Fan
CAUTION: Before you perform any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as the back panel) on the computer.
1 Follow the instructions in "Preparing to Work Inside the Computer" on page 7
2 Follow the instructions in "Removing the Fan" on page 73.
3 Align the three screw holes on the new fan with the corresponding screw holes on the system board.
4 Replace the three M2.5 x 5-mm screws to secure the fan to the base of the computer.
5 Connect the fan connector to the system board connector.
6 Replace the palm rest (see "Replacing the Palm Rest" on page 69).
7 Replace the
display assembly (see "Replacing the Display Assembly" on page 56).
8 Replace the keyboard (see "Replacing the Keyboard" on page 45).
9 Replace the hinge cover (see "Replacing the Hinge Cover" on page 42).
10 Replace the optical drive (see "Replacing the Optical Drive" on page 27).

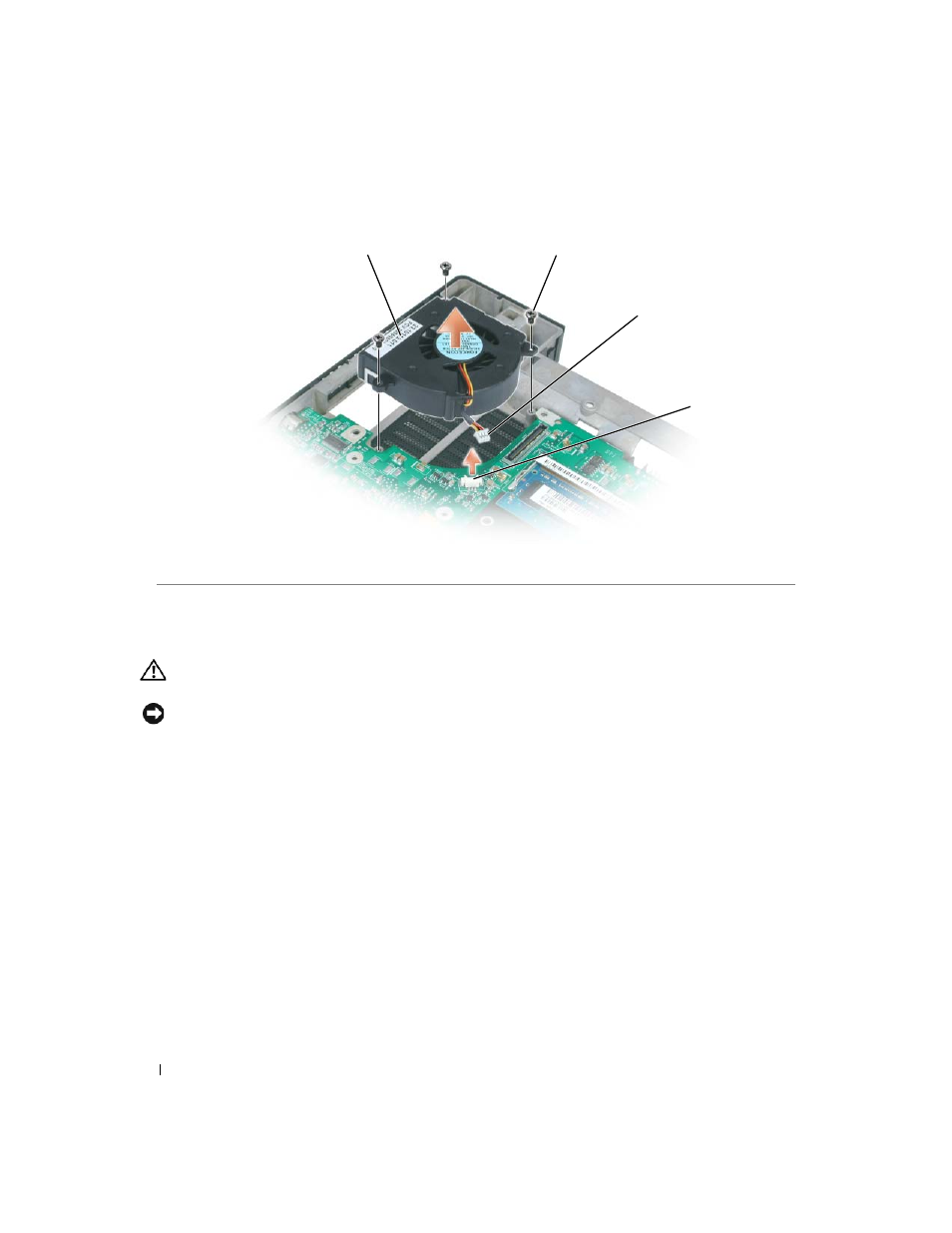

1 fan 2 M2.5 x 5-mm screws (3) 3 fan connector
4 system board connector
1 2
4
3
