72 Microprocessor Thermal-Cooling Assembly
Replacing the Microprocessor Thermal-Cooling Assembly
CAUTION: Before you perform any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as the back panel) on the computer.
1 Follow the instructions in "Preparing to Work Inside the Computer" on page 7
2 Follow the instructions in "Removing the Microprocessor Thermal-Cooling Assembly" on page 71.
3 Align the four captive screws on the new microprocessor thermal-cooling assembly with the screw holes
on the system board.
4 Tighten the four captive screws in the order that they are numbered to secure the microprocessor
thermal-cooling assembly to the system board.
5 Replace the microprocessor module cover.

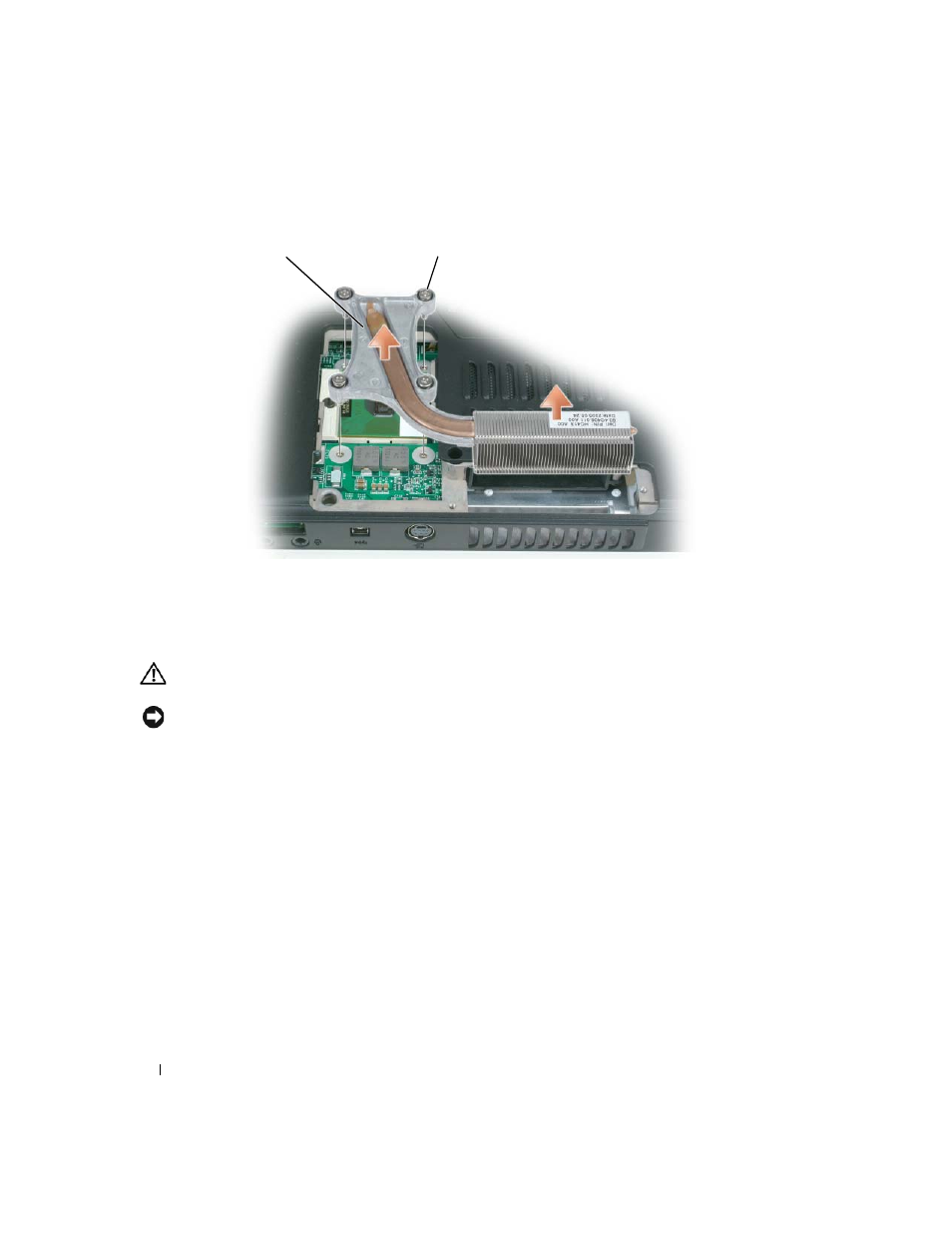

1 microprocessor thermal-
cooling assembly
2 captive screws (4)
2
1
