62 Display Assembly and Display Latch
9 Replace the keyboard (see "Replacing the Keyboard" on page 45).
10 Replace the hinge cover (see "Replacing the Hinge Cover" on page 42).
Display Latch
Removing the Display Latch
CAUTION: Before you perform any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as the back panel) on the computer.
1 Follow the instructions in "Preparing to Work Inside the Computer" on page 7.
2 Remove the hinge cover (see "Removing the Hinge Cover" on page 41).
3 Remove the keyboard (see "Removing the Keyboard" on page 43).
4 Remove display assembly (see "Removing the Display Assembly" on page 55).
5 Remove the display bezel (see "Removing the Display Bezel" on page 57).
NOTICE: The display latch spring is not physically connected to the latch assembly. Exercise care that the spring
is not lost.
6 Slightly rotate the left side of the display latch assembly away from the center of the top cover, then lift
up and to the left to remove the latch assembly.

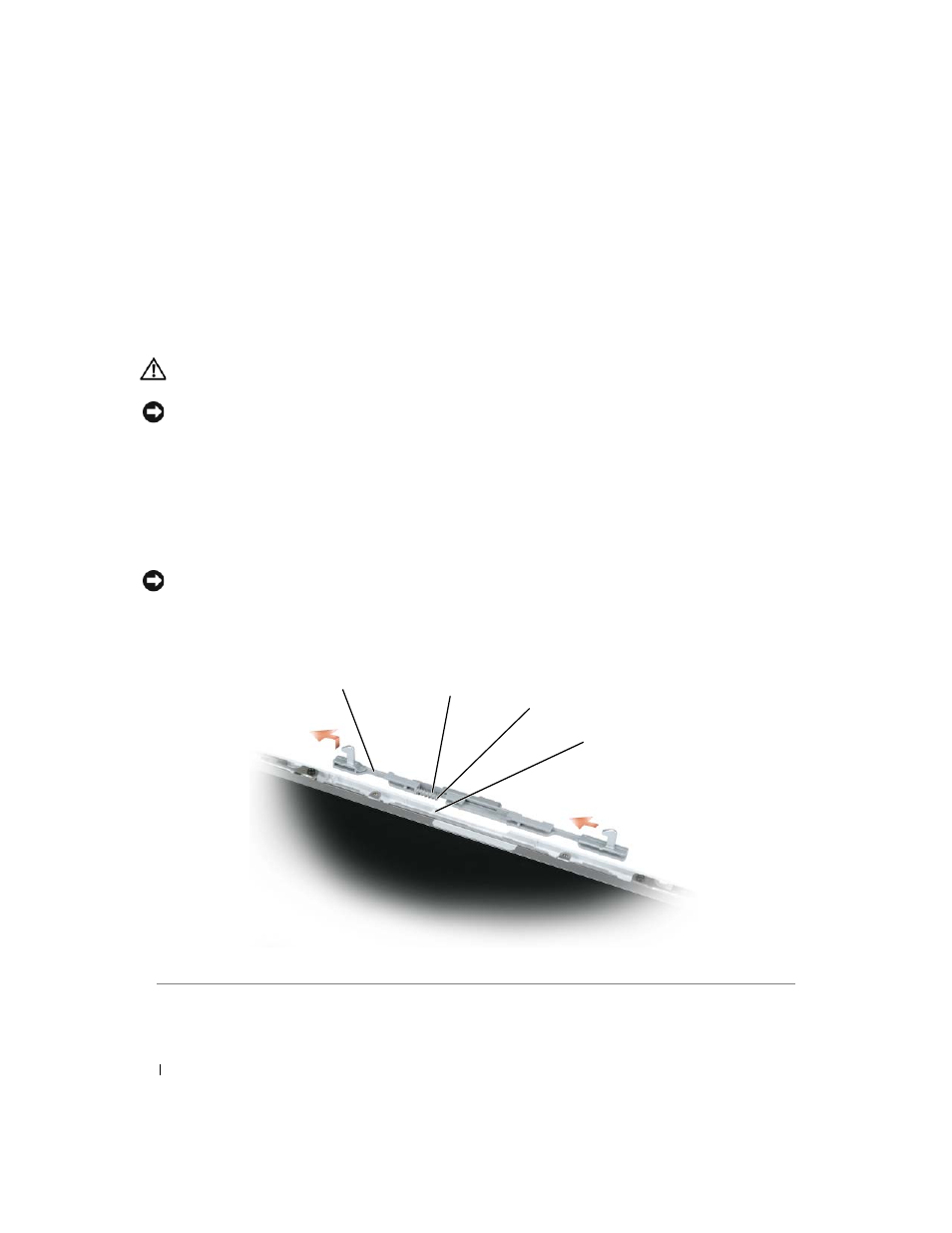

1 display latch assembly 2 latch spring 3 guide post
4 guide post slot
2
1
3
4
