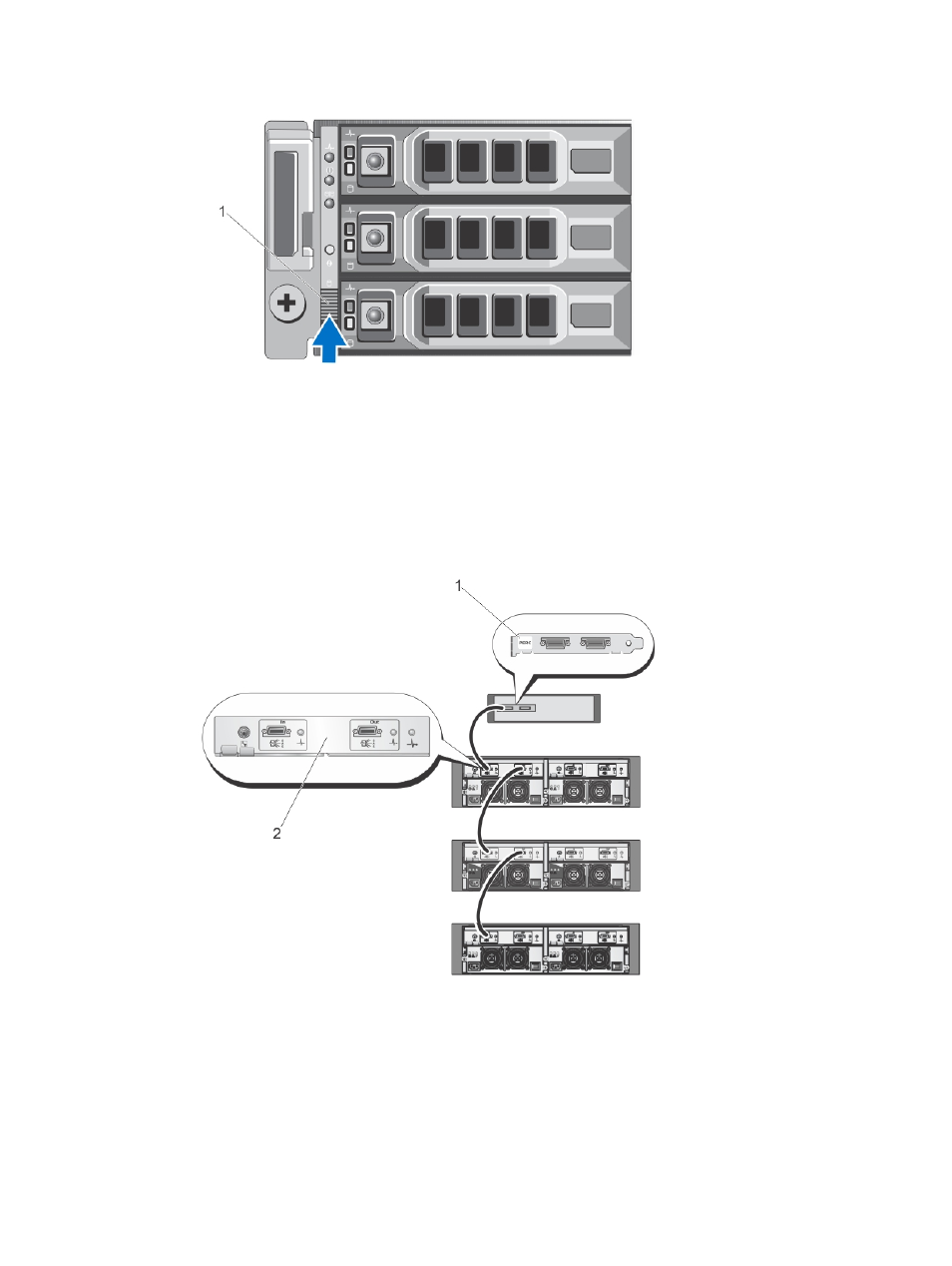

Figure 2. Setting the PowerVault MD1200 Storage Enclosure Configuration Switch
1. configuration switch
Connecting The Storage Enclosure To The PowerVault DL2 xxx System
Follow one of the steps below to connect the storage enclosure.
1. Connect the SAS data cable from the PowerEdge RAID Controller (PERC) installed in the PowerVault DL2 xxx system
to the primary Enclosure Management Module (EMM) SAS In port of the storage enclosure.
Figure 3. Connecting the SAS Cable From the PowerVault DL2 xxx System to the PowerVault MD1000 Storage Enclosure
1. PERC adapter
2. primary EMM
