Ra c k I n s t a l l a t i o n G u i d e 1-13
4 Install a stop block on the latch on the end of the opposite slide assembly (see
Figure 1-8).
The stop block prevents the cable-management arm from moving backward and
supports the weight of the arm with its load of installed cables.
The rack kit has two stop blocks: one for right-side mounting and one for left-side
mounting. You can only install the proper stop block.
5 Install the status-indicator cable plug into its connector.
6 Open the wire covers on the cable-management arm by lifting the center of the wire
over the top of the embossed round button on the front of the forward part of the arm,
and lifting the wire over the top of a similar round button on the back part of the arm.
The wire cover swings open to enable cables to be routed within the arm.

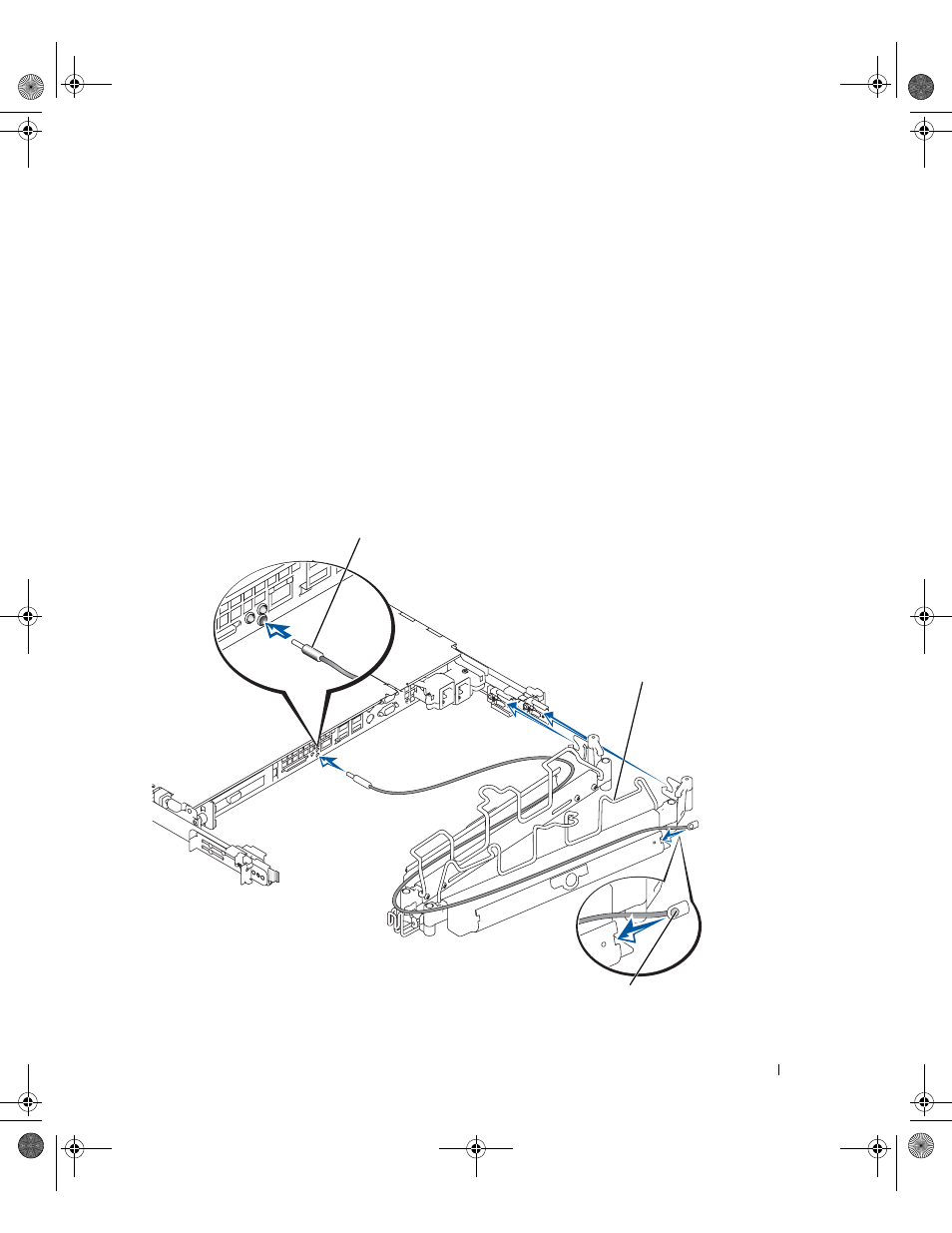

F i g u r e 1 - 9 . O p e n i n g t h e W i r e C o v e r s
status-indicator cable plug
wire covers in
open position
status indicator
