CSX400 Configuration with QuickSET
CSX400 and CSX400-DC User’s Guide 83
Wide Area E1 Configuration Window
The Wide Area (E1) configuration window shown in Figure 28 displays after clicking on the
Next>> button in either the Ethernet 1 and 2 configuration window or the Wide Area Frame Relay
Time Slot and PPP configuration windows, depending on whether you have installed one or two
WPIMs in the CSX400, and what order you are configuring them.
This section explains how to configure the CSX400 E1 WAN interface using QuickSET.

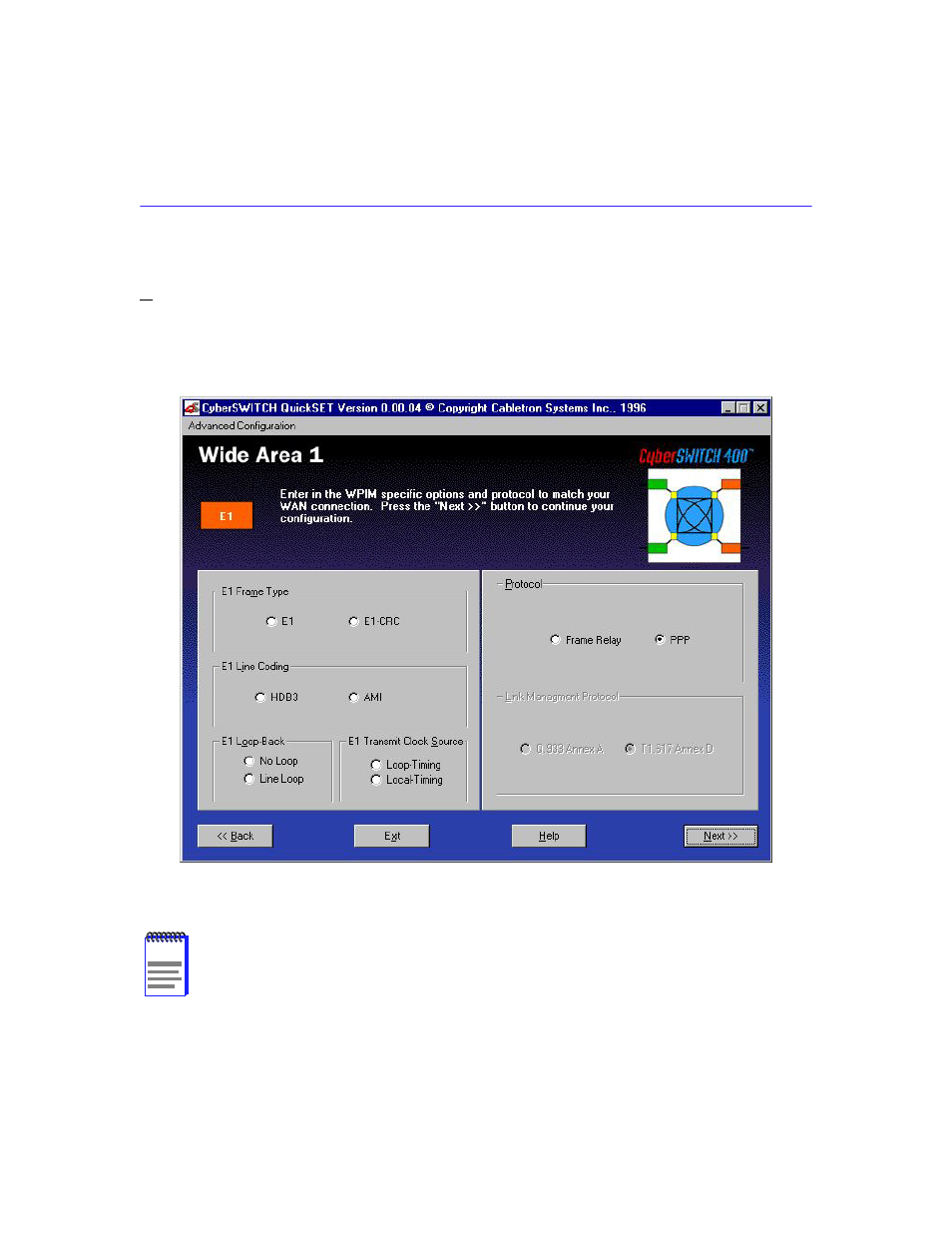

Figure 28 Wide Area E1 Configuration Window
NOTE
The service provider determines the settings for the following fields. Consult the
service provider for the correct settings.
