Installation
CSX400 and CSX400-DC User’s Guide 67
4. Locate the four 6-32 x 3/8-inch flathead cover replacement screws in the rackmount kit. Use
these screws to attach the rackmount brackets to the CSX400-DC as shown in
Figure 18 .

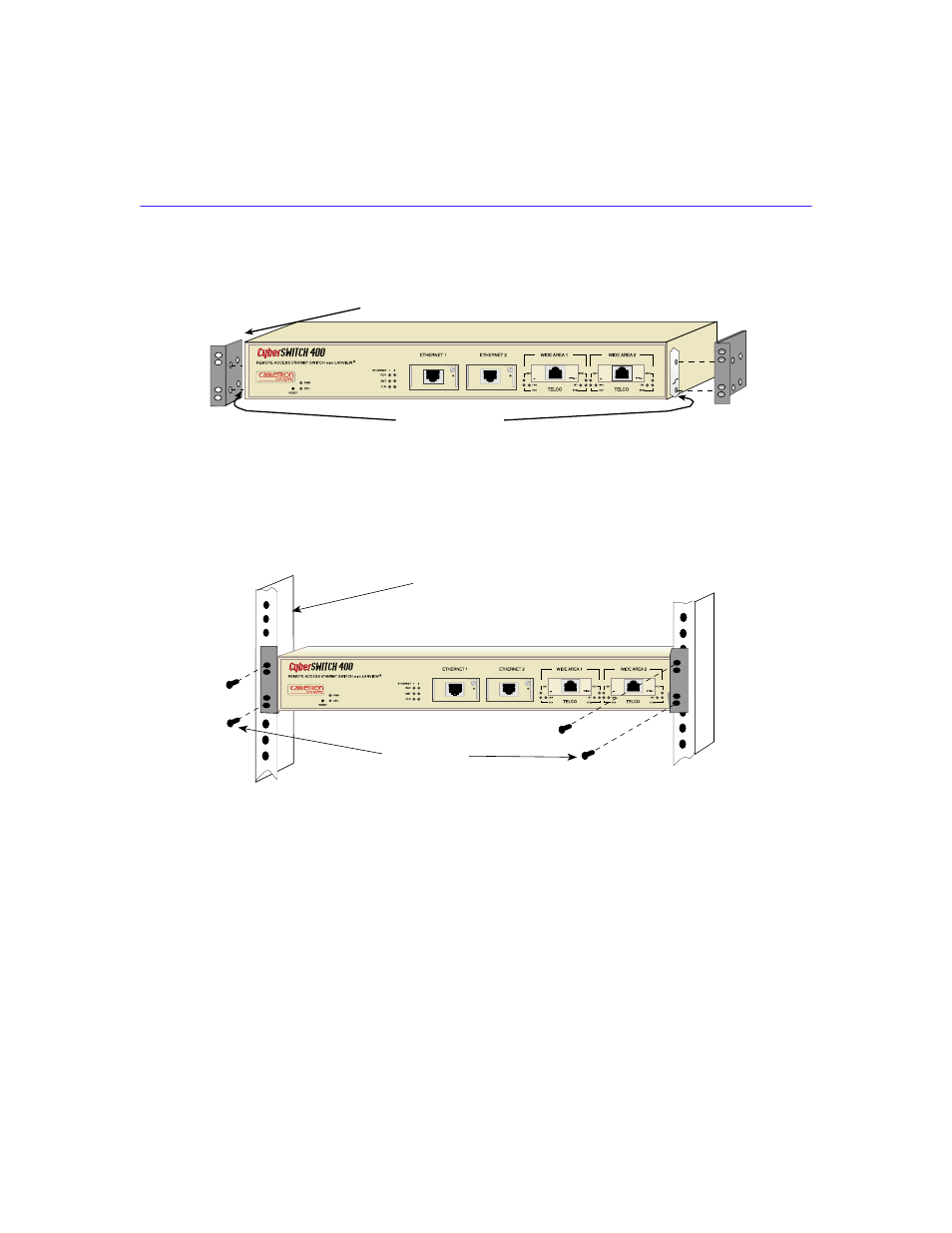

Figure 18 Installing the Rackmount Brackets
5. Position the CSX400 between the vertical frame members of the 19-inch rack.
6. Fasten the CSX400-DC with thread-forming screws as shown in Figure 19 .
Figure 19 Installing the CSX400 and CSX400-DC in a Rack
Rackmount Brackets (2)
Remove Paint
Screws (4)
19-Inch Rack
