CSX400 Configuration with QuickSET
CSX400 and CSX400-DC User’s Guide 105
Bridging and Routing (WAN Frame Type) Configuration Window
The second Bridging and Routing (WAN Frame Type) window shown in Figure 38 displays after
clicking on the Next>> button at the bottom of the first Bridging and Routing configuration
window. This window is used to select a WAN Frame Type for each interface.

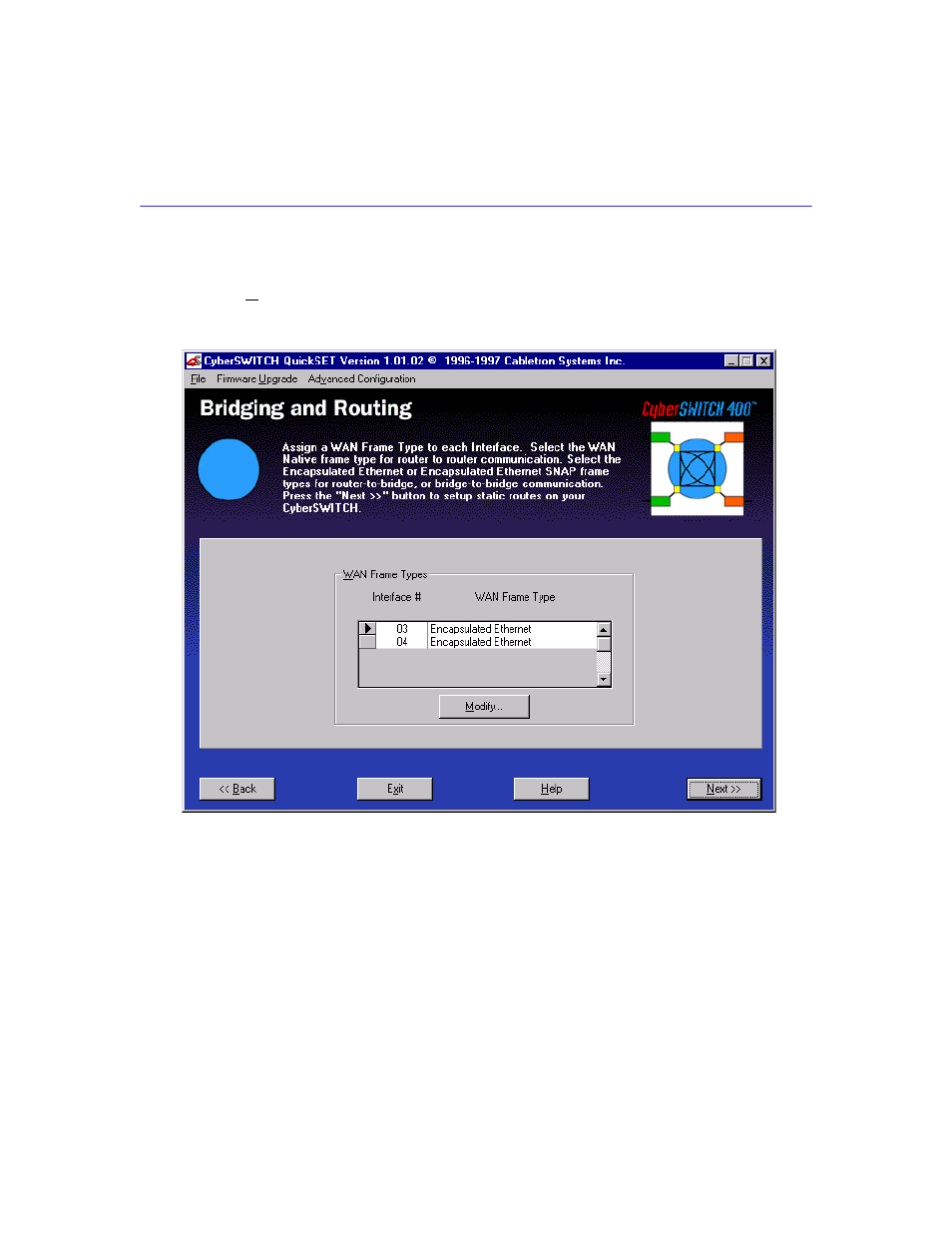

Figure 38 Bridging and Routing (WAN Frame Type) Configuration Window
The Bridging and Routing window displays fields for each interface number and its associated
WAN Frame Type. Select the WAN Native frame type for router to router communication. Select
the Encapsulated Ethernet or Encapsulated Ethernet SNAP frame types for router-to-bridge, or
bridge-to-bridge communication.
