Wide area t1 configuration window – Cabletron Systems Cabletron CyberSWITCH CSX400 User Manual
Page 94
CSX400 Configuration with QuickSET
80
CSX400 and CSX400-DC User’s Guide
Wide Area T1 Configuration Window

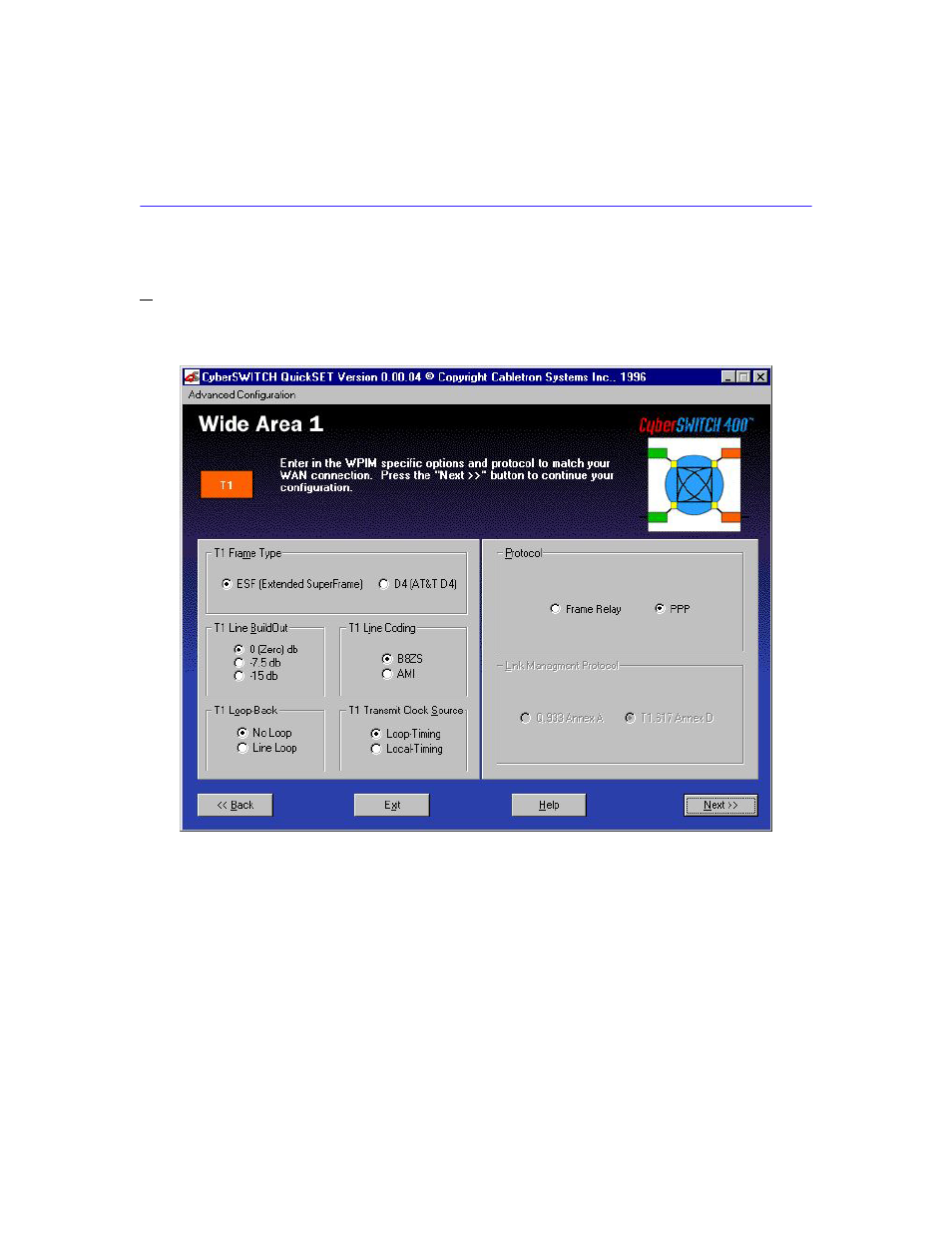

The Wide Area T1 configuration window shown in
displays after clicking on the
Next>> button in either the Ethernet 1 and 2 configuration window or the Wide Area Frame Relay
Time Slot and PPP configuration windows, depending on whether you have installed one or two
WPIMs in the CSX400, and in what order you are configuring them.
Figure 27
Wide Area T1 Configuration Window
